Finisher Adapter Kit D375
D014/D015/D078/D079 1-100 SM

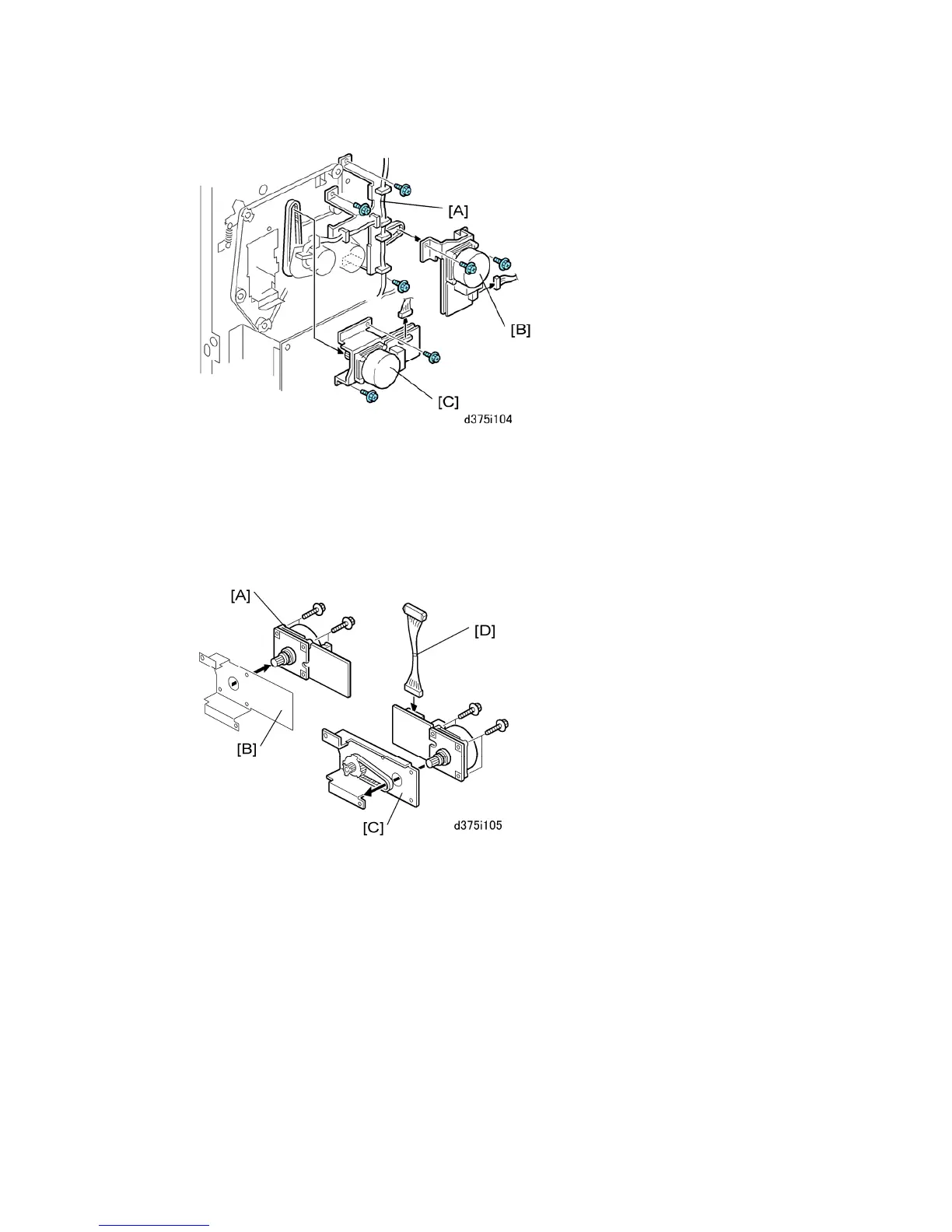

3. Remove:
[A] Harness T-bracket screws ( x3).
Remove the screws only, not the bracket.
[B] Lower transport motor assembly ( x 2, x1)
[C] Upper transport motor assembly ( x 2, x1)
4. For both the upper and lower transport motors:
Remove the motor [A] from its original bracket [B] ( x 2)
Attach the motor to the new bracket [C] ( x 2).
Attach the new harness [D] ( x 1).
5. Discard the original brackets.
The new brackets and harnesses are provided in the finisher adapter accessory kit.
The brackets are identical.
