Finisher Adapter Kit D375
SM 1-101 D014/D015/D078/D079
Installation

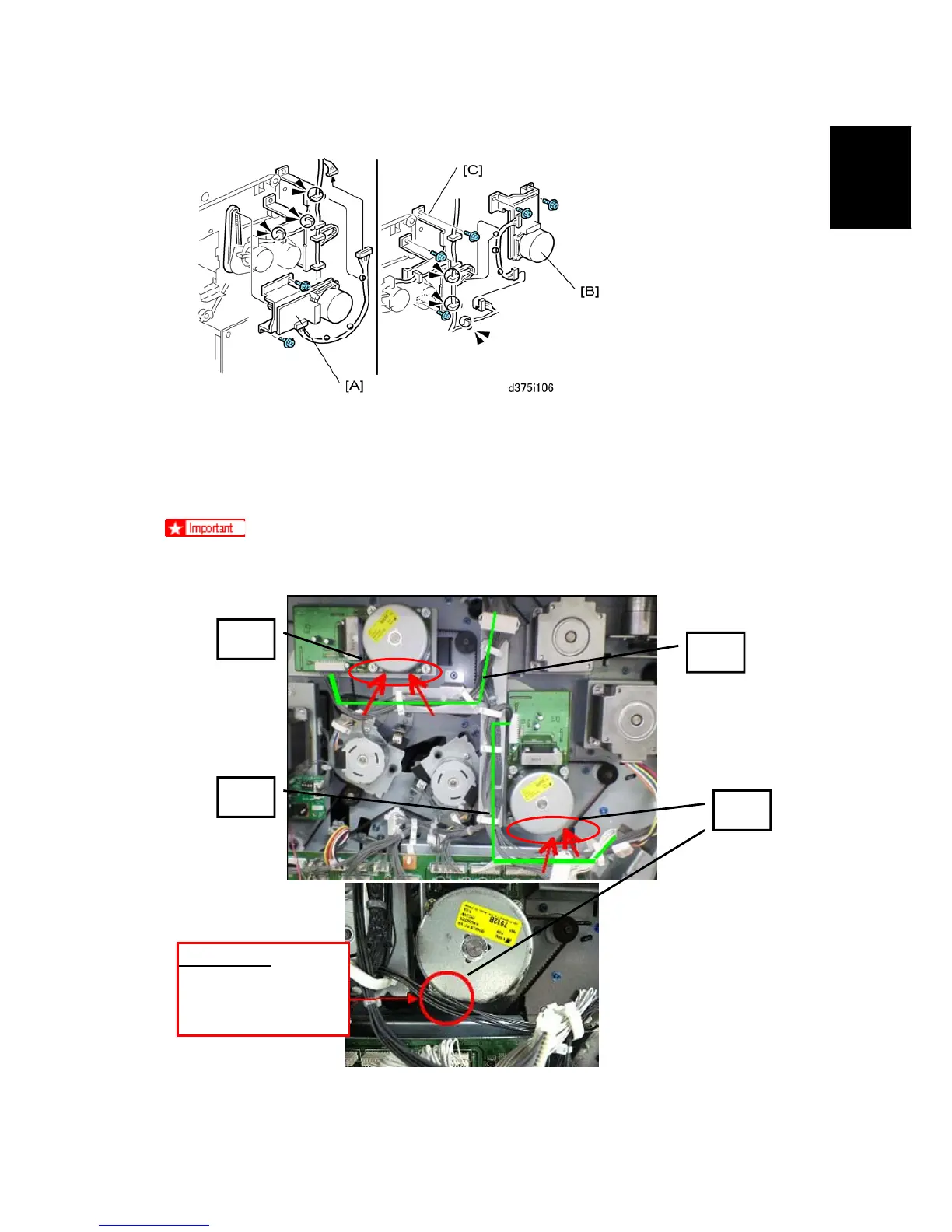

6. Attach the upper transport motor [A] assembly as shown, with the motor pointing to the
right ( x2, x1, = x3).
7. Attach the lower transport motor assembly as shown, with the motor pointing down [B]
( x2, x1, = x3).
Make sure to route the harness along lines [B] and [C] in the photos. If you do not, the
harness may touch the motors ([A] and [D]), which can damage or disconnect the harness.
[A]
[B]
[C]
[D]
INCORRECT
The harness is touching
the motor.
⇒
Rev. 03/2008
