Finisher Adapter Kit D375
D014/D015/D078/D079 1-102 SM
8. Reattach the harness T-bracket screws [C] ( x3) that were removed earlier.
9. Open the front door.

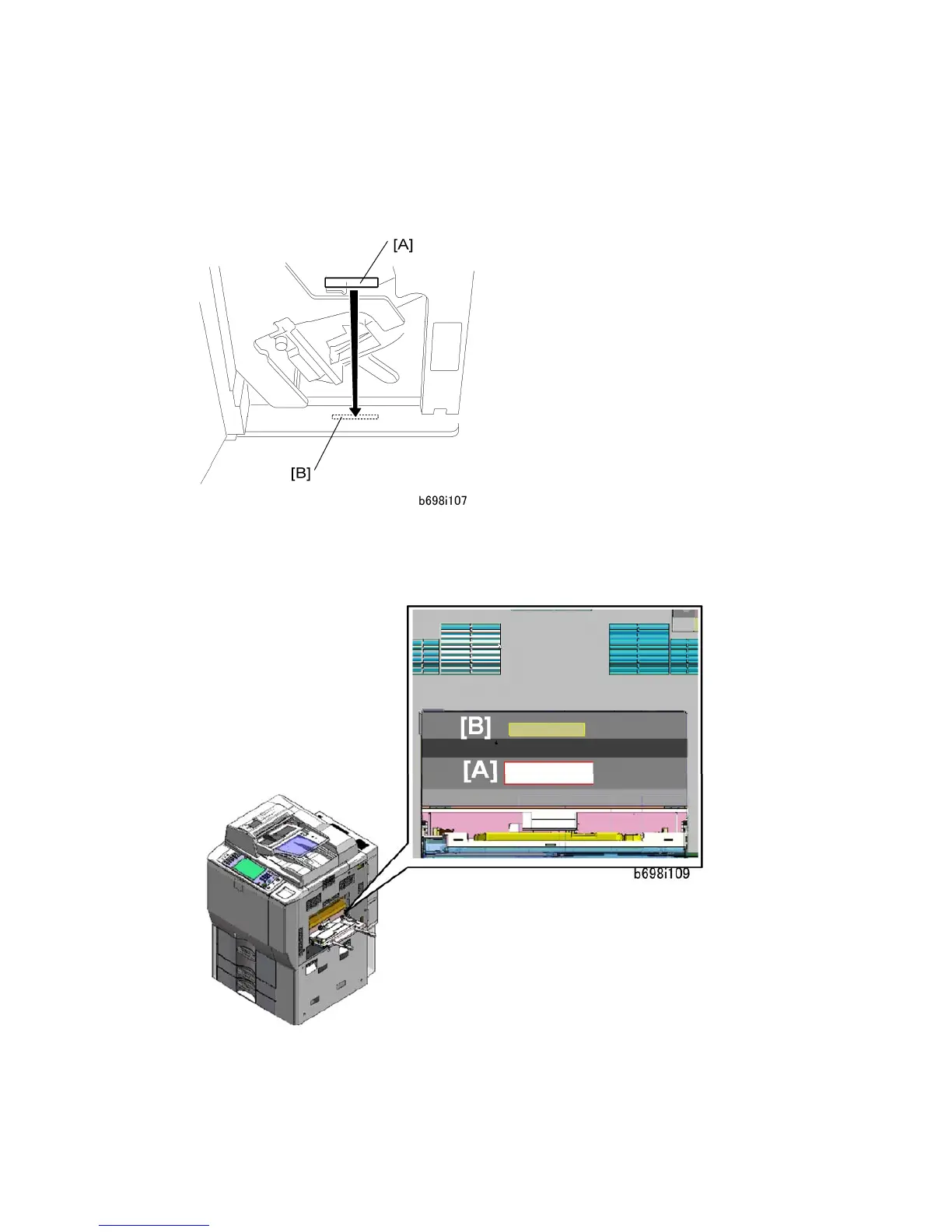

10. Attach the serial number decal [A] below the finisher serial number decal [B] attached
to the front bottom support of the frame.
11. On the right side of the machine, attach the FCC Class A decal [A] below the copier
serial number decal [B]. (North America Only)
Rev. 03/2008
