Ricoh D014 - Page 205

Punch Unit B831
SM 1-113 D014/D015/D078/D079
Installation

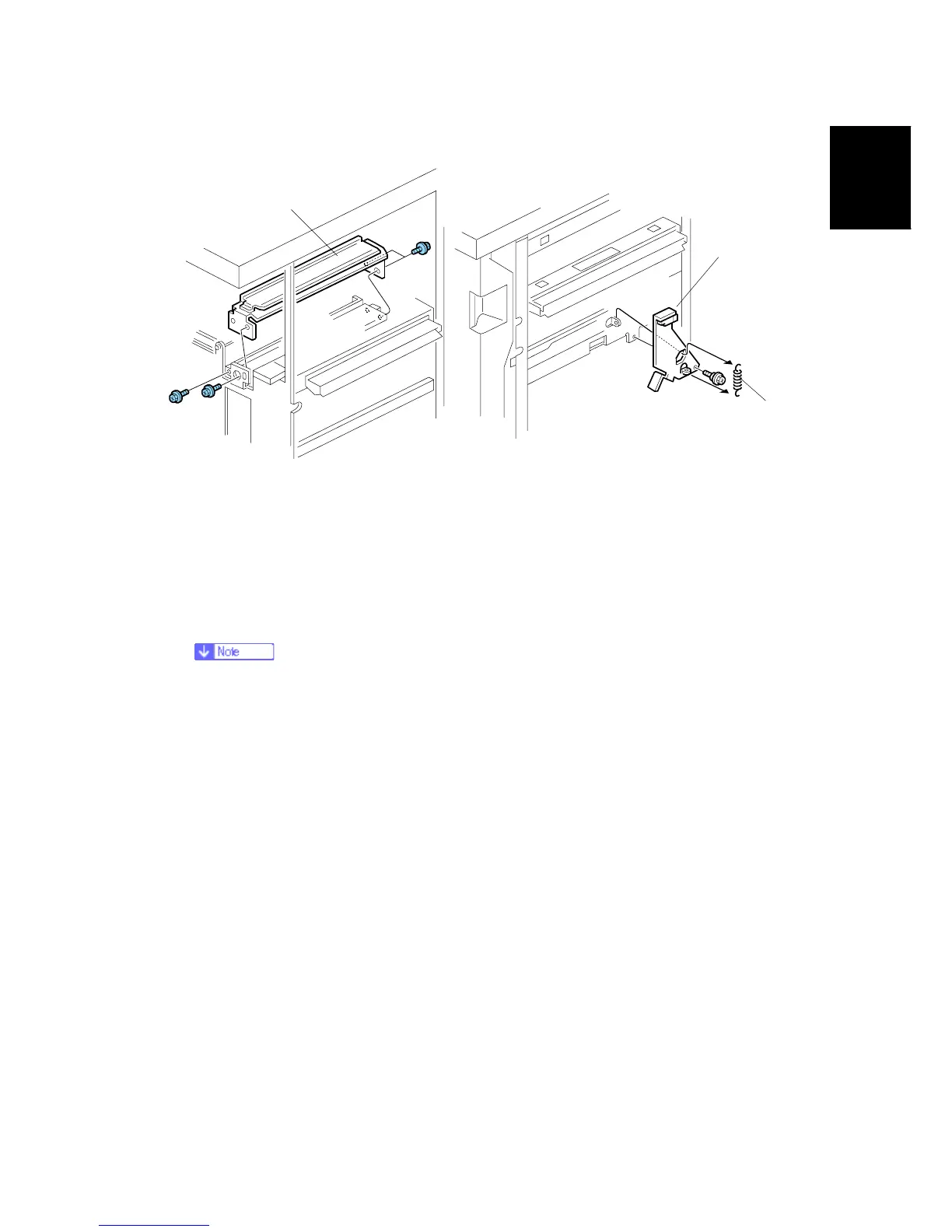

8. Remove the paper guide [A] (Screw x 4).
9. Install the sensor arm [B] (Screw x 1, small step screw (M3 x 4).
Make sure that the sensor arm swings freely on the step screw.
10. Attach the spring [C].
B831I104.WMF
B831I106.WMF
[A]
[B]
[C]
Rev. 03/2008
