PCU
D014/D015/D078/D079 3-60 SM

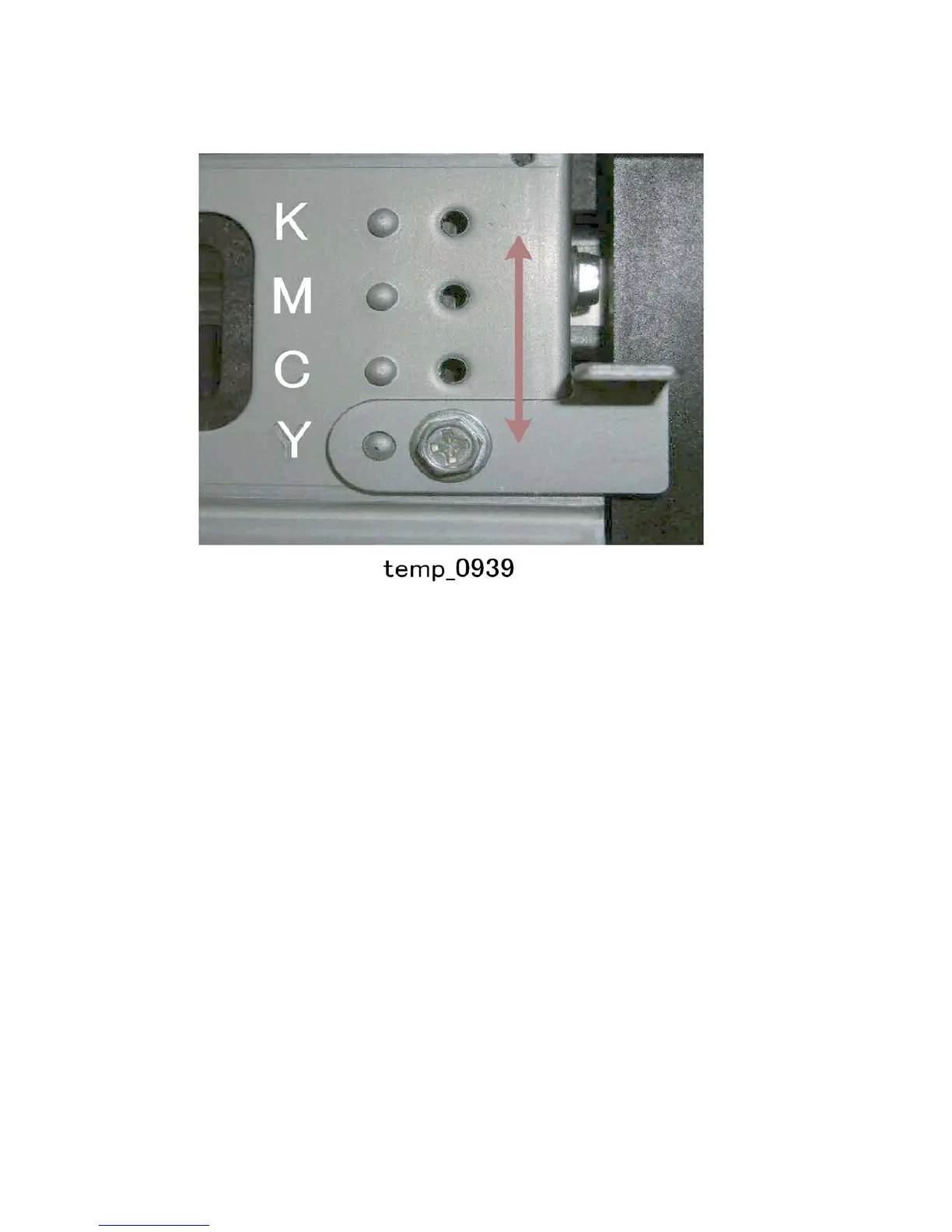

3. Remove the screw and set the plate to the correct position for the PCU to be replaced.
This adjustment prevents the PCU from being installed in the wrong position.
4. Install the new PCU in the machine.
