GUI reference
R&S
®
ZNB/ZNBT
401User Manual 1173.9163.02 ─ 62

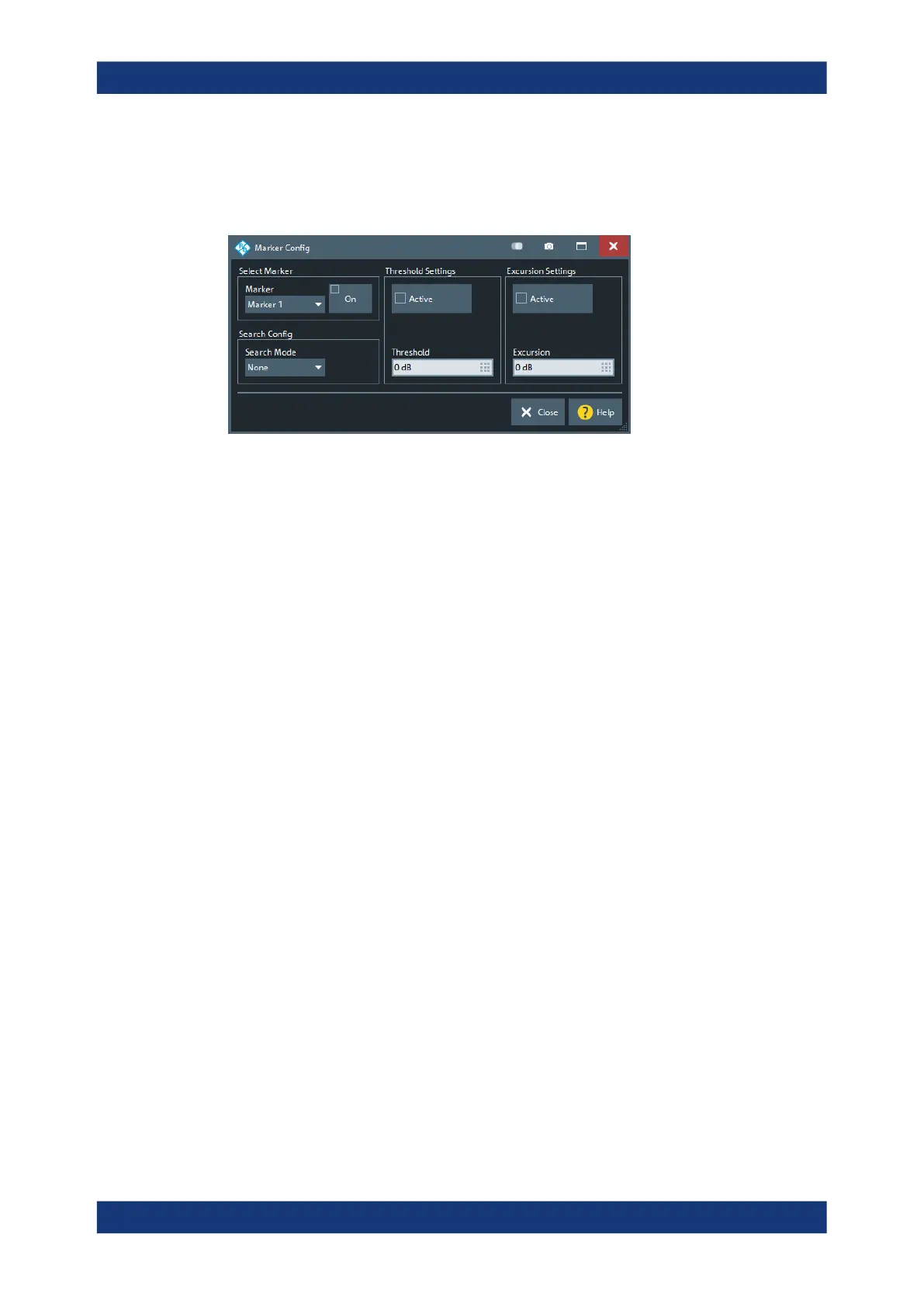

Access:
Trace – [Marker] > "Marker Search" > "Marker Config..."
Trace – [Marker] > "Multiple Peak" > "Marker Config..."
Select Marker
Allows you to select the related marker and to activate or deactivate it.
Remote command:
CALCulate<Chn>:MARKer<Mk>[:STATe]
Search Config
Allows you to select the Target Search Mode of the selected marker.
Remote command:
CALCulate<Chn>:MARKer<Mk>:FUNCtion:EXECute
CALCulate<Chn>:MARKer<Mk>:REFerence:FUNCtion:EXECute
Threshold Settings
Defines a threshold for (single) peak searches and activates it.
If "Active", only maxima above and minima below the configured "Threshold" are con-
sidered.
The unit is derived from the active trace format and cannot be modified. Changing the
trace format resets the "Threshold" to a format-specific default value.
Remote command:
CALCulate<Chn>:MARKer<Mk>:THReshold
CALCulate<Chn>:MARKer<Mk>:REFerence:THReshold
CALCulate<Chn>:MARKer<Mk>:THReshold:STATe
CALCulate<Chn>:MARKer<Mk>:REFerence:THReshold:STATe
Excursion Settings
Defines a minimum excursion for peak searches and activates it.
If "Active", only peaks with an excursion above the configured "Excursion" value are
considered. By definition, the excursion of a peak is the smaller of the absolute differ-
ences in measured values from the adjoining peaks of opposite polarity.
The unit is derived from the active trace format and cannot be modified. Changing the
trace format resets the "Excursion" to a format-specific default value.
Marker softtool
