GUI reference
R&S
®
ZNB/ZNBT
571User Manual 1173.9163.02 ─ 62
Access: Channel – [Channel Config] > "Port Config" > "Multiple DUTs..."
Related information
See Chapter 4.1.4.3, "Parallel measurements on multiple DUTs", on page 94.
For the R&S ZNB, the "Parallel Measurement" is automatically configured when
"Enabled" is selected, as shown in Figure 5-47.
A R&S ZNB/ZNBT with two internal sources allows parallel measurements with "Fre-
quency Offset", which can be configured in the corresponding tab on the right.

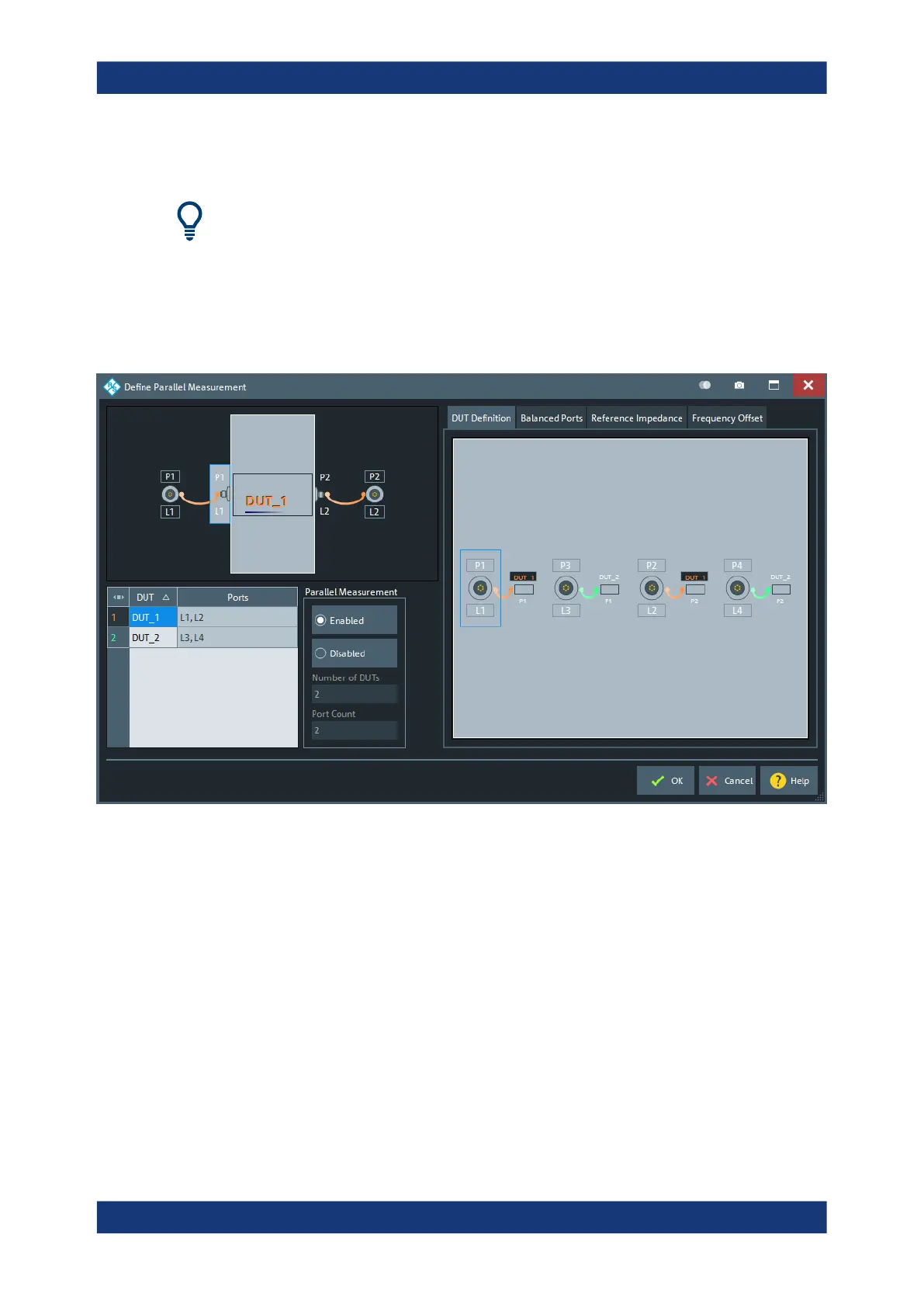

Figure 5-47: Define Parallel Measurement (R&S ZNB)
For the R&S ZNBT, the table and controls in the lower left part allow you to define the
available DUTs along with their physical ports. The visualization in the upper left part
shows the ports and connectivity of the selected DUT (DUT perspective). The "DUT
Definition" tab to the right visualizes the VNA perspective.
Channel Config softtool
