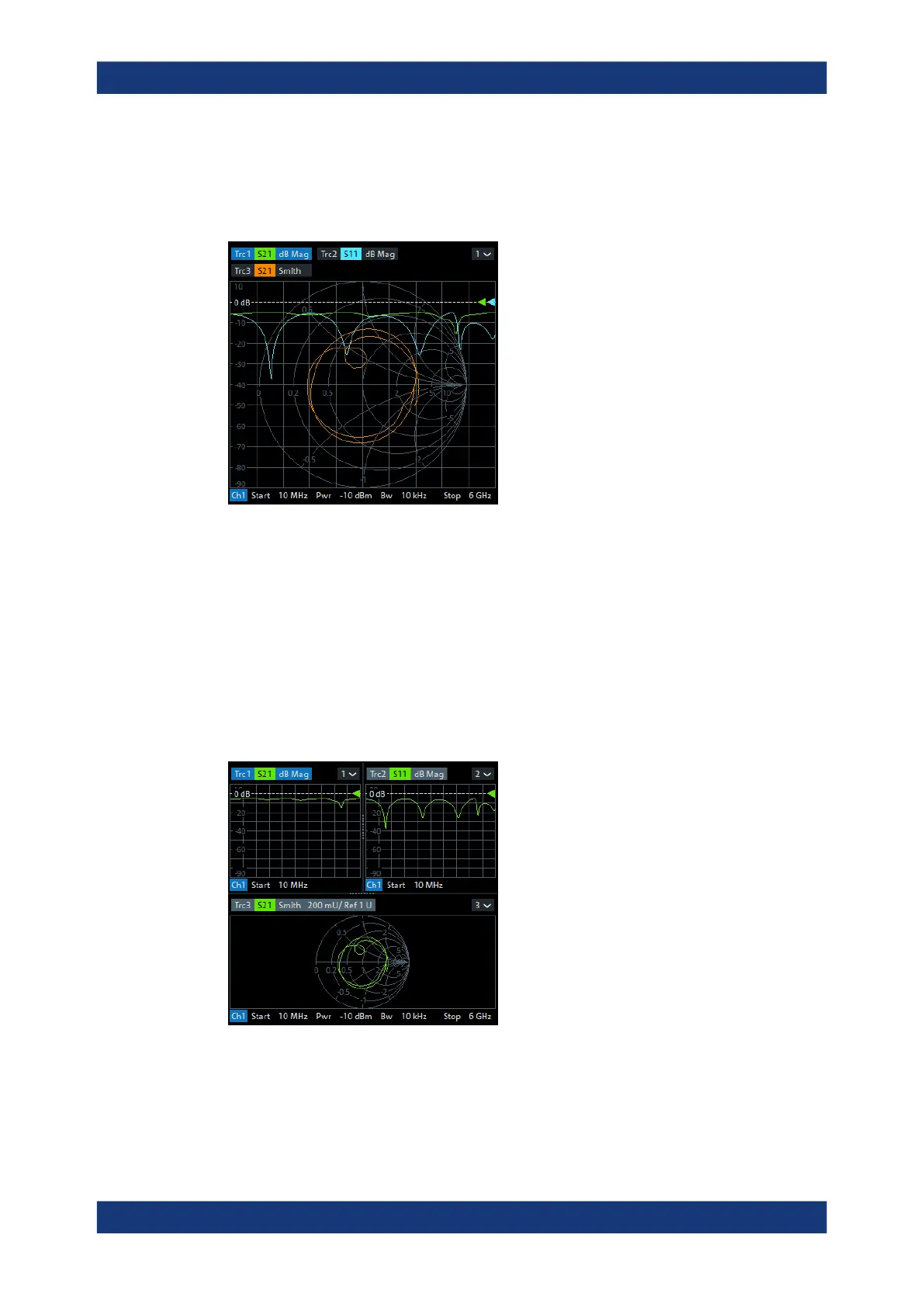

Overlay All
Places all traces in a single diagram area which is maximized to occupy the whole
screen. This function is available irrespective of the trace format and the channel set-
tings; it is even possible to overlay Cartesian and complex diagrams.
The active trace and active channel is highlighted. The scaling of the axes corresponds
to the active trace.
Tip: To hide all traces except one, activate the context menu of the respective trace
name segment in the trace list and select "Hide all other Traces".
Remote command:
DISPlay:LAYout:OVERlay
Split All
Creates a separate diagram for each trace in the active recall set and automatically
arranges those diagrams in the diagram area. Existing diagrams are deleted during
this process.
Tip: To vary the size and position of the diagram areas, drag and drop the separating
frames or use the functions in the "Split" tab.
Remote command:
DISPlay:LAYout:SPLit
Display softtool
