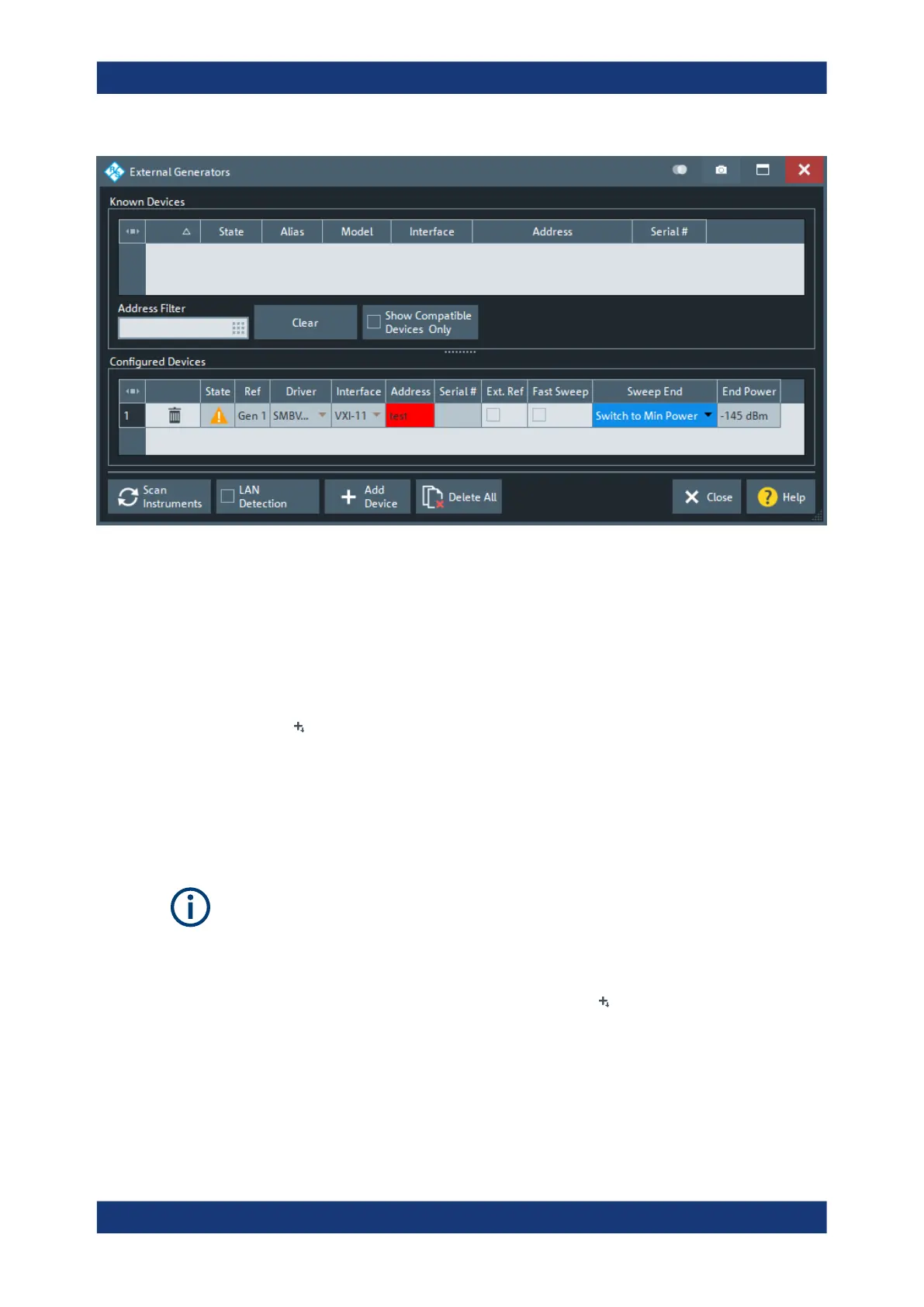

The configuration of a new external generator involves the following steps:
1. Connect the generator to your R&S ZNB/ZNBT using a LAN (VXI-11), GPIB, or
USB interface.
2. If the generator is connected via LAN, enable "LAN detection"
3. Click "Scan Instruments" and wait until the generator appears in the table of
"Known Devices".
4.
Click to copy the generator into the list of configured devices.
If the R&S ZNB/ZNBT fails to detect a connected generator,
► Click "Add Device" to define the interface type and address.
The R&S ZNB/ZNBT can auto-detect the instrument type (driver) and the serial
number of the connected generator.
To control external devices via GPIB, the pre-installed RS Visa library (visa32.dll)
must be replaced by the NI Visa library.
Known Devices
Table with all generators that the analyzer detects to be on line (i.e. connected and
switched on). "Scan Instruments" refreshes the table; copies a detected instrument
to the table of "Configured Devices".
Remote command:
n/a
Show Compatible Devices
If checked, only supported generators are displayed in the list of Known Devices.
