A redefinition of the physical VNA ports (see Chapter 5.18.5.2, "Define Physical Ports
dialog", on page 791) causes a factory reset and deletes all switch matrix RF connec-
tions. So the RF configuration for switch matrices has to be done after the port redefini-
tion.
Add

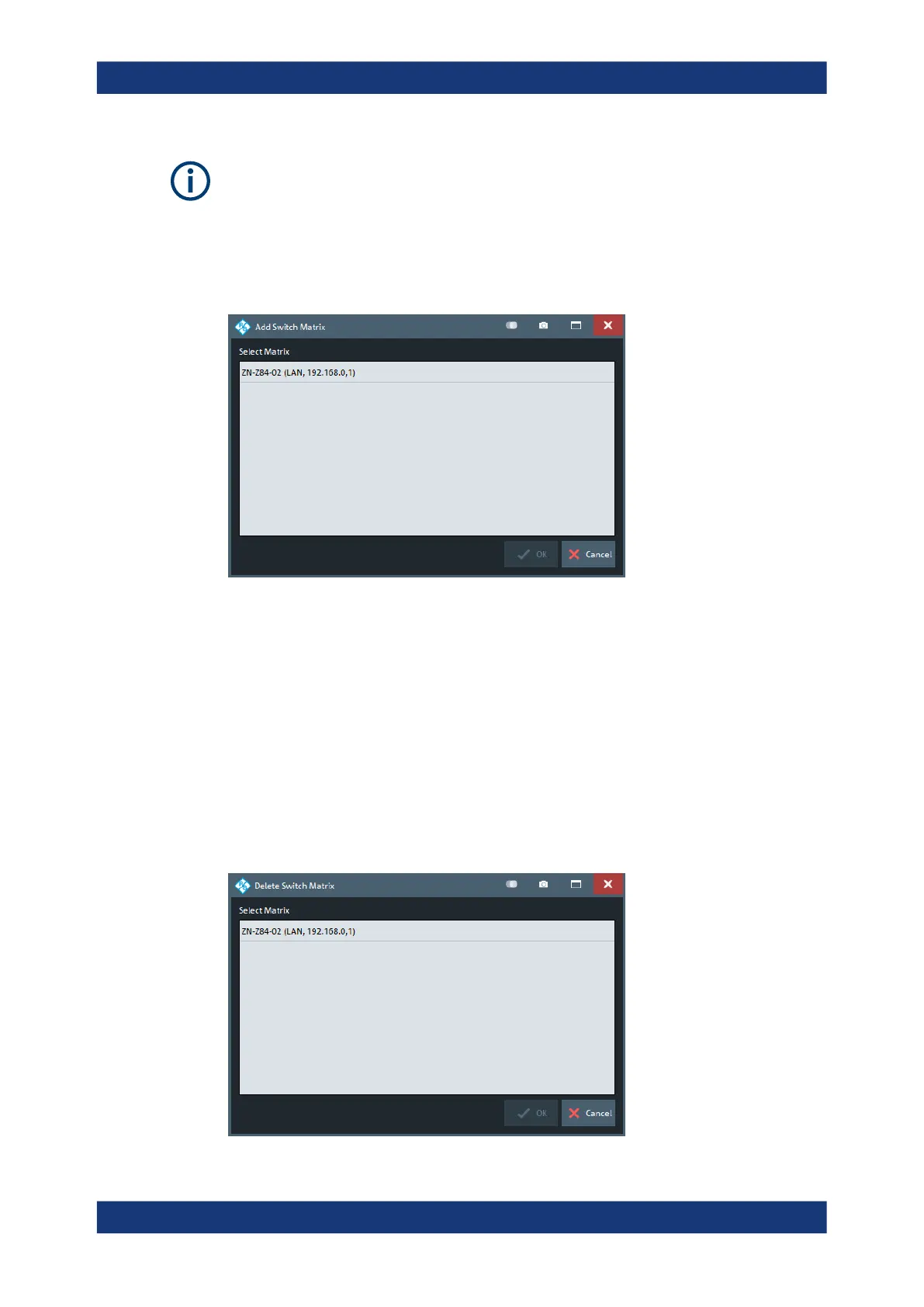

Opens the "Add Switch Matrix" dialog:
Select the required matrices and tap "OK" to add them to the RF connection configura-
tion or tap "Cancel" to quit the dialog without adding a switch matrix to the RF connec-
tion configuration
Note:
●
This dialog is shown automatically, in case no matrix has been added to the RF
connection configuration yet.
●
If the RF configuration already contains all registered switch matrices, the "Add"
button is disabled.
Remote command:
n.a.
Delete
Opens the "Delete Switch Matrix" dialog:
Setup softtool
