Process Control
D014/D015/D078/D079 6-54 SM

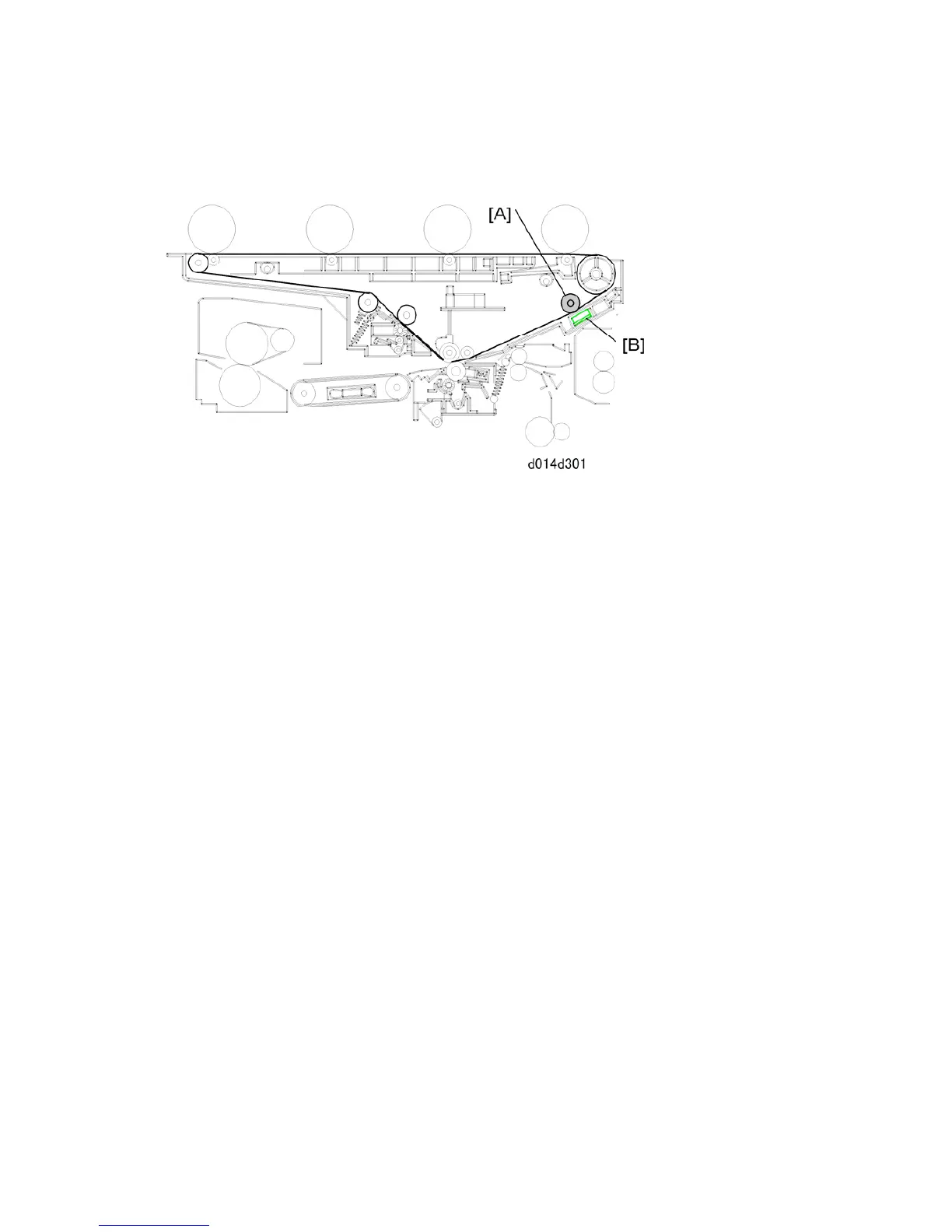

Location of the MUSIC Sensors
The three MUSIC sensors [A] are arranged in a straight line below the ITB.
A roller [B] opposite the sensors pushes the transfer belt against these sensors. This
ensures that the sensors read the patterns accurately.
