Process Control
SM 6-55 D014/D015/D078/D079
Detailed
Descriptions
How is MUSIC Done?

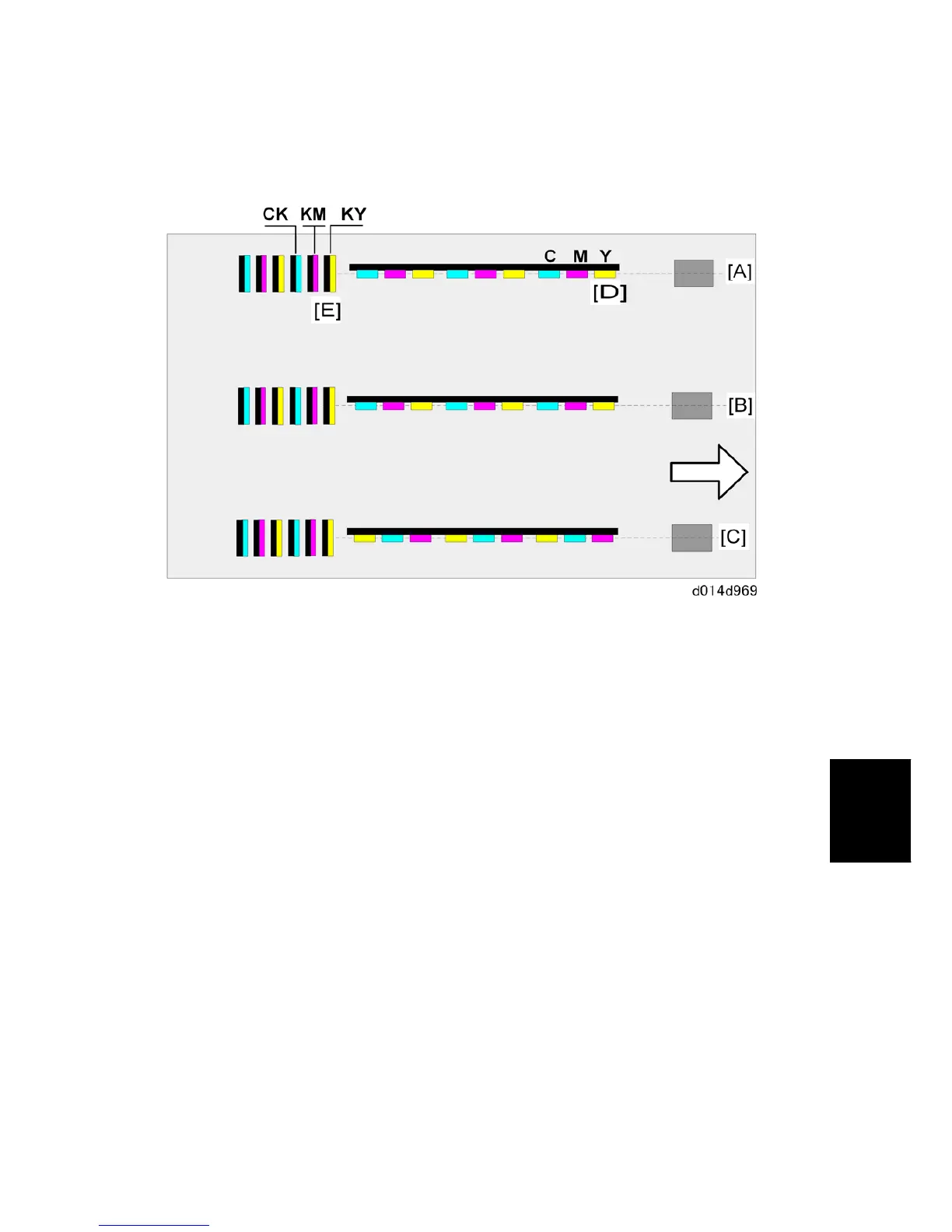

[A]: Rear MUSIC sensor
[B]: Center MUSIC sensor
[C]: Front MUSIC sensor
[D]: Main scan MUSIC patterns
[E]: Sub scan MUSIC patterns
The MUSIC sensors [A], [B], and [C] read the MUSIC patterns from the ITB.
The main scan MUSIC sensor pattern [D] consists of patches for each color (M, C, Y)
beside the black (K) color patch. The sub scan MUSIC sensor pattern [E] consists of
patches for each color (M, C, Y) above a black (K) patch.
To Next Page
