R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
286User Manual 1173.9163.02 ─ 62
●
s (single-ended, unbalanced)
It is also possible to display "raw" single-ended S-parameters within the same channel:
after setting the S-Parameter type to "S" any pair of (used) physical ports can be
selected.
Remote command:
CALCulate<Ch>:PARameter:MEASure
CALCulate<Ch>:PARameter:MEASure:SENDed
CALCulate<Ch>:PARameter:SDEFine
CALCulate<Ch>:PARameter:SDEFine:SENDed
S<out><in>
Selects one of the four elements of the standard 2-port S-parameters as a measured
quantity for the active trace.
Remote command:
CALCulate<Ch>:PARameter:MEASure "<Trace_Name>", "S11" | "S12" |
"S21" | "S22"
CALCulate<Ch>:PARameter:SDEFine "<Trace_Name>", "S11" | "S12" |
"S21" | "S22"
All S-Params
With the active logical ports distributed to m DUTs with n
1
, ..., n
m
ports, respectively, the
analyzer creates n
1
2
+ ... + n
m
2
diagrams and displays the full set of S-parameters, one
in each diagram. The diagrams are arranged as an n x n grid.

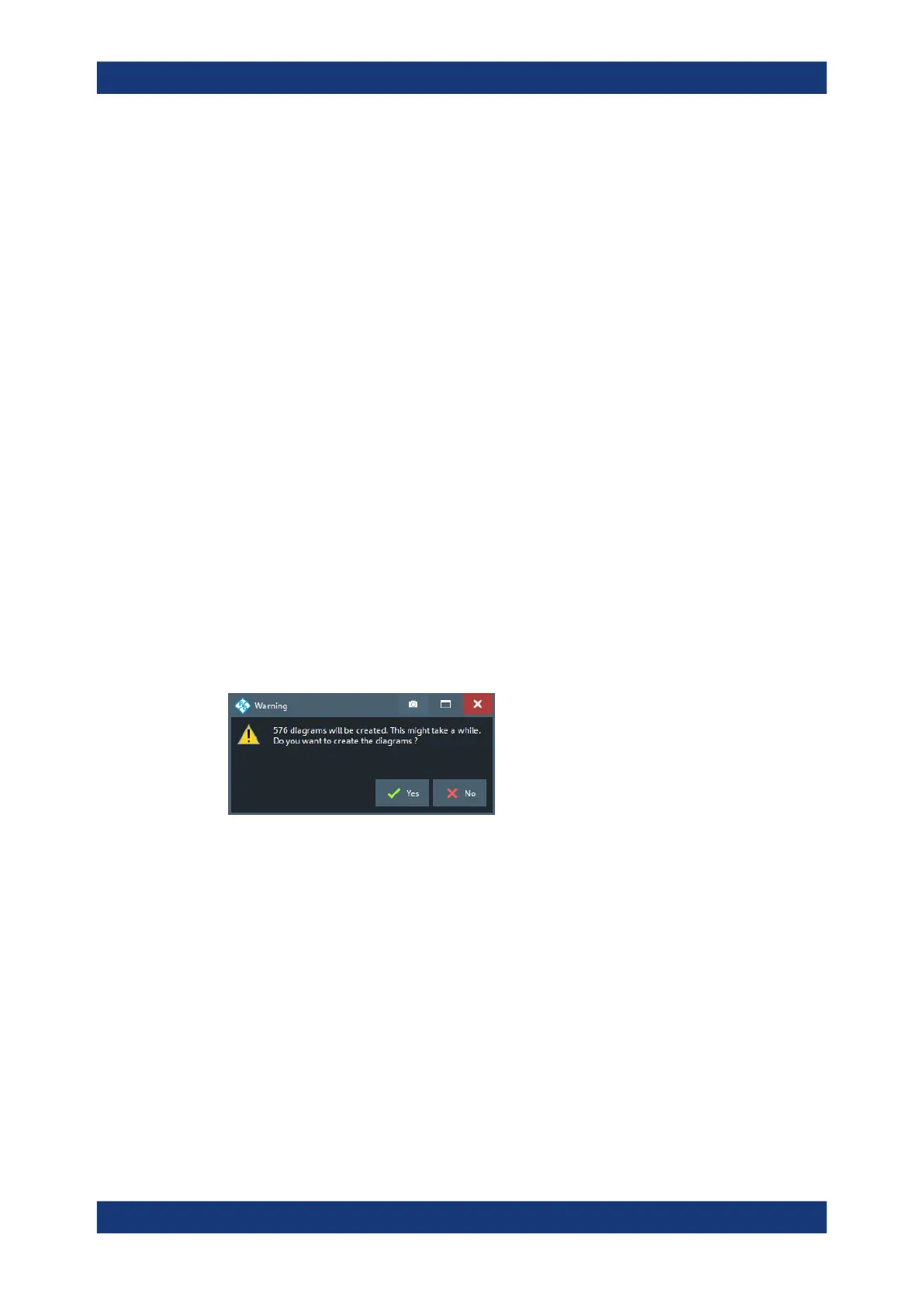

If "All S-Params" would result in more than 100 diagrams being created, a warning dia-
log is opened that lets you cancel the diagram creation.
Remote command:
CALCulate<Ch>:PARameter:SDEFine
CALCulate<Ch>:PARameter:DEFine:SGRoup
S-Param Wizard...
Opens a dialog that guides you through the setup of a standard multi-port S-parameter
measurement in a frequency sweep. See Chapter 5.2.1.2, "S-Parameter Wizard",
on page 287.
Dialog and opener button are not available for R&S ZNBT, or if a switch matrix is con-
figured.
Balanced Ports...
Opens a dialog that allows you to enable/disable physical ports and to define logical
ports (balanced or unbalanced) in the active channel. See Chapter 5.2.1.3, "Balanced
Ports dialog", on page 289.
Meas softtool
