The notation for ratios follows the usual scheme of the vector network analyzer:
●
The a-waves are the outgoing/transmitted waves at the analyzer's test ports.
●
The b-waves are the incoming/measured waves.
●
The source port for the stimulus signal must be specified in addition.
●
The port number range covers all test ports of the analyzer.

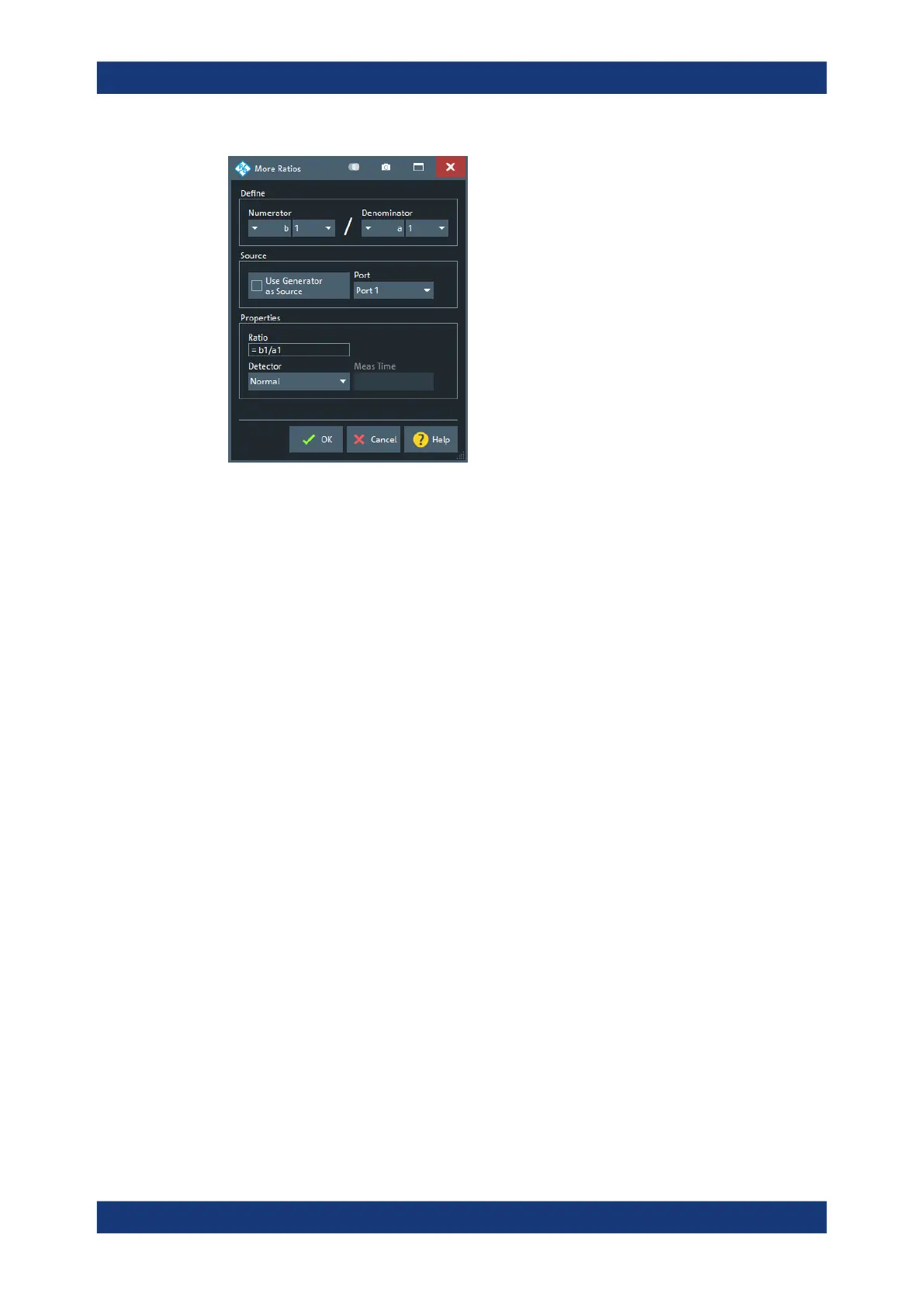

Numerator
Selects the type (left pull-down list) and the port number assignment (right pull-down
list) of the wave that forms the numerator of the ratio.
Remote command:
CALCulate<Ch>:PARameter:MEASure "<Trace_Name>", "B2/A1" | ...
CALCulate<Ch>:PARameter:SDEFine "<Trace_Name>", "B2/A1" | ...
Denominator
Selects the type (left pull-down list) and the port number assignment (right pull-down
list) of the wave that forms the denominator of the ratio.
Remote command:
CALCulate<Ch>:PARameter:MEASure "<Trace_Name>", "B2/A1" | ...
CALCulate<Ch>:PARameter:SDEFine "<Trace_Name>", "B2/A1" | ...
Use Generator as Source
If selected, the "Port" control lists the external generators. Otherwise it lists the ana-
lyzer ports.
External generators must be configured explicitly in the "External Generators" dialog
before they appear in the list. See also Chapter 4.7.28, "External generators",
on page 267.
Port
Allows you to select the source for the stimulus signal.
●
"None" or "Port <Pt>", if Use Generator as Source is not checked
●
"Gen <i>" if "Use Generator as Source" is checked
Meas softtool
