Remote command:
CALCulate<Chn>:STATistics:NLINear:COMP[:STATe]
CALCulate<Chn>:STATistics:NLINear:COMP:LEVel
CALCulate<Chn>:STATistics:NLINear:COMP:PHASe
CALCulate<Chn>:STATistics:NLINear:COMP:RESult?
CALCulate<Chn>:STATistics[:STATe]:AREA
Reference Value
This control is only available if compression point statistics are calculated. It selects the
reference value ("small signal value") for the compression point calculation.
"First Point"
(default)
uses the value at the first point of the selected evaluation range as
the reference value (see Chapter 5.5.8.2, "Evaluation Range dialog",
on page 360)
"Selected
Marker"
uses the value at a selectable marker as the reference value (see
"Selected Marker" on page 359)
"Range"
uses the average value in a configurable "Ref. Range" on page 359
as the reference value
"Defined
Value"
allows to specify the reference value manually (see "Defined Value"
on page 360)
Remote command:
CALCulate<Chn>:STATistics:NLINear:COMP:REFerence
Selected Marker
This button is only visible if "Selected Marker" is used as Reference Value. It allows
you to select the marker whose value shall be used as the reference ("small signal
value") for the compression point calculation.
Remote command:
CALCulate<Chn>:STATistics:NLINear:COMP:RMARker
Ref. Range
This button is only visible if "Range" is used as Reference Value.

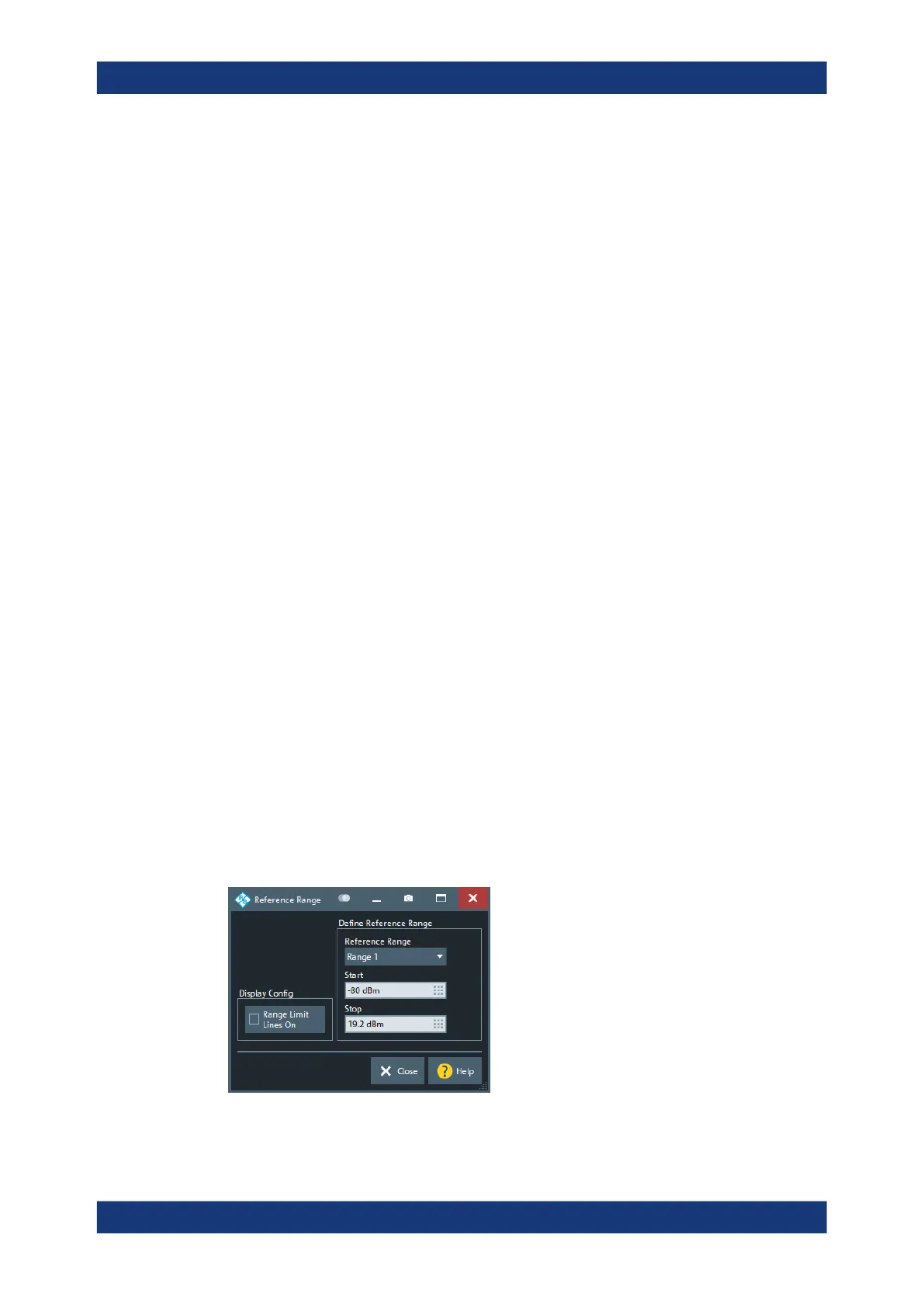

It opens the "Reference Range" dialog that allows you to configure the sweep range
whose average value shall be used as the reference ("small signal value") for the com-
pression point calculation.
Trace Config softtool
