GUI reference
R&S
®
ZNB/ZNBT
633User Manual 1173.9163.02 ─ 62

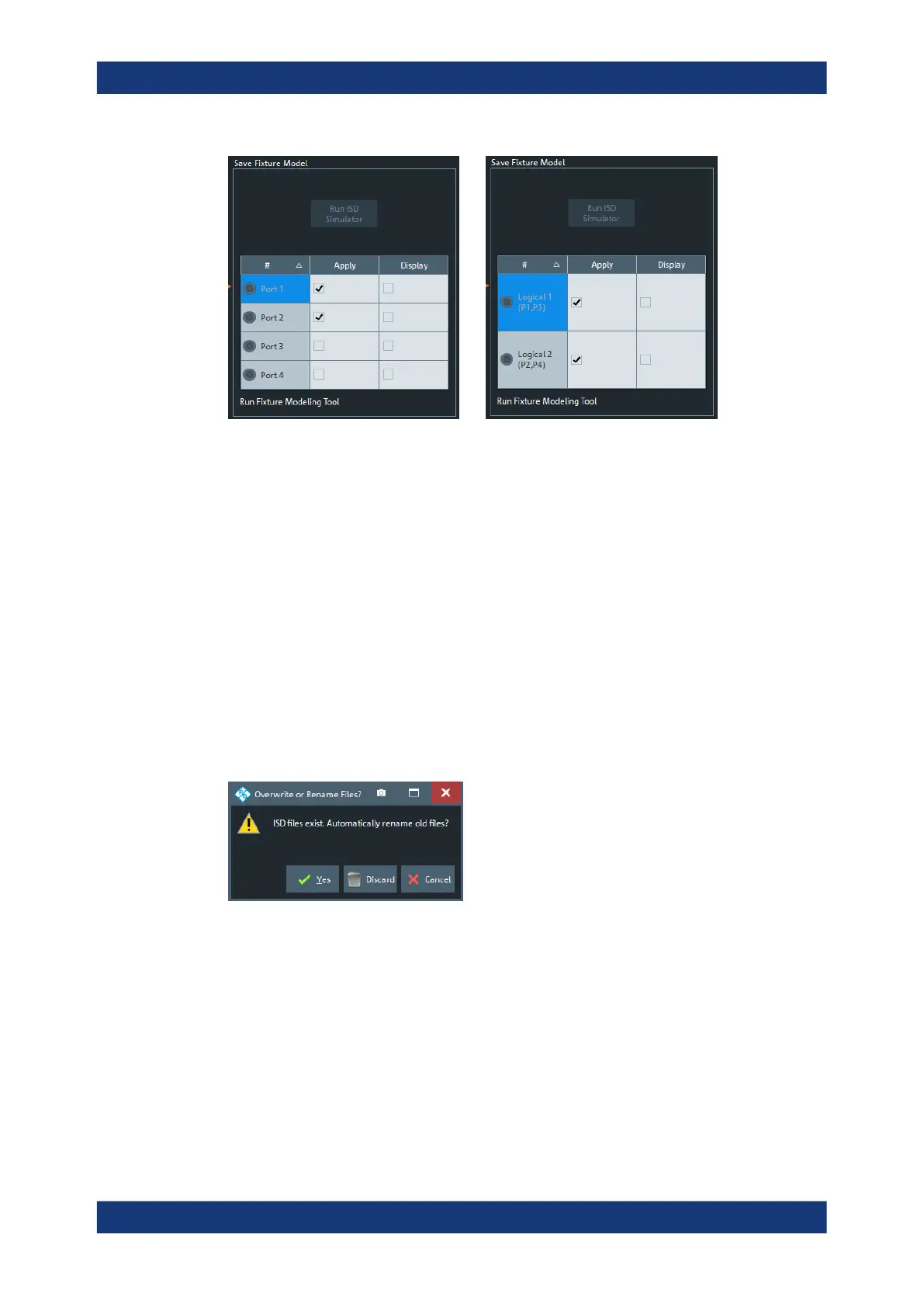

Figure 5-62: Save Fixture Model section
left = single-ended
right = balanced
Run <Fixture Modeling Tool>
Runs the selected fixure deembedding tool.
This button is only active, if both:
●
the test coupon measurement finished successfully or the test coupon data were
successfully loaded from file (see Chapter 5.13.5.2, "Measure Coupon",
on page 629)
●
the measurement of DUT + test fixture finished successfully (see Chapter 5.13.5.3,
"Measure DUT + Test Fixture", on page 631)
The resulting Touchstone files (S parameters of the lead-ins, the lead-outs, and the de-
embedded DUT) are written to C:\Users\Public\Documents\Rohde-Schwarz\Vna
\Embedding. If result files with the same names already exist, you can decide whether
you want to rename or overwrite them.
If running the deembedding tool causes errors, the <Deembedding Tool> Errors dialog
provides additional information.
Note: For ISD first a batch task file Embeddingconfig_znb.abt is created and then
the tool is run in batch mode (see the ISD User Guide).
Remote command:
CALCulate:FMODel:ISD:RUN:RUN
CALCulate:FMODel:SFD:RUN:RUN
CALCulate:FMODel:EZD:RUN:RUN
Offset Embed softtool
