R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
647User Manual 1173.9163.02 ─ 62
Background information
Refer to Chapter 4.6.2.7, "Ground loop de-/embedding", on page 216.
If the "Fixture Simulator" is disabled for the related channel (see "Fixture Simulator"
on page 549), this tab is inactive, i.e. all controls except the "Overview" button are
grayed out.
Overview
See "Overview" on page 616.
Type
Switches between "Deembedding" and "Embedding" network definition.
All Deembedding Activated
Deactivates or activates all deembeddings (single-ended, balanced, port set, ground
loop) for the active channel, if any.
This control is only visible if Type = "Deembedding".

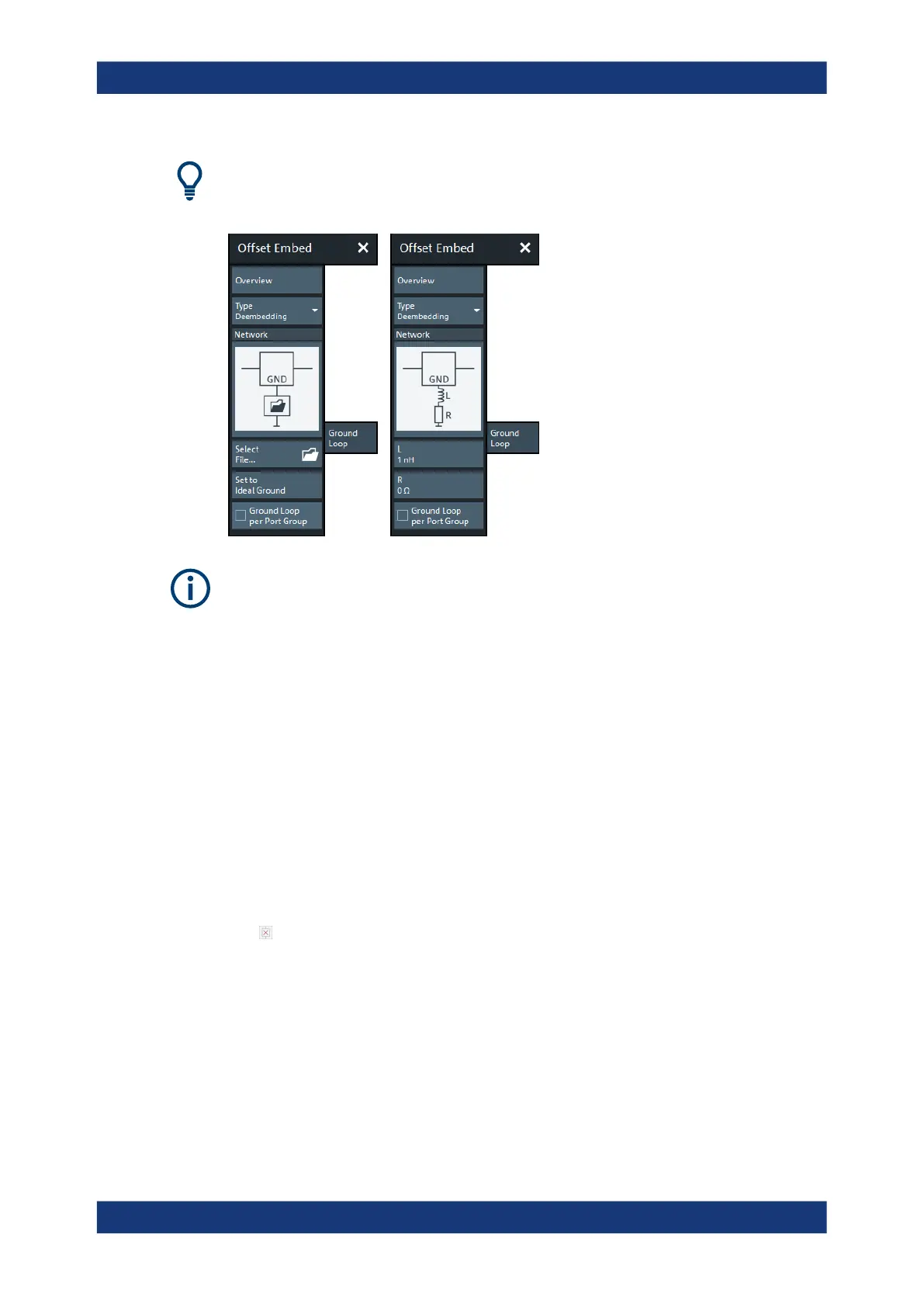

Network
The graphical list contains all available 1-port networks:
The symbol selects "no network" and disables ground loop de-/embedding.
The "1-Port Data" network is defined by imported S-parameter data; see Select File...
The remaining networks (Shunt L and Shunt C) are defined by lumped elements
whose parameters are displayed below the graphical list.
Tip:
●
Drag and drop the network symbols in horizontal or vertical direction to switch to
the next symbol.
●
Use the Conductance in Embedding Networks switch to change from resistances
in "Capacitor in parallel with resistor" model to conductances and vice versa.
Offset Embed softtool
