Command reference
R&S
®
ZNB/ZNBT
1013User Manual 1173.9163.02 ─ 62

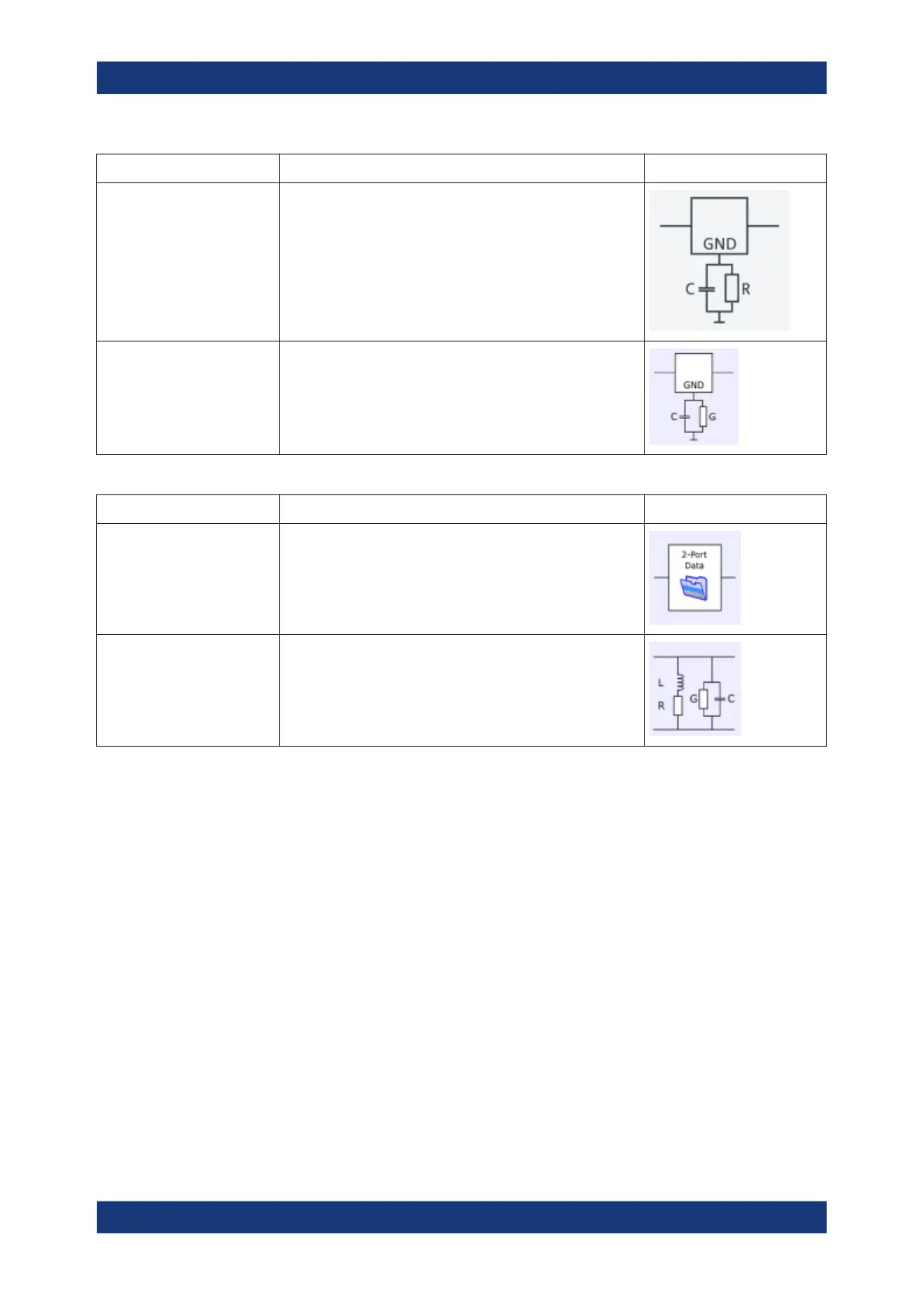

Parameter Circuit model Pictogram
SC Shunt C
SG Shunt C
Table 7-10: Circuit models for differential match embedding
Parameter Circuit model Pictogram
FIMPort File import, generic 2-port (no circuit model)
SHLC Shunt L, shunt C
CALCulate<Ch>:TRANsform:VNETworks:BALanced:DEEMbedding<LogPt>:
PARameters:C<Cmp>........................................................................................ 1015
CALCulate<Ch>:TRANsform:VNETworks:BALanced:DEEMbedding<LogPt>:
PARameters:DATA<Port>................................................................................... 1016
CALCulate<Ch>:TRANsform:VNETworks:BALanced:DEEMbedding<LogPt>:
PARameters:G<Cmp>........................................................................................1017
CALCulate<Ch>:TRANsform:VNETworks:BALanced:DEEMbedding<LogPt>:
PARameters:L<Cmp>.........................................................................................1018
CALCulate<Ch>:TRANsform:VNETworks:BALanced:DEEMbedding<LogPt>:
PARameters:R<Cmp>........................................................................................ 1018
CALCulate<Ch>:TRANsform:VNETworks:BALanced:DEEMbedding<LogPt>[:STATe]......... 1019
CALCulate<Ch>:TRANsform:VNETworks:BALanced:DEEMbedding<LogPt>:TNDefinition.. 1020
CALCulate<Ch>:TRANsform:VNETworks:BALanced:EMBedding<LogPt>:PARameters:
C<Cmp>........................................................................................................... 1020
CALCulate<Ch>:TRANsform:VNETworks:BALanced:EMBedding<LogPt>:PARameters:
DATA<Port>...................................................................................................... 1021
CALCulate<Ch>:TRANsform:VNETworks:BALanced:EMBedding<LogPt>:PARameters:
G<Cmp>...........................................................................................................1022
