R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
706User Manual 1173.9163.02 ─ 62

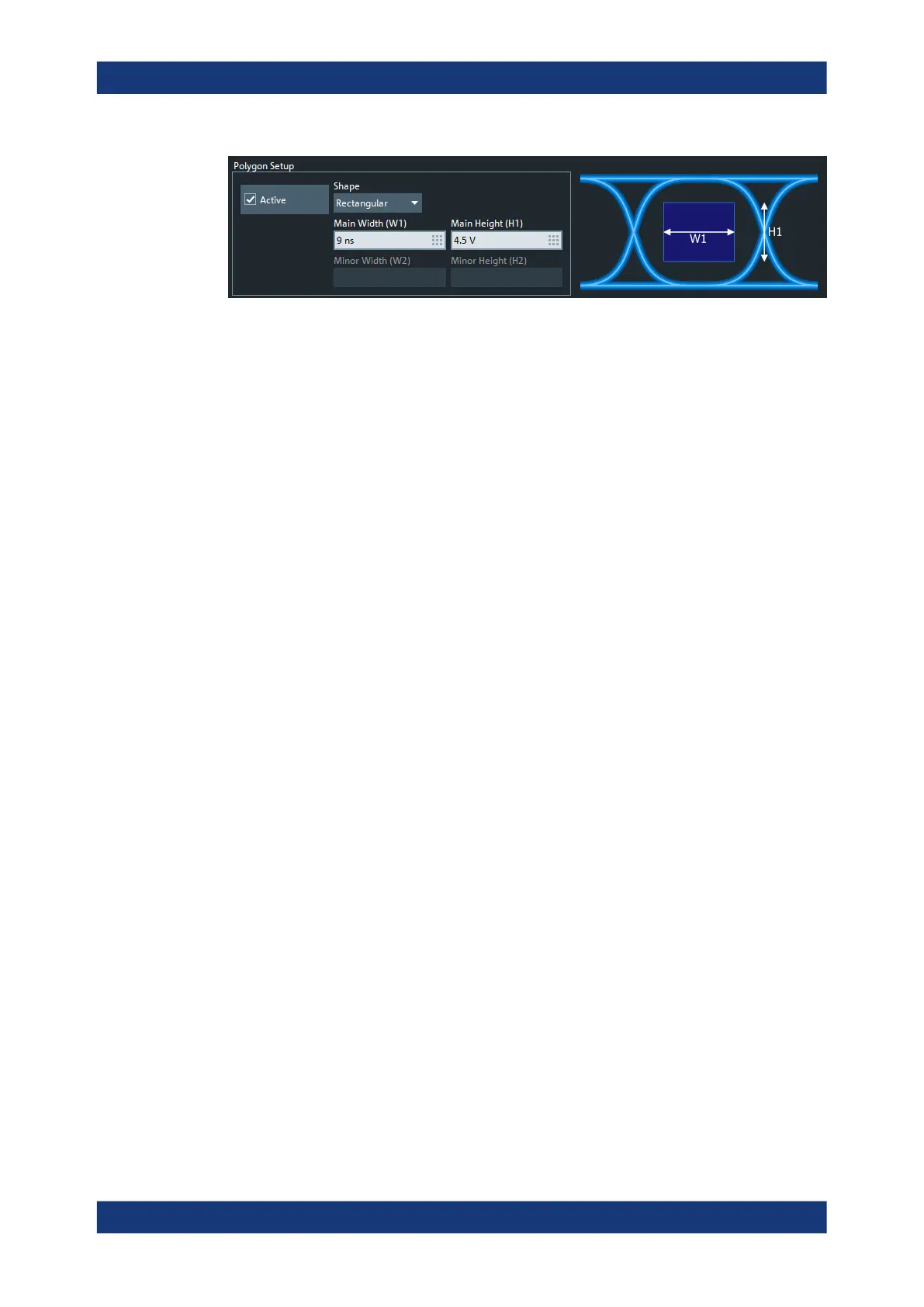

Figure 5-79: Center polygon setup: rectangle
The polygon is centered at the Mask Center.
Remote command:
CALCulate<Chn>:EYE:MASK:SHAPe:POLYgon:STATe
CALCulate<Chn>:EYE:MASK:SHAPe:POLYgon:TYPE
CALCulate<Chn>:EYE:MASK:SHAPe:POLYgon:HORizontal
CALCulate<Chn>:EYE:MASK:SHAPe:POLYgon:VERTical
Top/Bottom Setup
Defines and activates the top and bottom rectangles.
Both rectangles are horizontally centered at the Mask Center and also their vertical off-
sets are specified relative to this point.
Remote command:
CALCulate<Chn>:EYE:MASK:SHAPe:TOP:STATe
CALCulate<Chn>:EYE:MASK:SHAPe:TOP:HORizontal
CALCulate<Chn>:EYE:MASK:SHAPe:TOP:VERTical
CALCulate<Chn>:EYE:MASK:SHAPe:BOTTom:STATe
CALCulate<Chn>:EYE:MASK:SHAPe:BOTTom:HORizontal
CALCulate<Chn>:EYE:MASK:SHAPe:BOTTom:VERTical
Mask Center
Defines the center point of the eye mask:
●
The center polygon is centered at this point
●
The top and bottom rectangles are horizontally centered at the mask center and
also their vertical offsets are specified relative to this point.
Remote command:
CALCulate<Chn>:EYE:MASK:CENTer:HORizontal
CALCulate<Chn>:EYE:MASK:CENTer:VERTical
Test Settings
Allows you to set the absolute or relative number of mask violations that will result in a
mask fail condition.
Remote command:
CALCulate<Chn>:EYE:MASK:FAIL:CONDition
CALCulate<Chn>:EYE:MASK:VIOLation:TOLerance
CALCulate<Chn>:EYE:MASK:VIOLation:RATE
