OPERATING PRINCIPLES Printer Section Operating Principle 102
2.2.4 Paper Feed
This section explains and illustrates the main functional components that make up the
paper feed section. The components are divided into four blocks as follows based on
the basic configuration.
 MSI (Multi Sheet Inserter)
 Registration & FUSER
 500 Paper Feeder

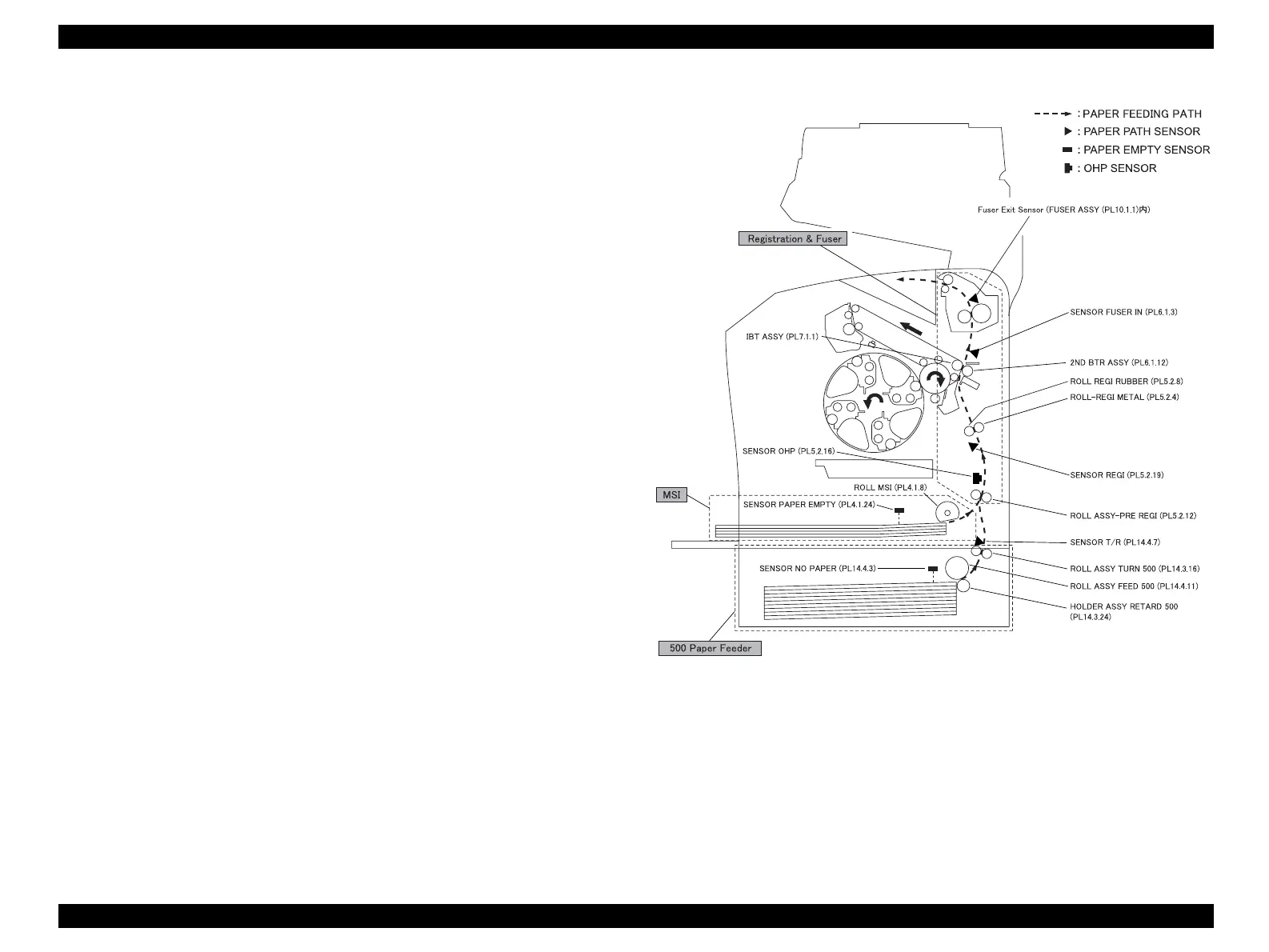

Figure 2-34. Paper Feed Path Layout
Leg_06_004RA
