EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 327
4.2.2.18 COVER INNER LOW
REMOVAL
1. Remove COVER ASSY RH. (p326)
2. Remove COVER ASSY LH. (p321)
3. Remove COVER MSI. (p317)
4. Remove COVER FRONT L and COVER FRONT ASSY U. (p318)
5. Remove the 2 screws (silver, with flange, 8 mm) fastening COVER INNER L to
the main unit.
6. Unhook the hook on the rear of COVER INNER L from the hole on the main unit,
and remove COVER INNER L.
REINSTALLATION
1. Match the hook on the rear of COVER INNER L with the hole on the main unit,
and attach COVER INNER L.
2. Fasten COVER INNER L to the main unit with the 2 screws (silver, with flange, 8
mm).
3. Attach COVER FRONT L and COVER FRONT ASSY U. (p318)
4. Attach COVER MSI. (p317)
5. Attach COVER ASSY LH. (p321)
6. Attach COVER ASSY RH. (p326)

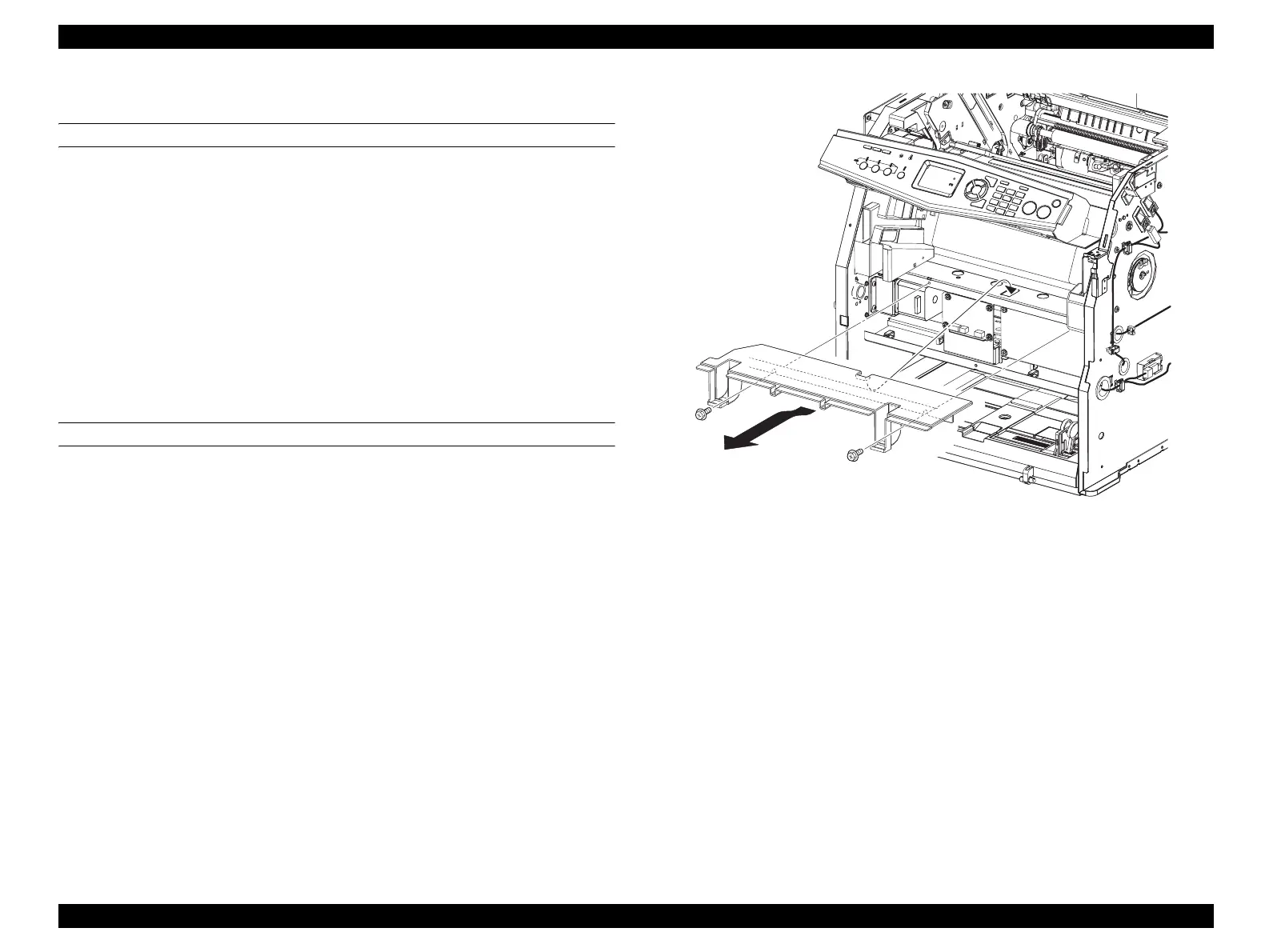

Figure 4-22. Removal of COVER INNER LOW
Leg_Sec03_186RB
5)
6)
5)
