Epson AcuLaser CX11 Service Manual

EPSON AcuLaser CX11/CX11F Revision B
33

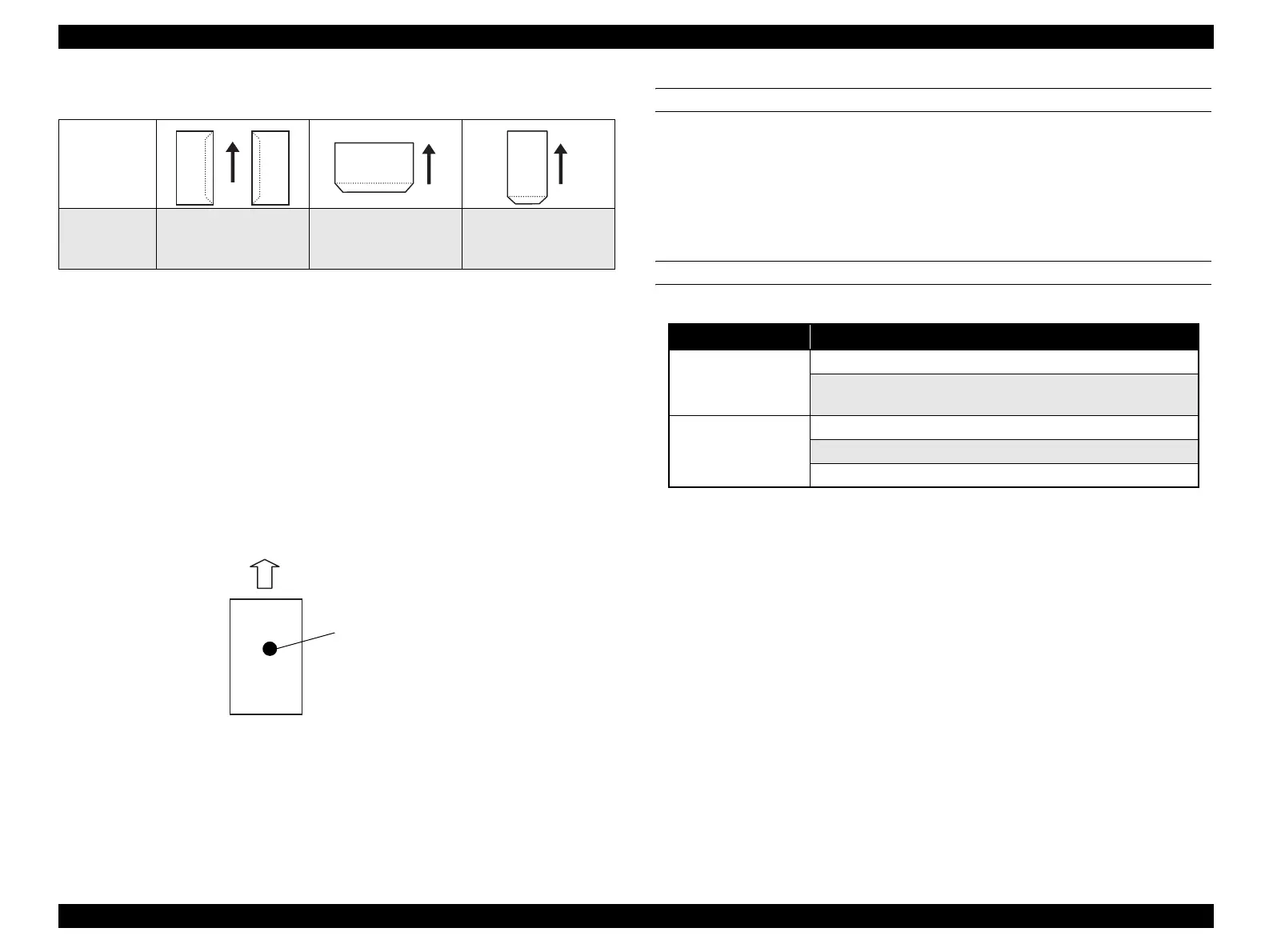

 Envelop Orientation
NOTE 1: Load envelopes in the MP tray with its print surface facing up
2: Image quality and feed is not guaranteed when printing on the back side
(flap side) of envelopes.
3: Envelopes with adhesive or tape are not available.
4: Load the envelop with its flap opened. If the length of the envelop is 110
mm or less when the flap is opened, the envelop cannot be used.
 Printing Surface Set Direction
Set paper with printing surface facing up. (for both MP tray and 500-sheet
cassette)
PAPER EJECT CAPACITY
250 sheets, Face down only
NOTE: Conditions for the capacity:
22 degrees C/55% RH, standard paper (simplex/duplex printing).
The print ratio is 5% for both B/W and color printing (With color
printing, 5% for each color).
CONSUMABLES AND PERIODIC REPLACEMENT UNIT
Note : For detailed specifications, refer to “1.2.2.5 Consumables/Periodic Replacement Unit”
(p37).
Paper feed
direcction
Envelopestype Yokei #0
Yokei #4
Yokei #6
*4
Chokei #3
Chokei #4
Kadokei #3
Printing surface
Paper feed direcction
Paper feed direction
Table 1-18. List of Consumables and Periodic Replacement Unit
Classification Replacement unit
Consumables Toner cartridges (Black, Cyan, Yellow, Magenta)
Photoconductor Unit
(with waste toner box)
Regular Replacement
Parts
FUSER ASSY
HOUSING ASSY-DEVE (Developer)
2ND BTR ASSY
