EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY ADF Section 507
4.4.2.5 SENSOR LEVER
REMOVAL
1. Remove the Scanner. (p306)
2. Remove the ADF Unit. (p481)
3. Remove the ADF COVER R. (p492)
4. Attach the PAPER GUIDE ASSY. (p526)
5. Remove the ADF COVER C. (p496)
6. Remove the ADF BASE ASSY. (p498)
7. Remove the left shaft of the SENSOR LEVER from the bearing and pull out the
other shaft from the bearing to remove the SENSOR LEVER from the ADF
BASE. See Figure 4-193.
REINSTALLATION
1. Insert the right shaft of the SENSOR LEVER into the right bearing of the ADF
BASE, and push the other shaft into the left bearing of the ADF BASE. See Figure
4-193.
2. Attach the ADF BASE ASSY. (p498)
3. Attach the ADF COVER C. (p496)
4. Attach the ADF COVER R. (p492)
5. Attach the ADF Unit. (p481)
6. Install the Scanner. (p306)

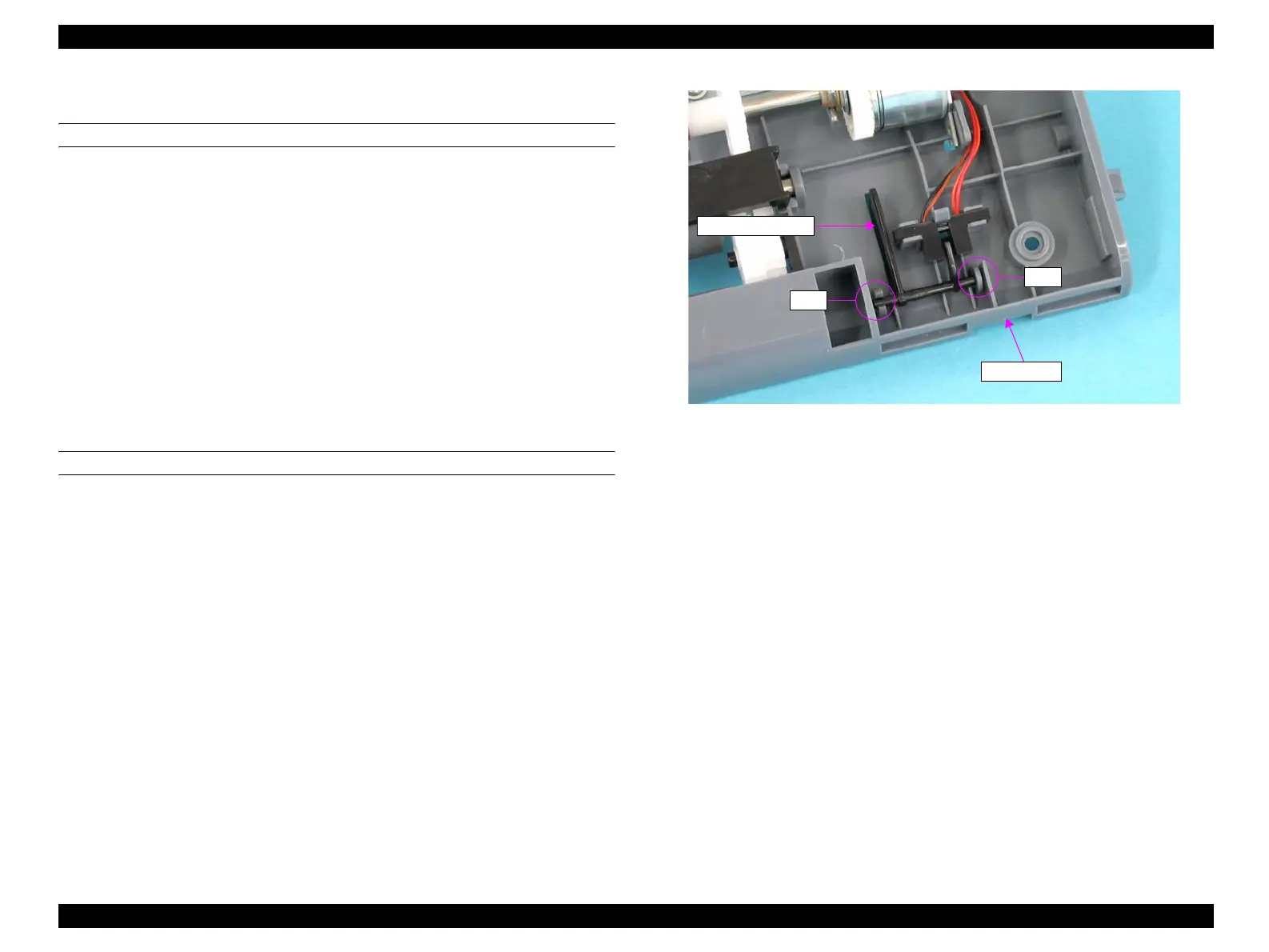

Figure 4-193. Removal of SENSOR LEVER
SENSOR LEVER
7)-2
7)-1
ADF BASE
