TROUBLESHOOTING Printer 274
FIP-P19 Entirely Thin
Before starting troubleshooting, inspect the feed path of the printer paper. Check the
paper feed path for metal staples, paper clips, paper scraps, and other foreign matter.
 Connecting location of the connectors
 Problems

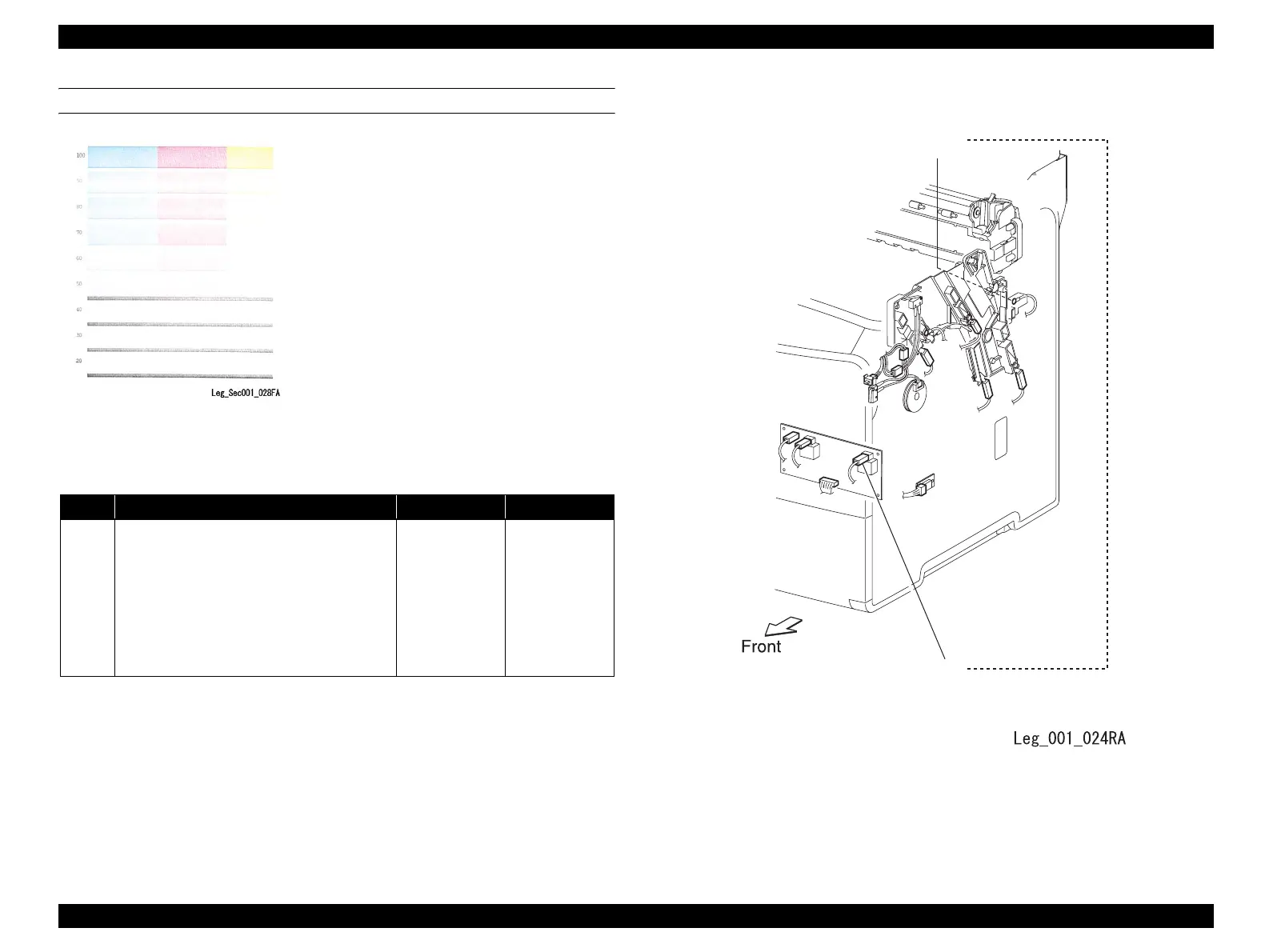

Strong faintness occurs on entire surface. This
occurs due to disconnection of connector
(F) from PWBA HVPS.
 ESS and possible parts that caused the error
 WIRE ASSY 2BTR
 PWBA HVPS
Step Check Yes No
1
Check connector of PWBA HVPS.
Check connection of connector (P/J505) of
PWBA. Also, make sure that 2ND BTR ASSY
that contacts with T2 shown in the figure left is
correctly attached.
Print the problem image. Or, execute the test
print.
Was the trouble fixed?
End of procedure Replace “ESS and
possible parts that
caused the error”.
F
T2
(2BTR)
