EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 442
4.2.12 500 PAPER CASSETTE & 500 PAPER FEEDER
4.2.12.1 500 PAPER CASSETTE ASSY
REMOVAL
1. Draw out 500 PAPER CASSETTE ASSY until it comes to a stop, then slightly lift
up the front side, and remove 500 PAPER CASSETTE ASSY from 500 PAPER
FEEDER.
REINSTALLATION
1. Insert the front side of 500 PAPER CASSETTE ASSY into 500 PAPER FEEDER
with the front side of 500 PAPER CASSETTE ASSY slightly lifted up, then hold
it horizontal and insert it all the way seated in 500 PAPER FEEDER.

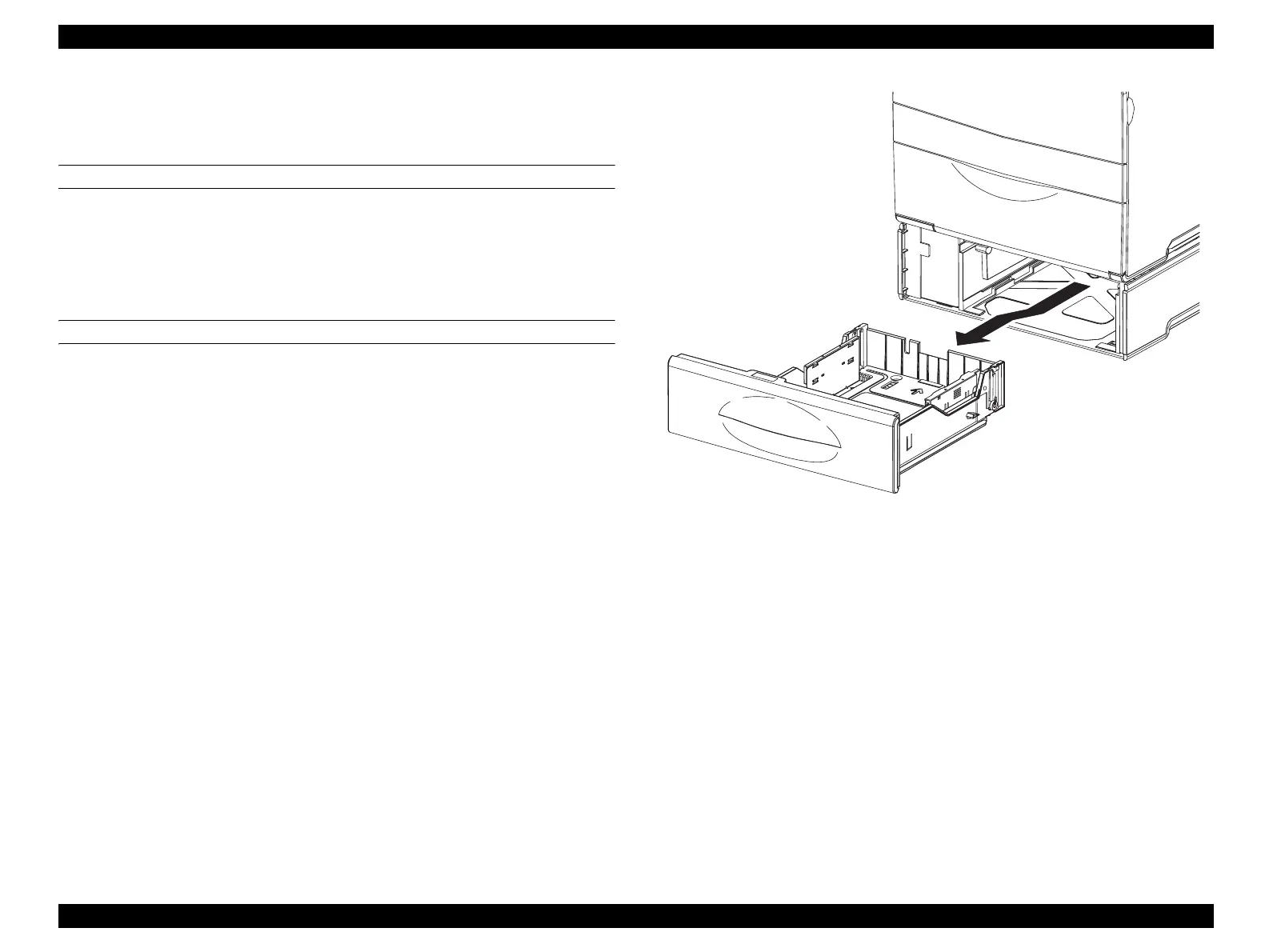

Figure 4-119. Removal of 500 PAPER CASSETTE ASSY
Leg_Sec03_013EA
1)
