EPSON AcuLaser CX11/CX11F Revision B
TROUBLESHOOTING Printer 272
FIP-P17 Entirely Faint
Before starting troubleshooting, inspect the feed path of the printer paper. Check the
paper feed path for metal staples, paper clips, paper scraps, and other foreign matter.

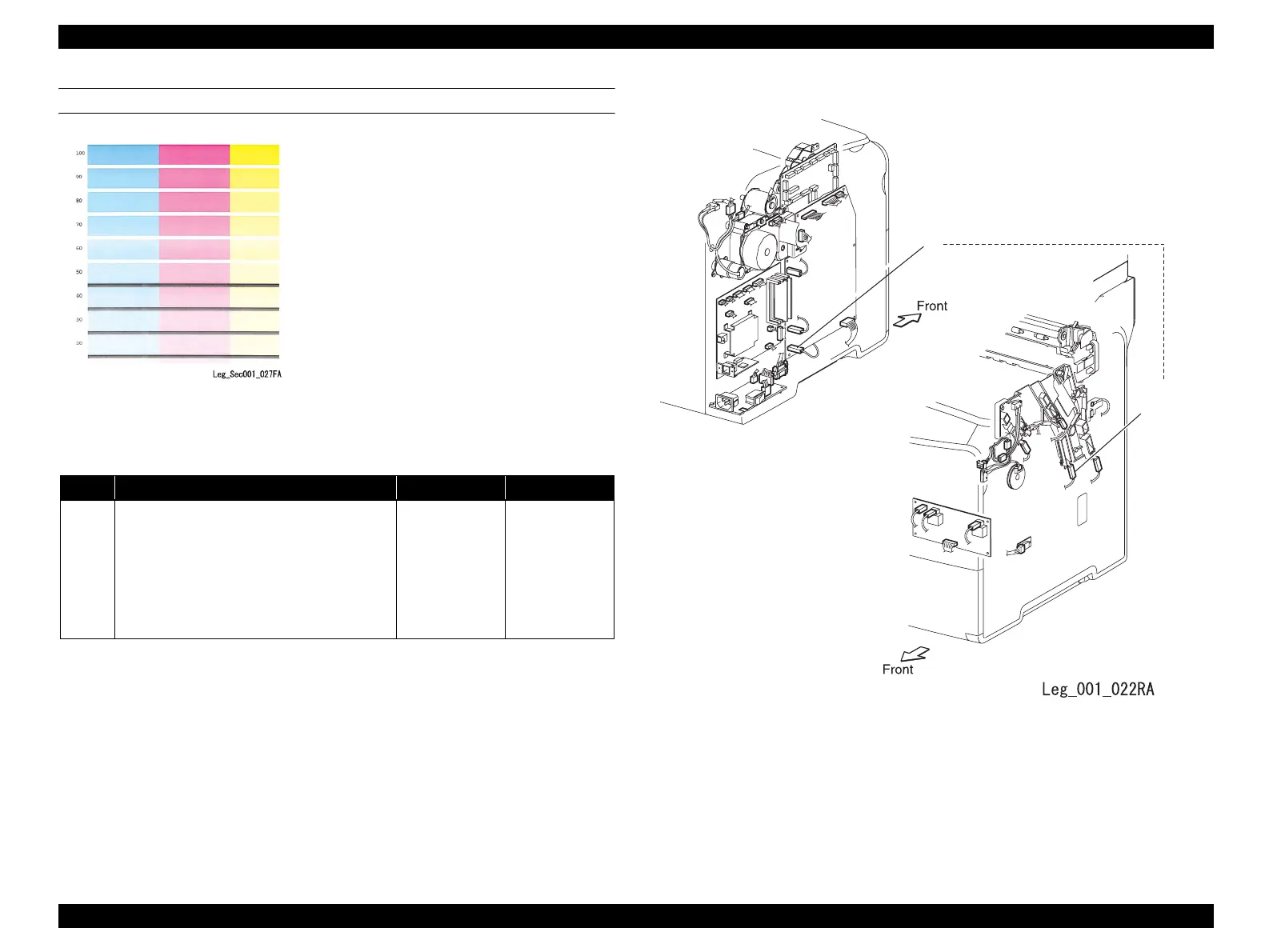

 Connecting location of the connectors
 Problems
The color over the entire surface is faint. This
occurs due to disconnection of connector (C)
from LV/HVPS.
 ESS and possible parts that caused the error
 WIRE ASSY DEVE
 LV/HVPS
Step Check Yes No
1
Check the connectors for LV/HVPS.
Make sure that the connector (P/J509) on LV/
HVPS and the connector (P/J510) on DEVE are
connected properly.
Print the problem image. Or, execute the test
print.
Was the trouble fixed?
End of procedure Replace “ESS and
possible parts that
caused the error”.
C
P/J510
(DEVE)
