EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 315
4.2.2.7 SWITCH ASSY FRONT
REMOVAL
1. Remove COVER ASSY RH. (p326)
2. Unclamp the clamp fastening the harness of SWITCH ASSY FRONT and remove
the harness.
3. Remove the screw (silver, with flange, 8 mm) fastening SWITCH ASSY FRONT
to the main unit.
4. Remove SWITCH ASSY FRONT from the main unit.
5. Disconnect connector (P/J115, white) and connector (P/J125) from SWITCH
ASSY FRONT.
REINSTALLATION
1. Connect connector (P/J115, white) and connector (P/J125) to SWITCH ASSY
FRONT.
2. Match the hole on SWITCH ASSY FRONT with the boss on the main unit.
3. Fasten SWITCH ASSY FRONT to the main unit with the screw (silver, with
flange, 8 mm).
4. Fasten the harness of SWITCH ASSY FRONT with the clamp.
5. Attach COVER ASSY RH. (p326)

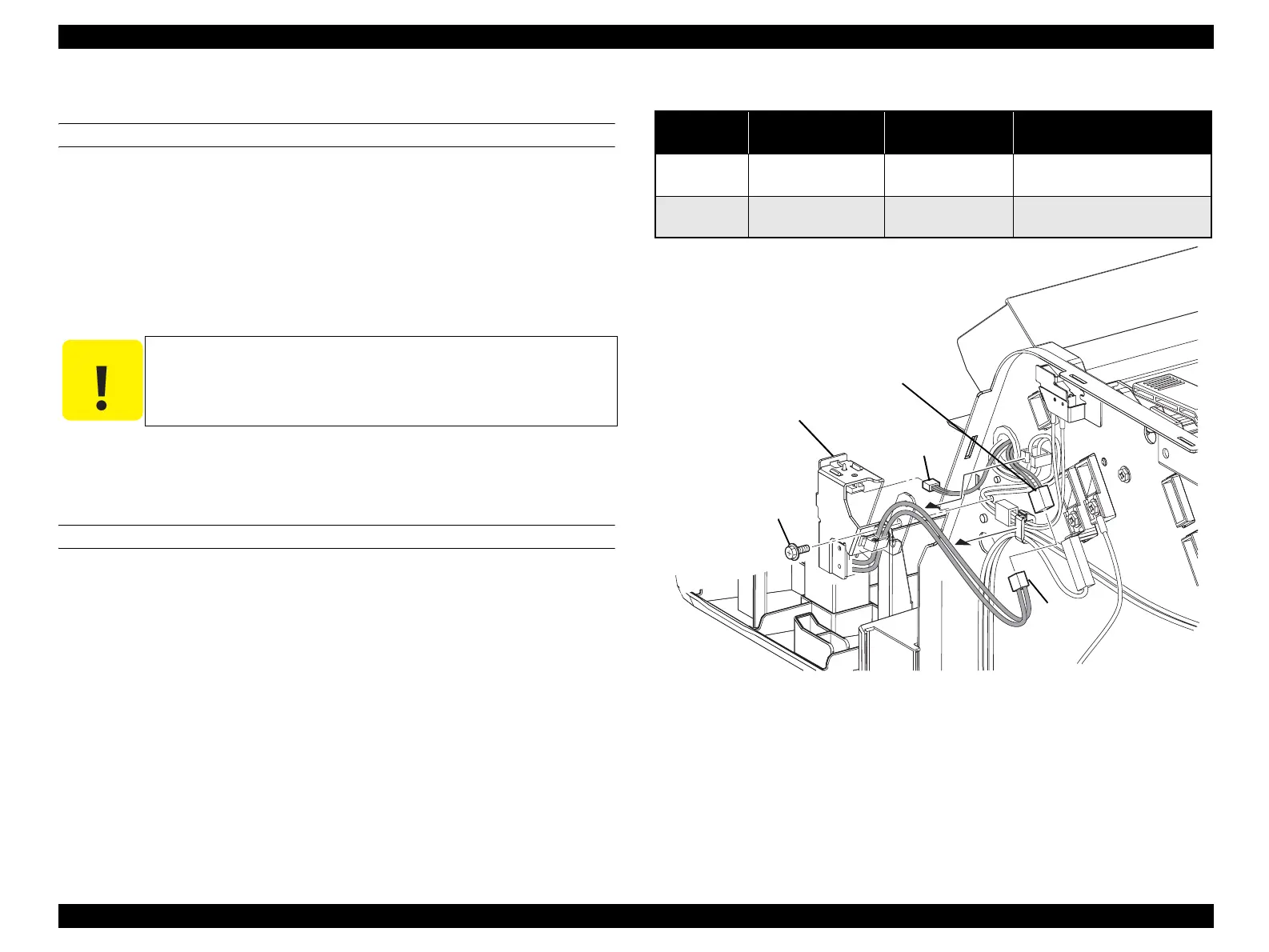

Figure 4-10. Removal of SWITCH ASSY FRONT
C A U T I O N
When performing the following work, leave the intermediate
connector (white) on the harness side.
Table 4-4. Symptoms when the connector is loose
Connector No. Panel Indication Symptom
Error Caused by Connector
Disconnection
P/J115 B Open
Printing is not
possible.
---
P/J116 B Open
Printing is not
possible.
---
Leg_03_504ED
Intermediate
connector (White)
4)
3)
5)
5) (White)
2)
