EPSON AcuLaser CX11/CX11F Revision B
OPERATING PRINCIPLES Printer Section Operating Principle 105
ADJUSTING THE LEADING EDGE OF THE PAPER
If paper is fed up to the toner transfer section from the tray or cassette without
adjusting the alignment of the paper, the image sometimes cannot be transferred at the
correct position. In the registration section, the leading edge of the paper is aligned to
the correct position by the "Roll Loop" system.
The paper, which has passed through the ROLL ASSY-PRE REGI, is pressed against
the stopped ROLL-REGI METAL by the "Roll Loop" system to make the paper
curved. When the ROLL-REGI METAL is rotated with the paper curved, the paper can
be fed from the ROLL-REGI METAL without displacement.

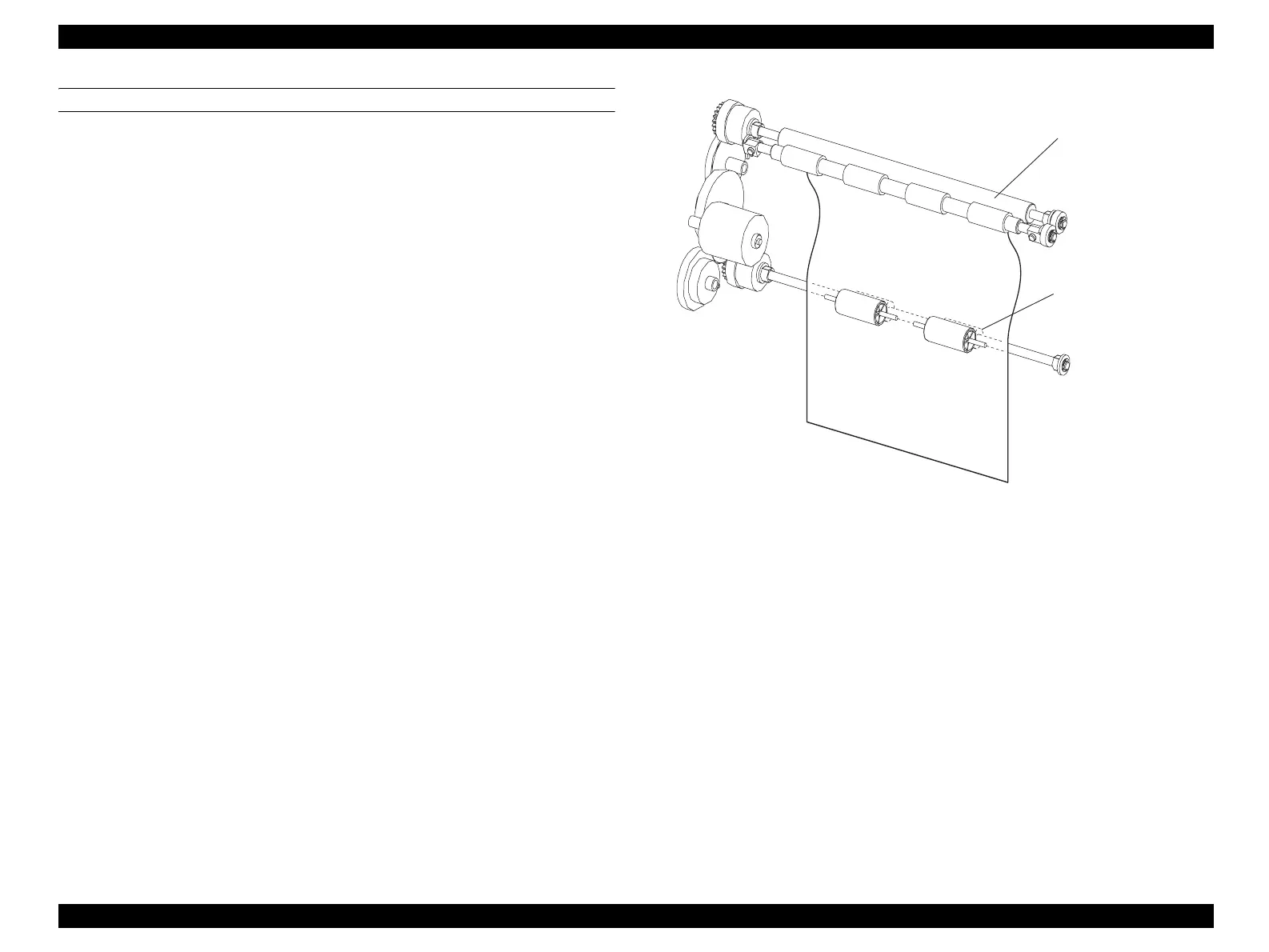

Figure 2-39. Adjusting the leading edge of the paper
ROLL-REGI METAL
ROLL ASSY-PRE REGI
Leg_Sec06_051FB
