Epson AcuLaser CX11 Service Manual

EPSON AcuLaser CX11/CX11F Revision B
MAINTENANCE Lubrication and Glueing 551
6.3 Lubrication and Glueing
This section explains the part required glueing and lubrication when performing the
service work, or replacing the unit or parts.
6.3.1 Printer Section
6.3.1.1 Glueing
There is no relevant glueing part for this unit.
6.3.1.2 Lublication
The part requires lubrication for this unit is as below
6.3.2 Scanner/ADF Section
6.3.2.1 Glueing
There is no relevant glueing part for this unit.
6.3.2.2 Lublication
The part requires lubrication for this unit is as below

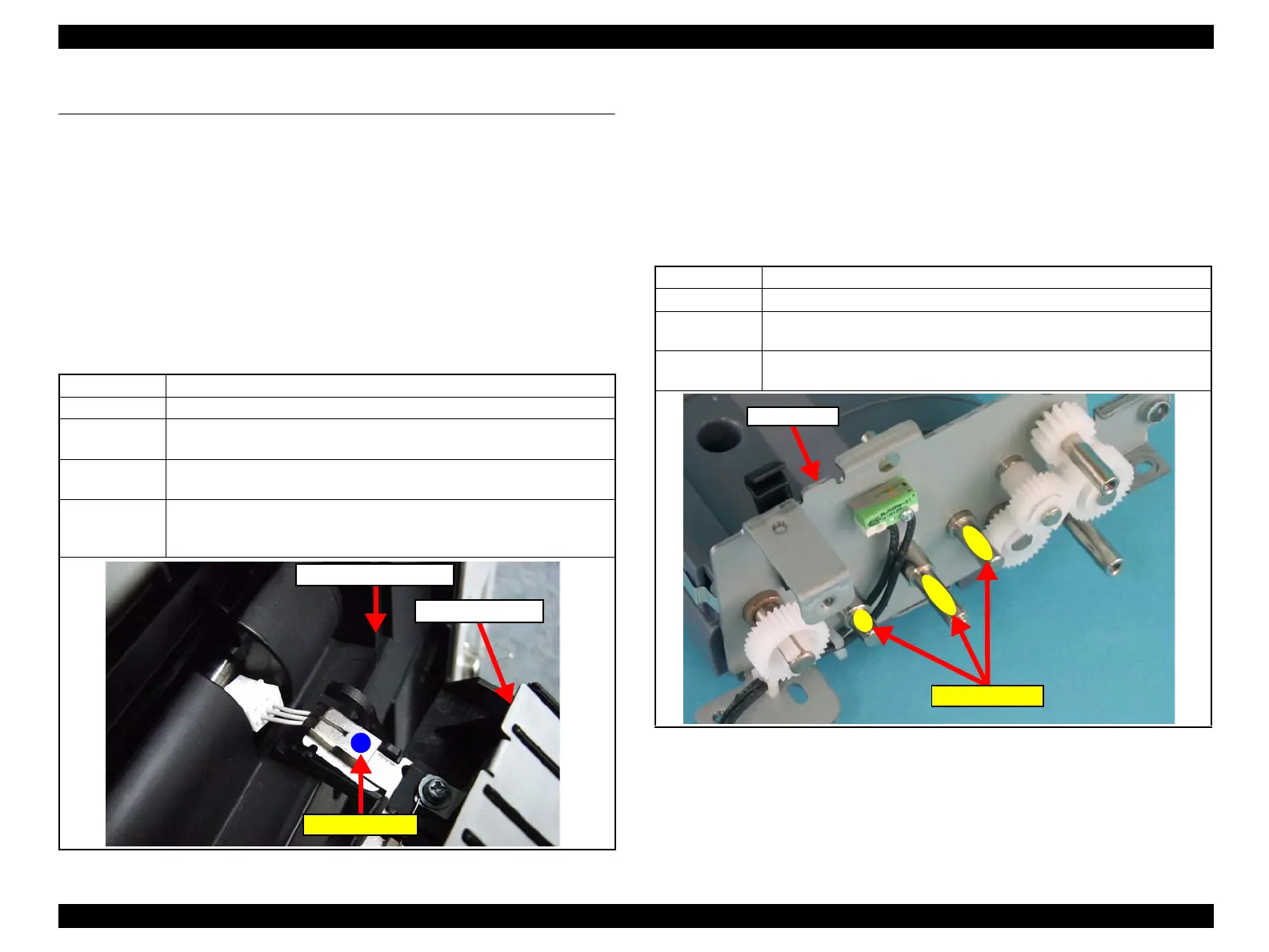

Parts Name
CHUTE ASSY FSR
Lubrication Part Spring attached on the [CHUTE ASSY FSR]
Types of oil
applied
Parts Name : GREASE G-76
Parts Number :1304691
Amount of
lublicate
About 5mm
Note Lubrication is required when CHUTE ASSY FSR and FRAME ASSY 2ND
are replaced at the same time. When replacing only one of them, lubrication
is not necessary as the grease is remaining on the other one.
FRAME ASSY 2ND
CHUTE ASSY FSR
Lubrication Part
Parts Name
FIX PLATE R
Lubrication Part Shaft of the [FIX PLATE R]
Types of oil
applied
Parts Name : GREASE G-45
Parts Number: 1033657
Amount of
lublicate
A little modest amount
FIX PLATE R
Lubrication Part
