EPSON AcuLaser CX11/CX11F Revision B
TROUBLESHOOTING MFP Maintenance Mode 136
3.3.1.5 B Unit Self Diagnosis
B unit (ASIC for counterfeiting prevention) is checked if it is operating normally, and
the result is displayed on the panel.When you select “B Unit” and press [Right], the
diagnosed result; OK or NG will appear after “Running” is displayed for a whole.
Note : Once displayed, press [Left] to return to the previous screen (Self Diagnosis initial
screen).

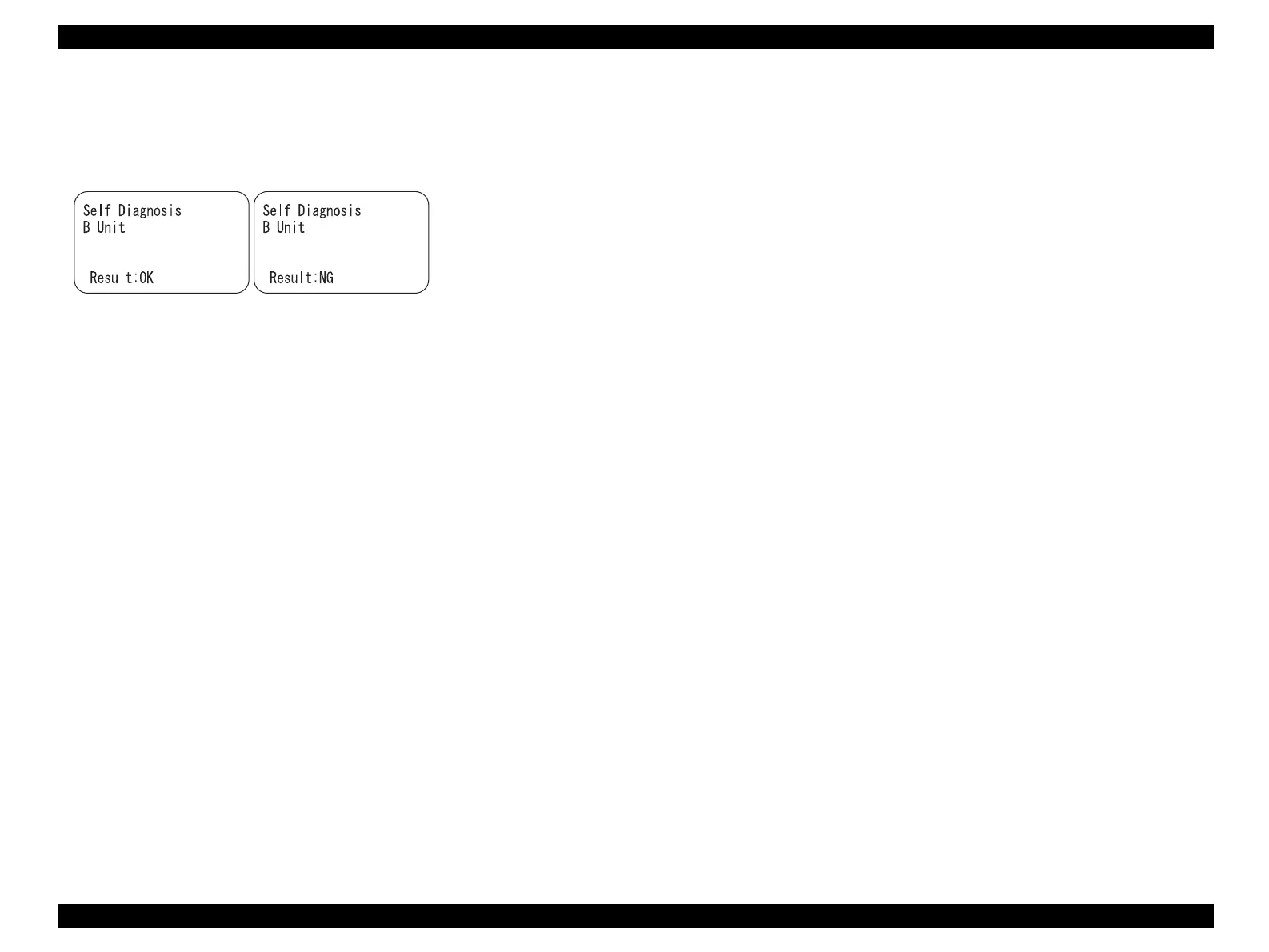

Diagnosed as Normal Diagnosed as Abnormal
