EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 469
4.2.12.25 GUIDE CST L
REMOVAL
1. Remove 500 PAPER CASSETTE ASSY. (p442)
2. Remove CHUTE FDR ASSY 500. (p450)
3. Remove COVER RIGHT 500. (p451)
4. Remove COVER LEFT 500. (p449)
5. Remove CLUTCH ASSY FEED. (p457)
6. Remove DRIVE ASSY FEED. (p454)
7. Remove HOUSING ASSY FEED. (p472)
8. Remove CHUTE ASSY 500. (p462)
9. Remove the screw (silver, tapping, 8 mm) fastening CAP FEEDER to 500 PAPER
FEEDER ASSY.
10. Remove CAP FEEDER from 500 PAPER FEEDER ASSY.
11. Remove the 5 screws (silver, tapping, 6mm) fastening GUIDE CST L to 500
PAPER FEEDER ASSY.
12. To remove GUIDE CST L from SWITCH FEEDER DOOR, slide GUIDE CST L
slightly to the right, and remove GUIDE CST L from 500 PAPER FEEDER ASSY
together with SPG LOCK CST LL and STOPPER CST L.
13. Remove STOPPER CST L. (p471)

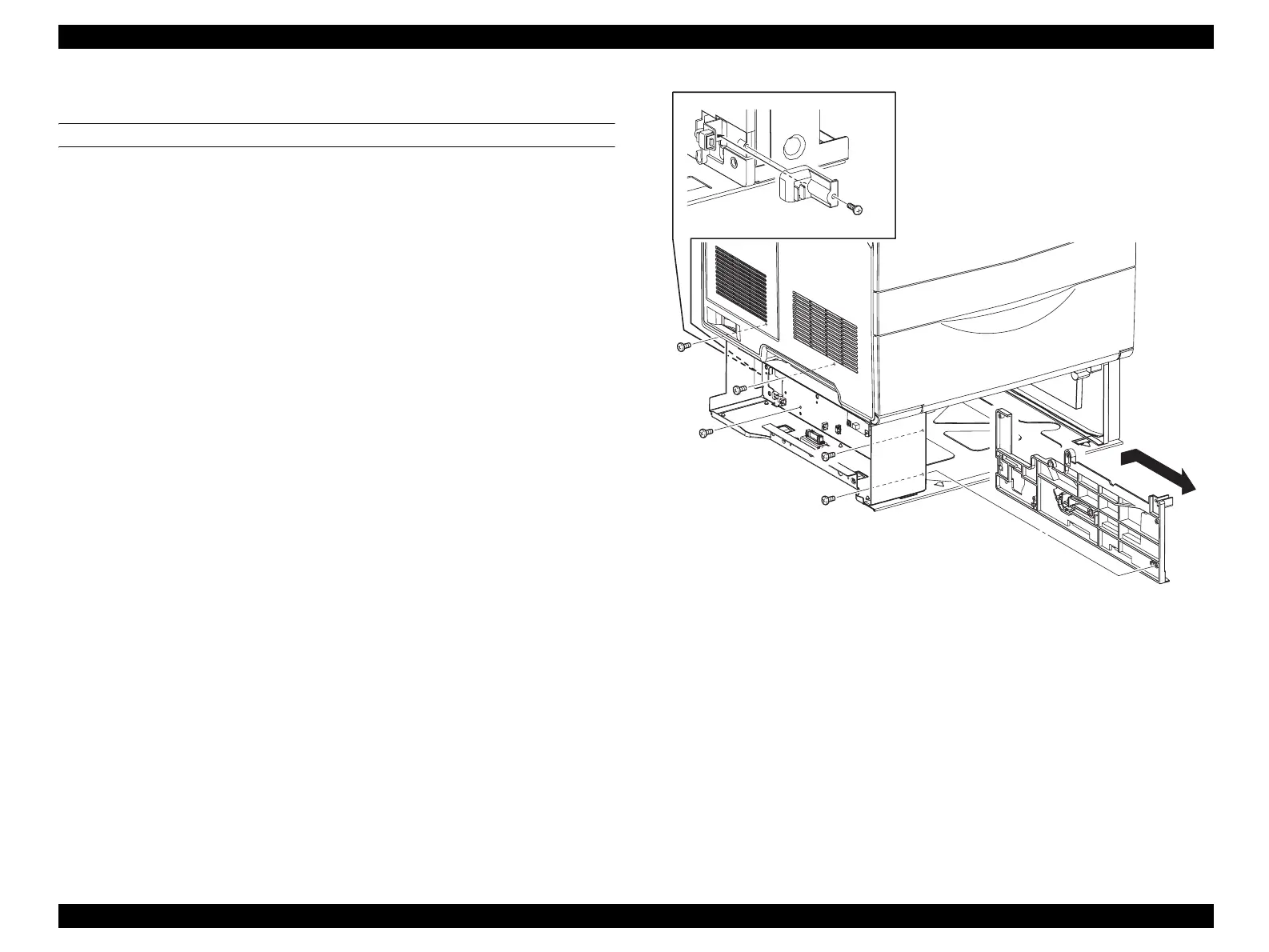

Figure 4-145. Removal of GUIDE CST L
Leg_Sec03_040EA
10)
9)
11)
11)
11)
11)
11)
12)
To Next Page
