EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 468
4.2.12.24 GUIDE CST R
REMOVAL
1. Remove 500 PAPER CASSETTE ASSY. (p442)
2. Remove CHUTE FDR ASSY 500. (p450)
3. Remove COVER RIGHT 500. (p451)
4. Remove COVER LEFT 500. (p449)
5. Remove CLUTCH ASSY FEED. (p457)
6. Remove DRIVE ASSY FEED. (p454)
7. Remove HOUSING ASSY FEED. (p472)
8. Remove CHUTE ASSY 500. (p462)
9. Remove the 5 screws (silver, tapping, 6mm) fastening GUIDE CST R to 500
PAPER FEEDER ASSY.
10. Remove GUIDE CST R from 500 PAPER FEEDER ASSY together with SPG
LOCK CST LL and STOPPER CST R.
11. Remove STOPPER CST R. (p467)
REINSTALLATION
1. Attach STOPPER CST R. (p467)
2. Match the boss on the GUIDE CST R with the hole on 500 PAPER FEEDER
ASSY, and attach GUIDE CST R.
3. Fasten GUIDE CST R to 500 PAPER FEEDER ASSY with the 5 screws (silver,
tapping, 6mm).
4. Attach CHUTE ASSY 500. (p462)
5. Attach HOUSING ASSY FEED. (p472)
6. Attach DRIVE ASSY FEED. (p454)
7. Attach CLUTCH ASSY FEED. (p457)
8. Attach COVER LEFT 500. (p449)
9. Attach COVER RIGHT 500. (p451)
10. Attach CHUTE FDR ASSY 500. (p450)
11. Attach 500 PAPER CASSETTE ASSY. (p442)

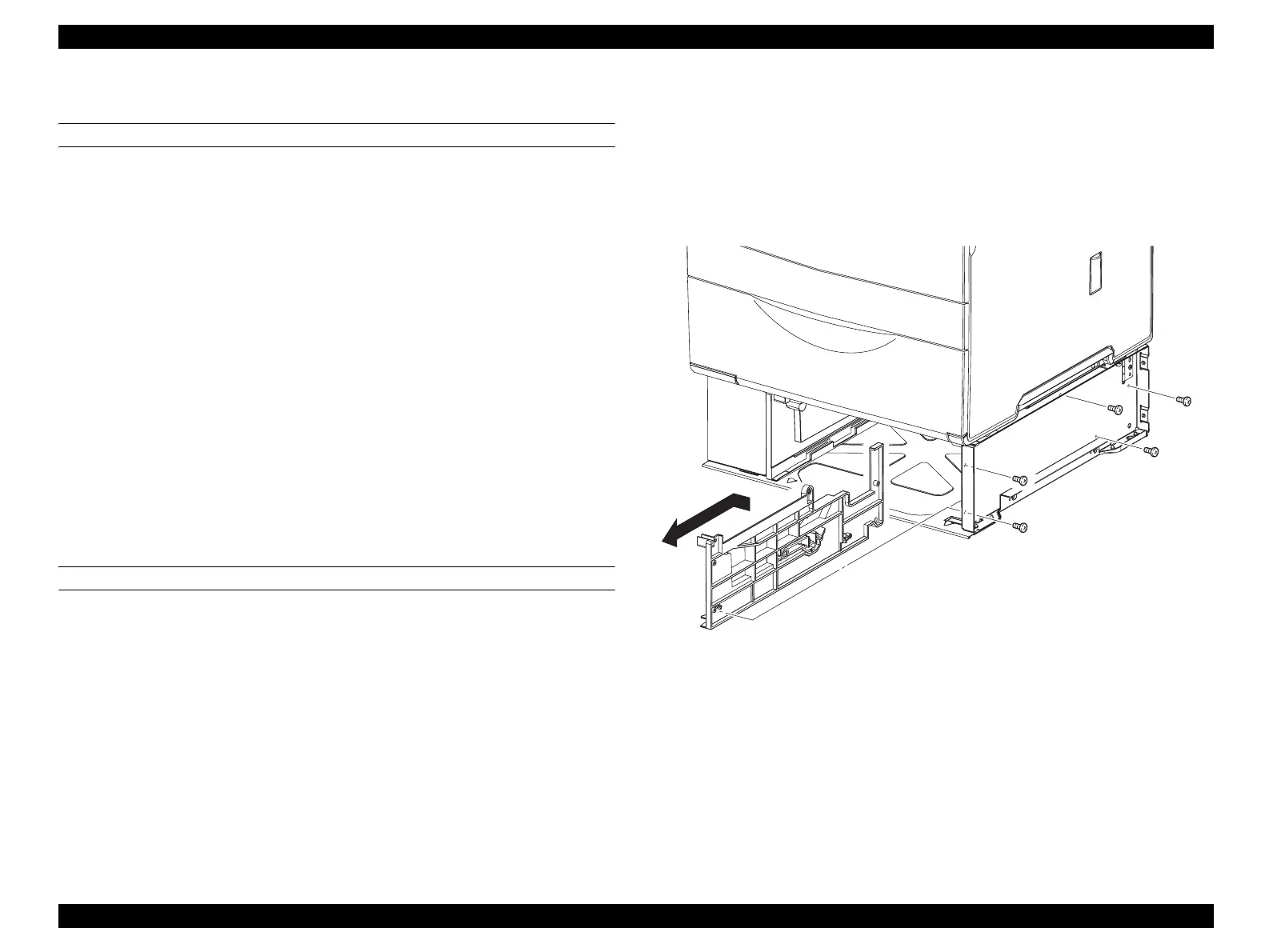

Figure 4-144. Removal of GUIDE CST R
Leg_Sec03_039EA
9)
9)
9)
9)
10)
9)
