Epson AcuLaser CX11 Service Manual

EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 475
4.2.12.29 ACTUATOR NO PAPER CST
REMOVAL
1. Remove 500 PAPER CASSETTE ASSY. (p442)
2. Remove COVER LEFT 500. (p449)
3. Remove CLUTCH ASSY FEED. (p457)
4. Remove DRIVE ASSY FEED. (p454)
5. Remove HOUSING ASSY FEED. (p472)
6. Unhook the 3 hooks fastening CAP ACTUATOR to HOUSING ASSY FEED, and
remove CAP ACTUATOR.
7. Remove the 2 screws (silver, tapping, 8 mm) fastening COVER FEED to
HOUSING ASSY FEED.
8. Remove COVER FEED from HOUSING ASSY FEED.
9. Draw out the shaft of ACTUATOR NO PAPER CST from the hook on HOUSING
ASSY FEED, slide along the notch on HOUSING ASSY FEED, and remove
ACTUATOR NO PAPER CST.

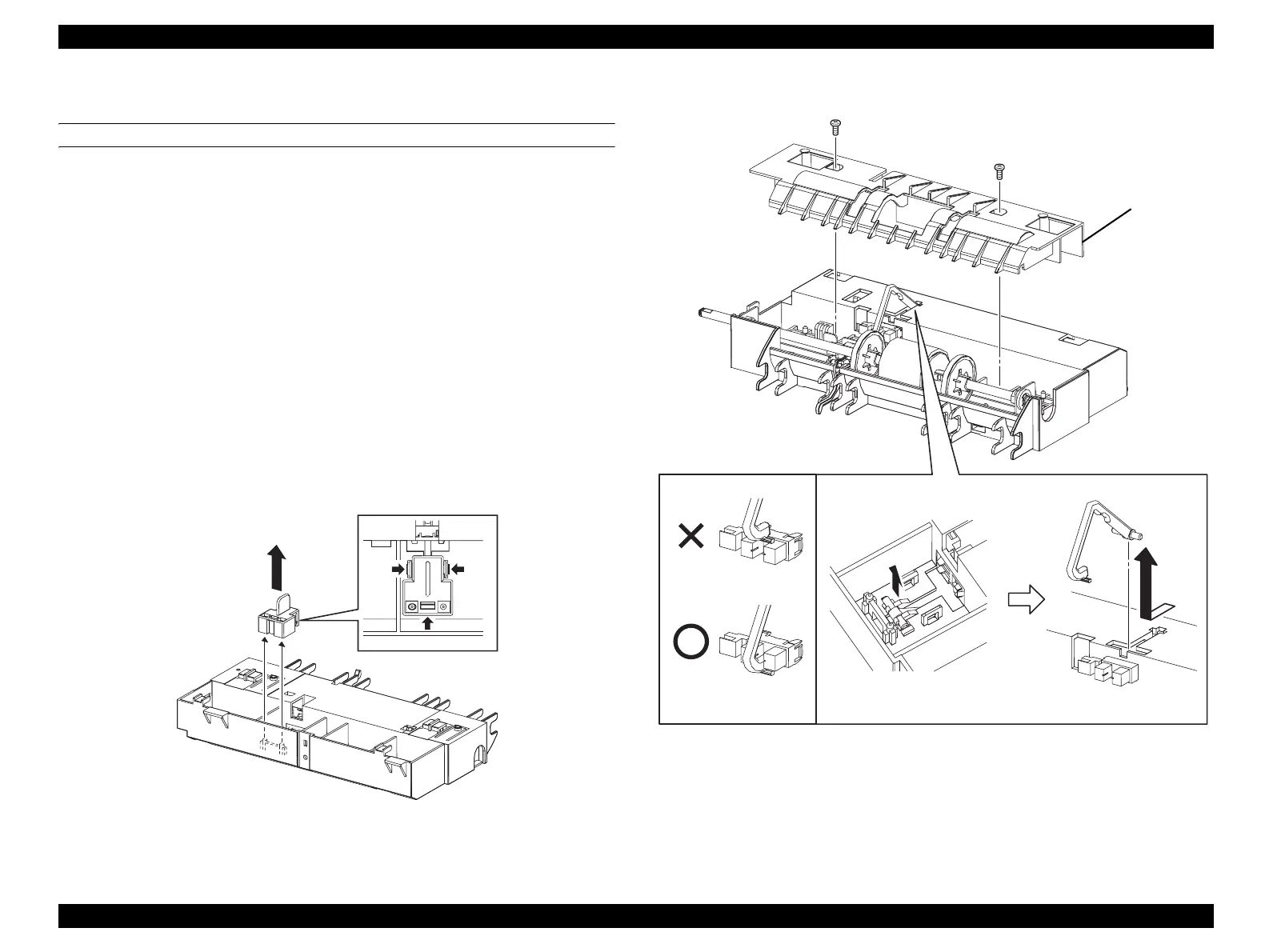

Figure 4-149. Removal of ACTUATOR NO PAPER CST (1)
Figure 4-150. Removal of ACTUATOR NO PAPER CST (2)
Leg_Sec03_206FA
6)-1
6)-2
Leg_Sec03_034FA
CAUTION
7)
7)
8)
9)-2
9)-1
