Epson AcuLaser CX11 Service Manual

EPSON AcuLaser CX11/CX11F Revision B
OPERATING PRINCIPLES Printer Section Operating Principle 97
2.2.3.2 MOTOR ASSY P/R, DRIVE ASSY PRO
Rotation of MOTOR ASSY P/R and DRIVE ASSY PRO is transmitted as follows:

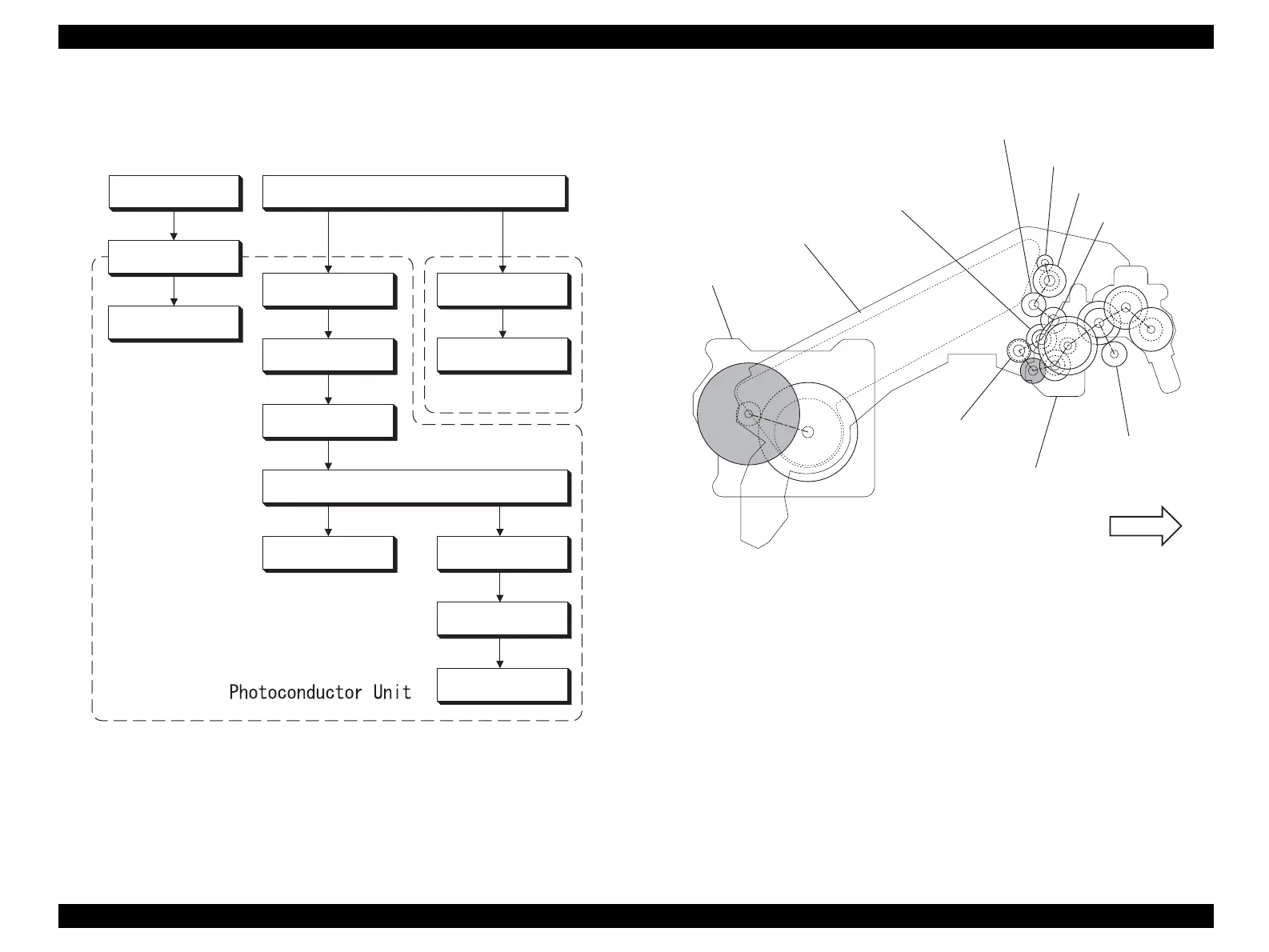

Figure 2-24. Drive Transmission Flow
Figure 2-25. Diagram of Drive Transmission Path
DRIVE ASSY PROMOT ASSY P/R
FLANGE
GEAR INPUT
GEAR BRUSH 22/30
CAM ASSY
DRUM
GEAR BRUSH 32
GEAR DRIVE BRUSH
ROLL ASSY BRUSH IBT
GEAR-19
CAM ASSY-IBT CL
GEAR IDLE 26/40
GEAR DTR 23
ROLL DTN
Leg_Sec06_036EB
MOT ASSY P/R
DRIVE ASSY PRO
GEAR-19
GEAR INPUT
GEAR BRUSH 32
GEAR IDLE 26/40
GEAR DTR 23
GEAR DRIVE BRUSH
GEAR BRUSH 22/30
IBT ASSY
FRONT
Leg_Sec06_045EC
