EPSON AcuLaser CX11/CX11F Revision B
OPERATING PRINCIPLES Printer Section Operating Principle 114
 Dispense Clutch (Inside the MOT ASSY MAG)
The Dispense Clutch is provided to transmit the drive of MOT ASSY MAG to
rotate the Augers for supplying toner.
 MOT ASSY MAG
The MOT ASSY MAG rotates the Magnet Roll in the HOUSING ASSY-DEVE.
 MOT ASSY ROT
The MOT ASSY ROT rotates the FRAME ASSY ROTARY that holds the
HOUSING ASSY-DEVE.
 SENSOR ROTARY HOME POSI
The SENSOR ROTARY HOME POSI detects the position of the Rotary
Developer to keep the Developer in the right position. The home position is about
10 degrees CW from the transfer position of the black toner Developer.
 LATCH ROTARY
LATCH ROTARY is interlocked with movement of the Front Cover. When the
Front Cover is closed, LATCH ROTARY is pressed by the acutuator on the Front
Cover to lock the Rotary Developer. When the Front Cover is opened, LATCH
ROTARY returns to the release position to unlock the Rotary Developer.

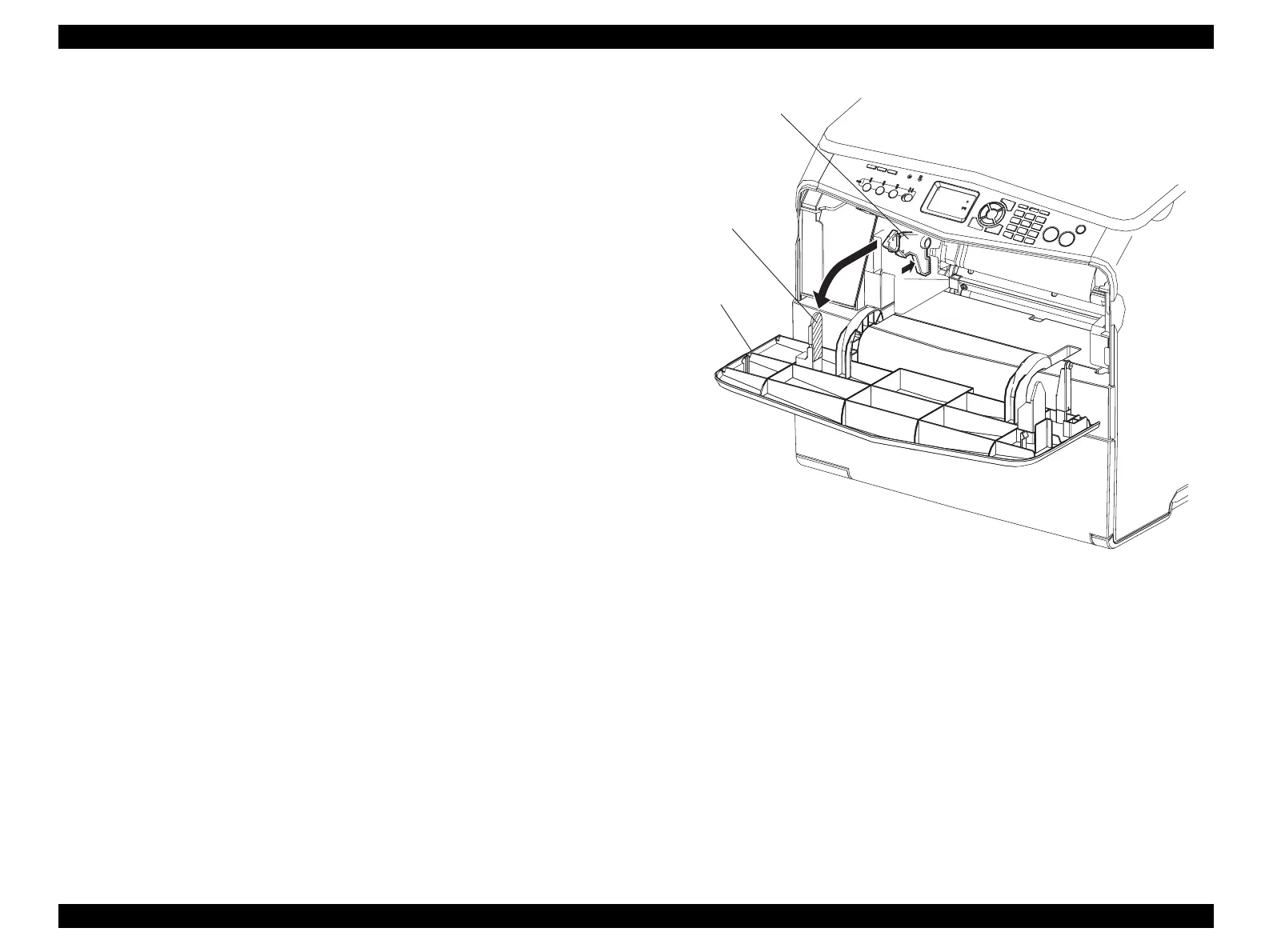

Figure 2-50. LATCH ROTARY
LATCH ROTARY
Front Cover
Leg_06_059RB
Acutuator
