EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 360
4.2.4.10 ACTUATOR-REGI
REMOVAL
1. Remove FRAME ASSY-PH. (p352)
2. Remove the left-side shaft on ACTUATOR-REGI from the hook on FRAME
ASSY-PH.
3. Draw out the right-side shaft on ACTUATOR-REGI from the hole on FRAME
ASSY-PH, and remove ACTUATOR-REGI together with SPRING-ACTUATOR.
4. Remove SPRING-ACTUATOR from ACTUATOR-REGI.
REINSTALLATION
1. Attach SPRING-ACTUATOR to ACTUATOR-REGI.
2. Insert the right-side shaft on ACTUATOR-REGI into the hole on FRAME ASSY-
PH, and hook SPRING-ACTUATOR onto the notch on FRAME ASSY-PH.
3. Fasten the left-side shaft on ACTUATOR-REGI by the hook on FRAME ASSY-
PH.
4. Attach FRAME ASSY-PH. (p352)

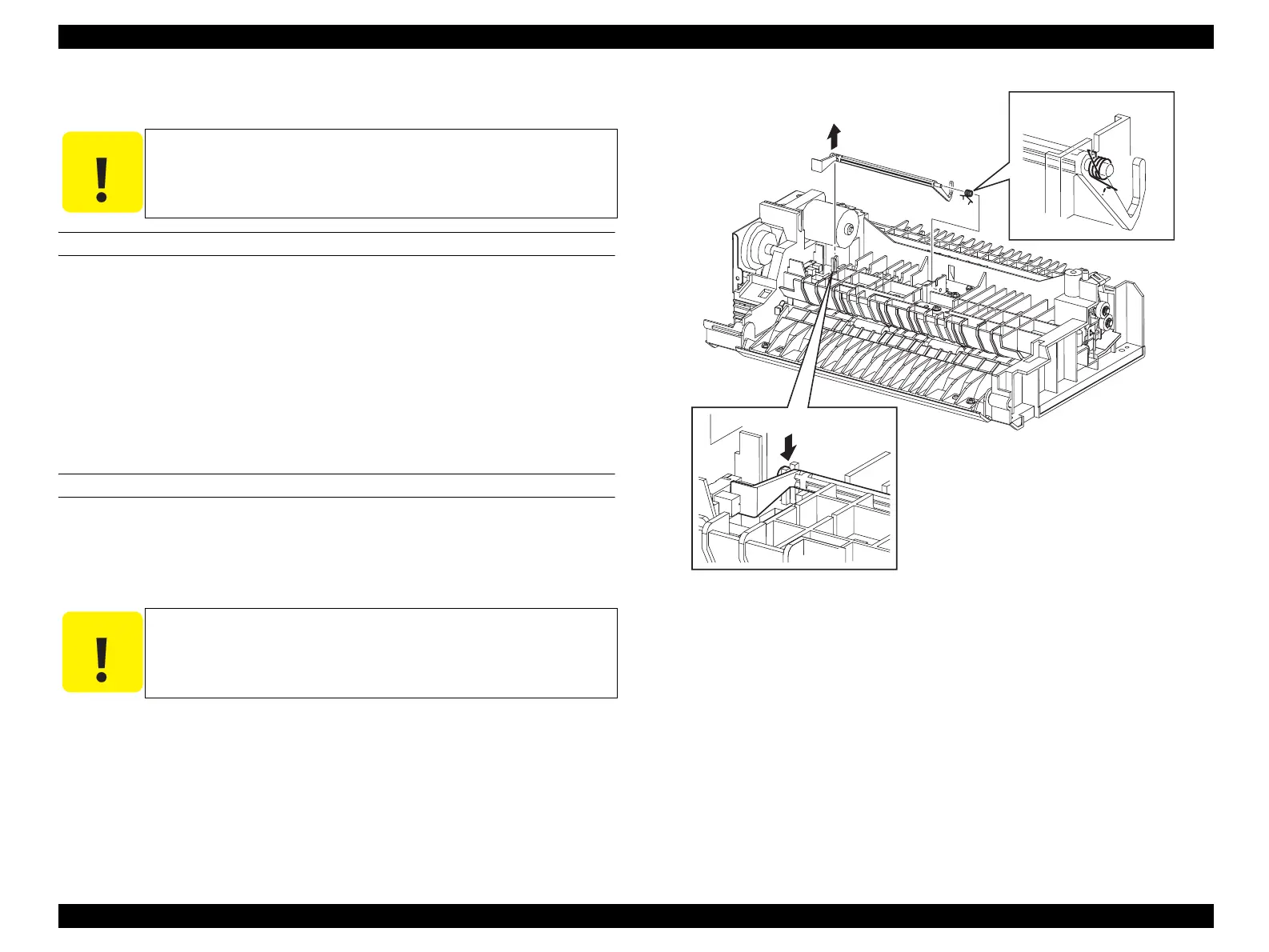

Figure 4-52. Removal of ACTUATOR-REGI
C A U T I O N
Step numbers with [ ] in the figure indicate the step of
reinstallation.
C A U T I O N
SPRING-ACTUATOR must be hooked firmly on ACTUATOR-
REGI and FRAME ASSY-PH.
