EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 329
4.2.3 MSI
4.2.3.1
MSI ASSY
REMOVAL
1. Remove COVER ASSY RH. (p326)
2. Remove COVER ASSY LH. (p321)
3. Remove COVER MSI. (p317)
4. Remove COVER FRONT L and COVER FRONT ASSY U. (p318)
5. Remove FRAME ASSY-PH. (p352)
6. Disconnect connector (P/J408) and connector (P/J409) from PWBA MCU.
7. Unclamp the two clamps on CHASSIS ESS, and disconnect the harness from
HARNESS-ASSY P/H 1.
8. When a 500-sheet Cassette Unit is installed, turn the LOCK MC TO FDR that is
attached to the unit 90 degrees as shown in Figure 4-24 to unlock the unit from the
main unit.
9. Remove the 6 screws (silver, with flange, tapping, 8 mm) fastening MSI ASSY to
the main unit.
10. Draw out MSI ASSY slightly toward you, lift up MSI ASSY slightly to avoid TIE
PLATE under the main unit, gently draw out MSI ASSY forward again and draw
out HARNESS-ASSY P/H 1 from the hole on the main unit to remove MSI ASSY.

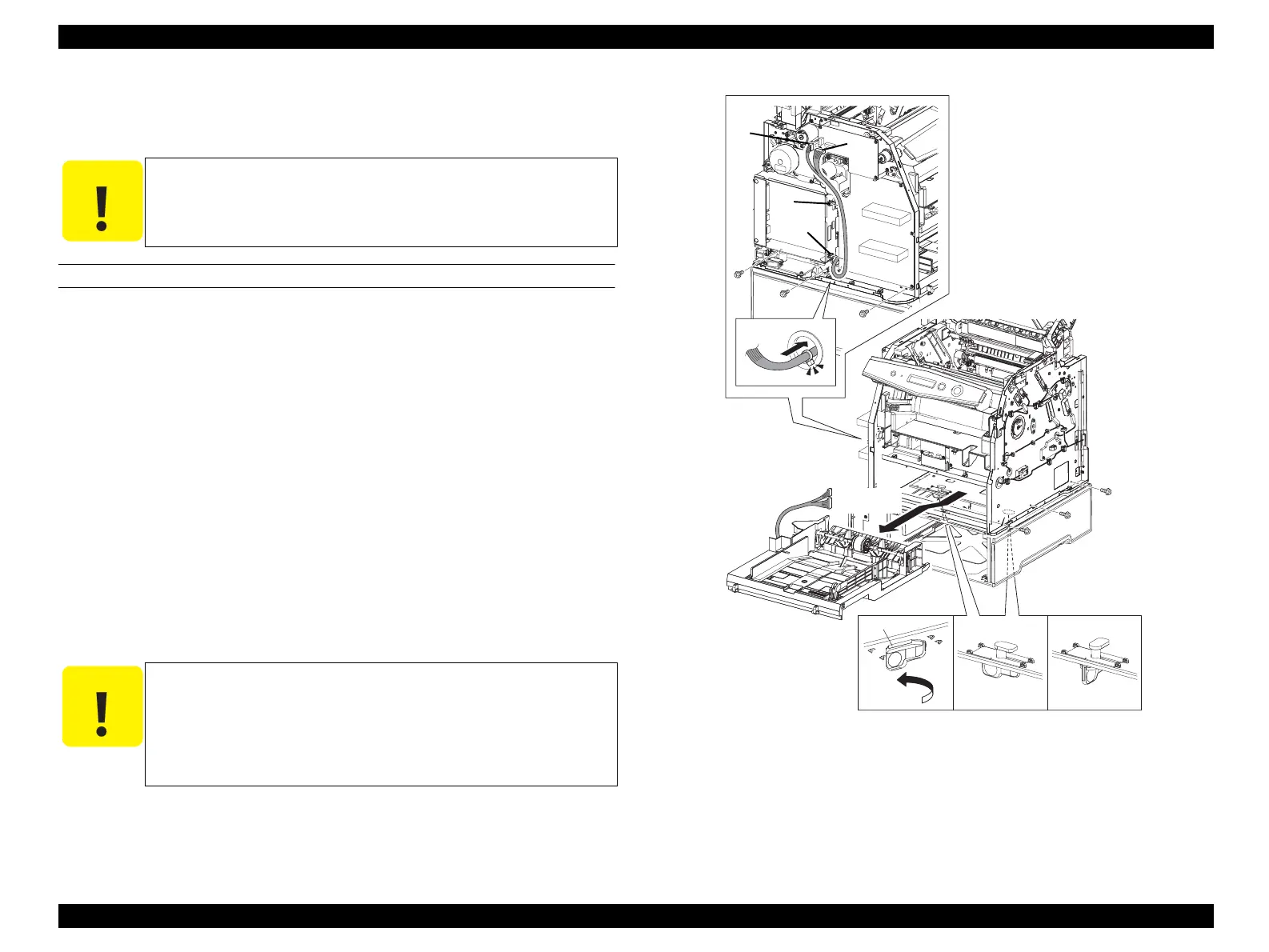

Figure 4-24. Removal of MSI ASSY
C A U T I O N
Step numbers with [ ] in the figure indicate the step of
reinstallation.
C A U T I O N
îš„ When performing the following work, take care to prevent the
cable tie that bundles the harness of HARNESS-ASSY P/H 1
from being caught on the holes, etc. on the main unit.
îš„ When performing the following work, take care to prevent the
HARNESS-ASSY P/H 1 from being sandwiched between the
main unit and MSI ASSY.
Leg_Sec03_042EC
CAUTION
LOCK MC TO FDR
Unlock
Lock
6)
6)
7)
7)
9)
9)
9)
9)
9)
9)
10)-1
8)
10)-2
To Next Page
