EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY ADF Section 516
4.4.3.4 FRAME COVER ASSY
REMOVAL
1. Remove the Scanner. (p306)
2. Remove the ADF Unit. (p481)
3. Remove the ADF COVER R. (p492)
4. Remove the PAPER GUIDE ASSY. (p526)
5. Remove the ADF COVER C. (p496)
6. Remove the ADF BASE ASSY. (p498)
7. Remove the MOTOR. (p509)
8. Remove the GUIDE FRONT ASSY. (p511)
9. Remove the PAPER GUIDE R. (p515)
10. Remove the two screws (M3 x 8 mm, P-type, A-head) that secure the FRAME
COVER ASSY to the ADF FRAME UNIT.
11. Open the FRAME COVER ASSY from the NEUTRALIZING BRUSH side, and
remove the FRAME COVER ASSY from the ADF FRAME UNIT.

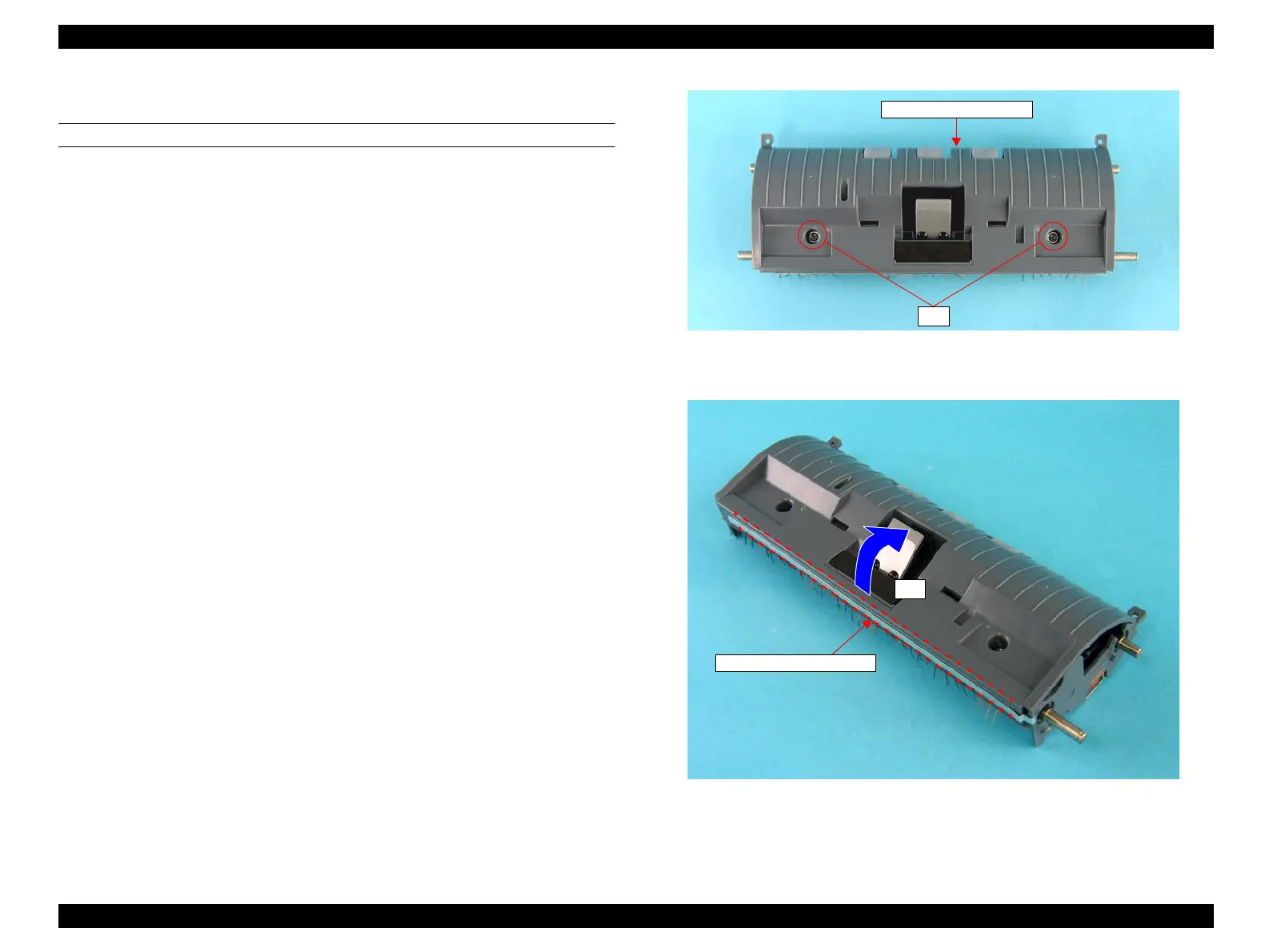

Figure 4-206. Removal of FRAME COVER ASSY (1)
Figure 4-207. Removal of FRAME COVER ASSY (2)
10)
FRAME COVER ASSY
11)
NEUTRALIZING BRUSH
