EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 396
4.2.6.6 LEVER-LATCH PR
REMOVAL
1. Remove COVER ASSY RH. (p326)
2. Remove 2ND BTR ASSY. (p374)
3. Remove FRAME ASSY-PH. (p352)
4. Remove BCR CLN XERO ASSY. (p399)
5. Remove SENSOR TR-0. (p387)
6. Remove GUIDE CRU ASSY AD. (p393)
7. Turn LEVER-LATCH PR in the direction of the arrow, match the notch on
LEVER-LATCH PR with the protrusion on the boss of GUIDE CRU ASSY AD,
and remove LEVER-LATCH PR.
REINSTALLATION
1. Match the notch on LEVER-LATCH PR with the protrusion on the boss of
GUIDE CRU ASSY AD, and attach LEVER-LATCH PR.
2. Attach GUIDE CRU ASSY AD. (p393)
3. Attach SENSOR TR-0. (p387)
4. Attach BCR CLN XERO ASSY. (p399)
5. Attach FRAME ASSY-PH. (p352)
6. Attach 2ND BTR ASSY. (p374)
7. Attach COVER ASSY RH. (p326)

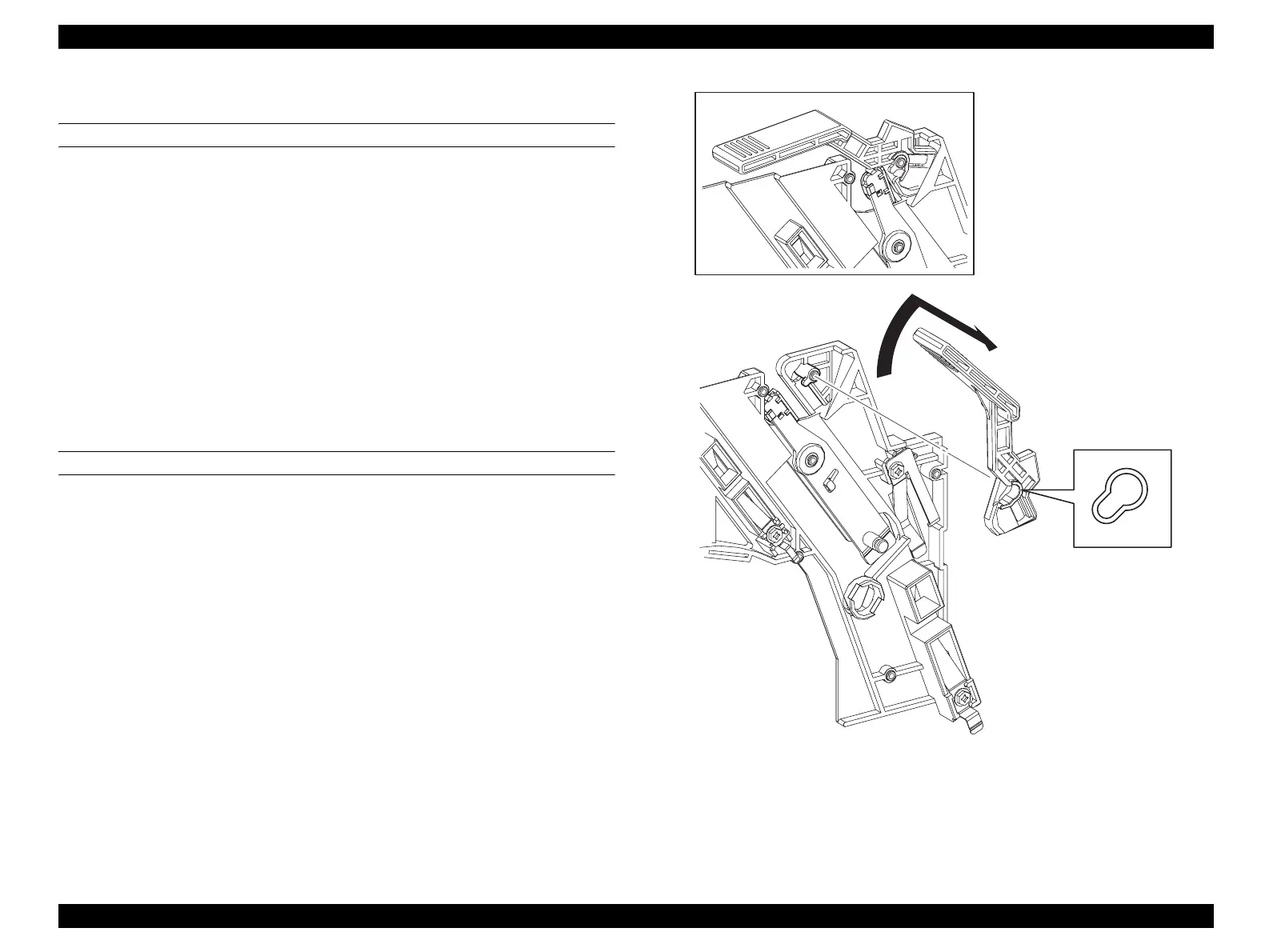

Figure 4-82. Removal of LEVER-LATCH PR
Leg_Sec03_202FA
7)
