EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 311
4.2.2.3 COVER FUSER
REMOVAL
1. Open COVER FUSER.
2. Bow COVER FUSER to pull out its right and left convex potions, and remove the
COVER FUSER.
REINSTALLATION
1. Insert the right and left convex potions of the COVER FUSER.
2. Close COVER FUSER.

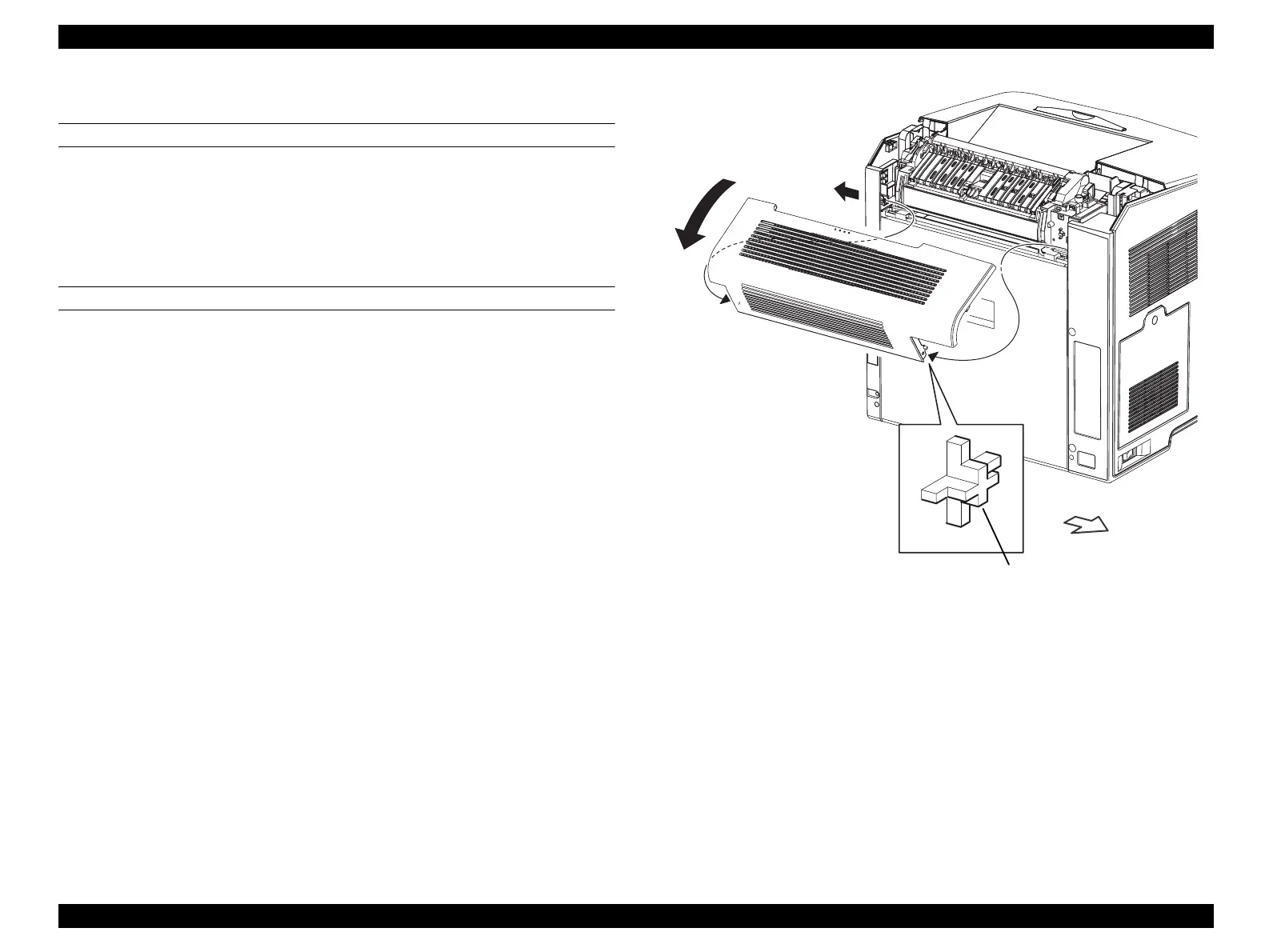

Figure 4-6. Removal of COVER FUSER
Leg_Sec03_005EB
2)-1
2)-2
1)
LEFT
Protrusion
