EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 472
4.2.12.27 HOUSING ASSY FEED
REMOVAL
1. Remove 500 PAPER CASSETTE ASSY. (p442)
2. Remove COVER LEFT 500. (p449)
3. Remove CLUTCH ASSY FEED. (p457)
4. Remove DRIVE ASSY FEED. (p454)
5. Unhook the hook on GEAR FEED fastened to the shaft on HOUSING ASSY
FEED, and remove GEAR FEED.
6. Disconnect connector (P/J618) from HOUSING ASSY FEED.
7. Remove the screw (silver, with flange, 6 mm) fastening HOUSING ASSY FEED
to 500 PAPER FEEDER ASSY.
8. Insert both hands from the front side of 500 PAPER FEEDER ASSY, pull the 2
levers on HOUSING ASSY FEED towards you, and remove the boss on
HOUSING ASSY FEED from the hole on 500 PAPER FEEDER ASSY.
9. Slide HOUSING ASSY FEED to the front side, unhook the 4 hooks at the top
fastened to 500 PAPER FEEDER ASSY, remove the hole on HOUSING ASSY
FEED from the protrusion at the front side of 500 PAPER FEEDER ASSY, and
push down HOUSING ASSY FEED to remove.

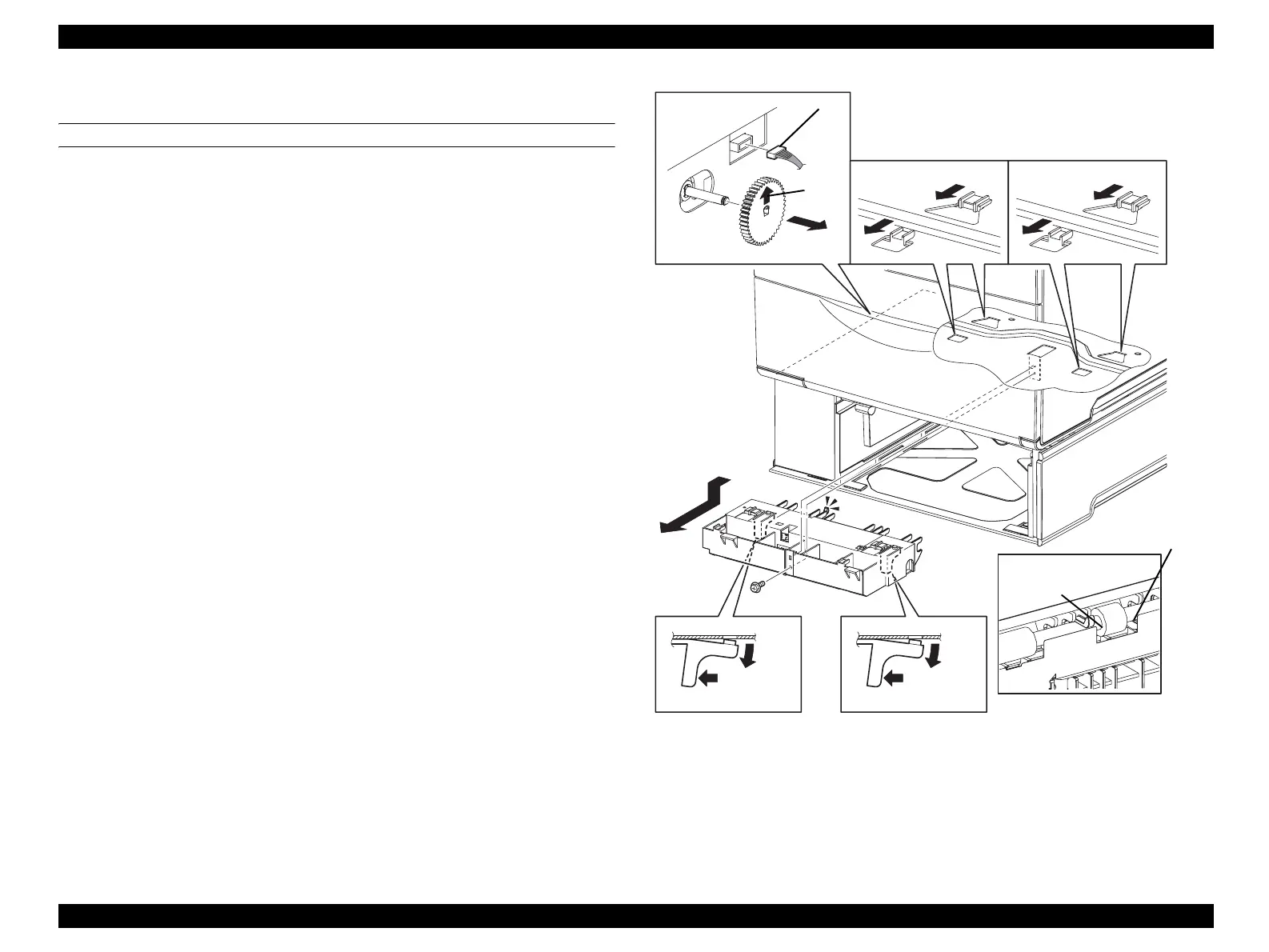

Figure 4-147. Removal of HOUSING ASSY FEED
Leg_Sec03_032EB
CAUTION
ROLL ASSY
TURN 500
ACTUATOR
T/R
9)-1 9)-1
5)-1
5)-2
6)
7)
9)-2
8)-2 8)-2
8)-18)-1
manuals4you.commanuals4you.com
To Next Page
