EPSON AcuLaser CX11/CX11F Revision B
27
1.2.1.7 Outside Dimensions and Weight
 Dimensions and weight of base model, FAX model, and options
NOTE1: Manufacturing tolerance is ± 5 mm in dimensions and ± 0.5 kg in weight.
2: Consumables are not included in the main unit weight (controller is included).
*: ADF: Width becomes 494 mm when the LGL extension paper tray is opened.

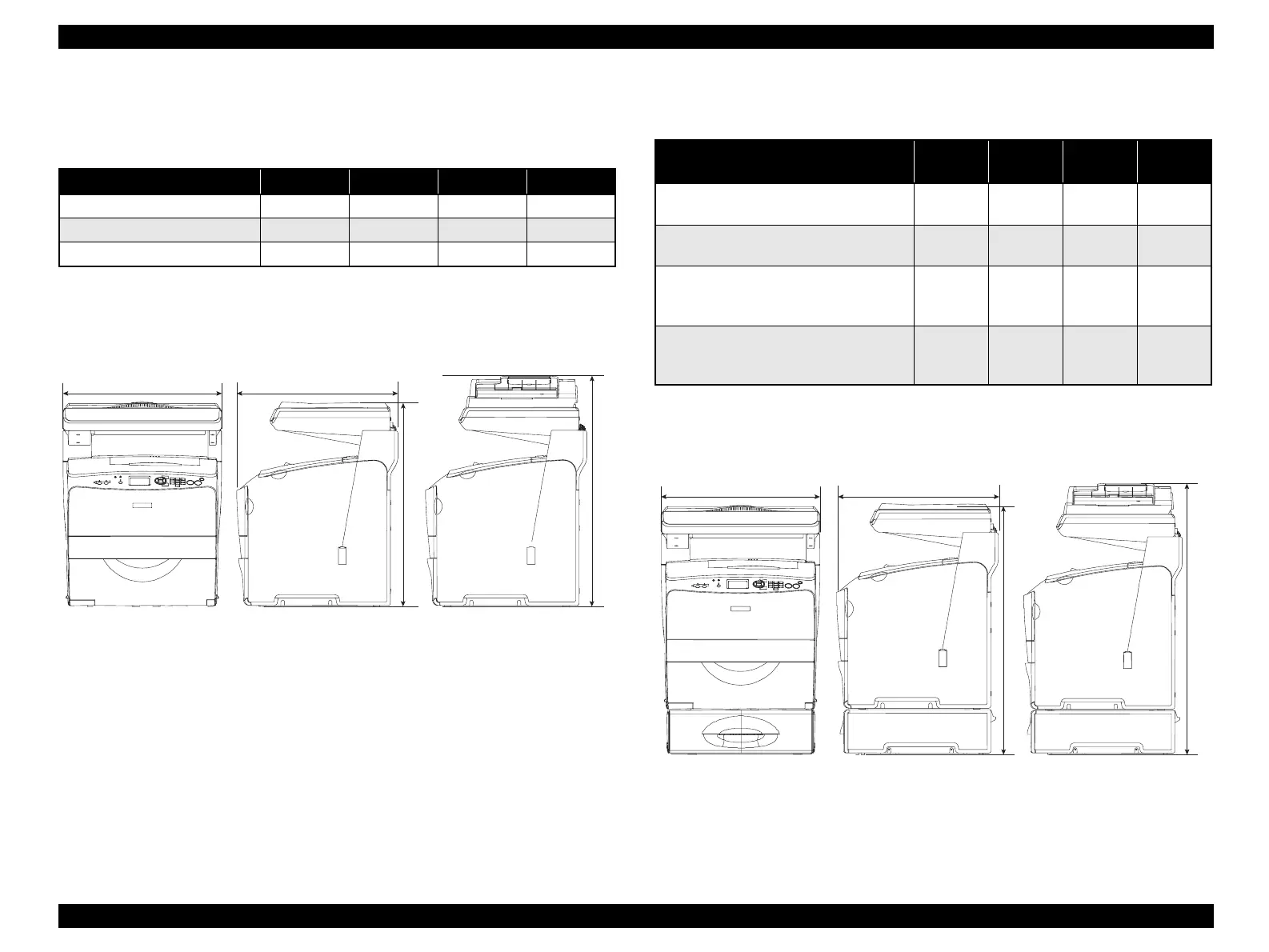

Figure 1-1. Dimensional Outline Drawing
 Dimensions and weight when the option cassette is installed
NOTE1: Manufacturing tolerance is ± 5 mm in dimensions and ± 0.5 kg in weight.
2: Consumables are not included in the main unit weight (controller is included).
*: ADF: Width becomes 494 mm when the LGL extension paper tray is opened.
Figure 1-2. Dimensional Outline Drawing (main unit + 500-sheet cassette)
Table 1-10. Dimensions and Weight
Product Width (mm) Depth (mm) Height (mm) Weight (kg)
Base model 460 467 593 30.9
FAX model 460
*
467 667 33.1
500-sheet cassette 440 446 130 8
467mm
593mm
460mm
667mm
Base model FAX model
Table 1-11. Dimensions and Weight with Option Cassette Installed
Combination and Condition
Width
(mm)
Depth
(mm)
Height
(mm)
Weight
(kg)
Main unit (Base model) +
500-sheet cassette
460 467 724 38.9
Main unit (FAX model) +
500-sheet cassette
460
*
467 798 41.1
Main unit when the scanner is open
(base model) +
500-sheet cassette
460
*
--- 979 38.9
Main unit when the scanner is open
(FAX model) +
500-sheet cassette
460
*
--- 983 41.1
460mm
798mm
467mm
Base model FAX model
724mm
