EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 359
4.2.4.9 SENSOR OHP
REMOVAL
1. Remove FRAME ASSY-PH. (p352)
2. Remove the screw (silver, with flange, tapping, 8 mm) fastening BRACKET-
SENSOR OHP to FRAME ASSY-PH.
3. Remove BRACKET-SENSOR OHP together with SENSOR OHP from FRAME
ASSY-PH.
4. Disconnect connector (P/J101) from SENSOR OHP.
5. Remove the screw (silver, tapping, 8 mm) fastening SENSOR OHP to
BRACKET-SENSOR OHP.
6. Remove SENSOR OHP from BRACKET-SENSOR OHP.
REINSTALLATION
1. Match the boss on SENSOR OHP with the hole on BRACKET-SENSOR OHP,
and attach SENSOR OHP to BRACKET-SENSOR OHP.
2. Fasten SENSOR OHP to BRACKET-SENSOR OHP with the screw (silver,
tapping, 8 mm).
3. Connect connector (P/J101) to SENSOR OHP.
4. Match the hole on BRACKET-SENSOR OHP with the boss on FRAME ASSY-
PH, and attach BRACKET-SENSOR OHP together with SENSOR OHP.
5. Fasten BRACKET-SENSOR OHP to FRAME ASSY-PH with the screw (silver,
with flange, tapping, 8 mm).
6. Attach FRAME ASSY-PH. (p352)

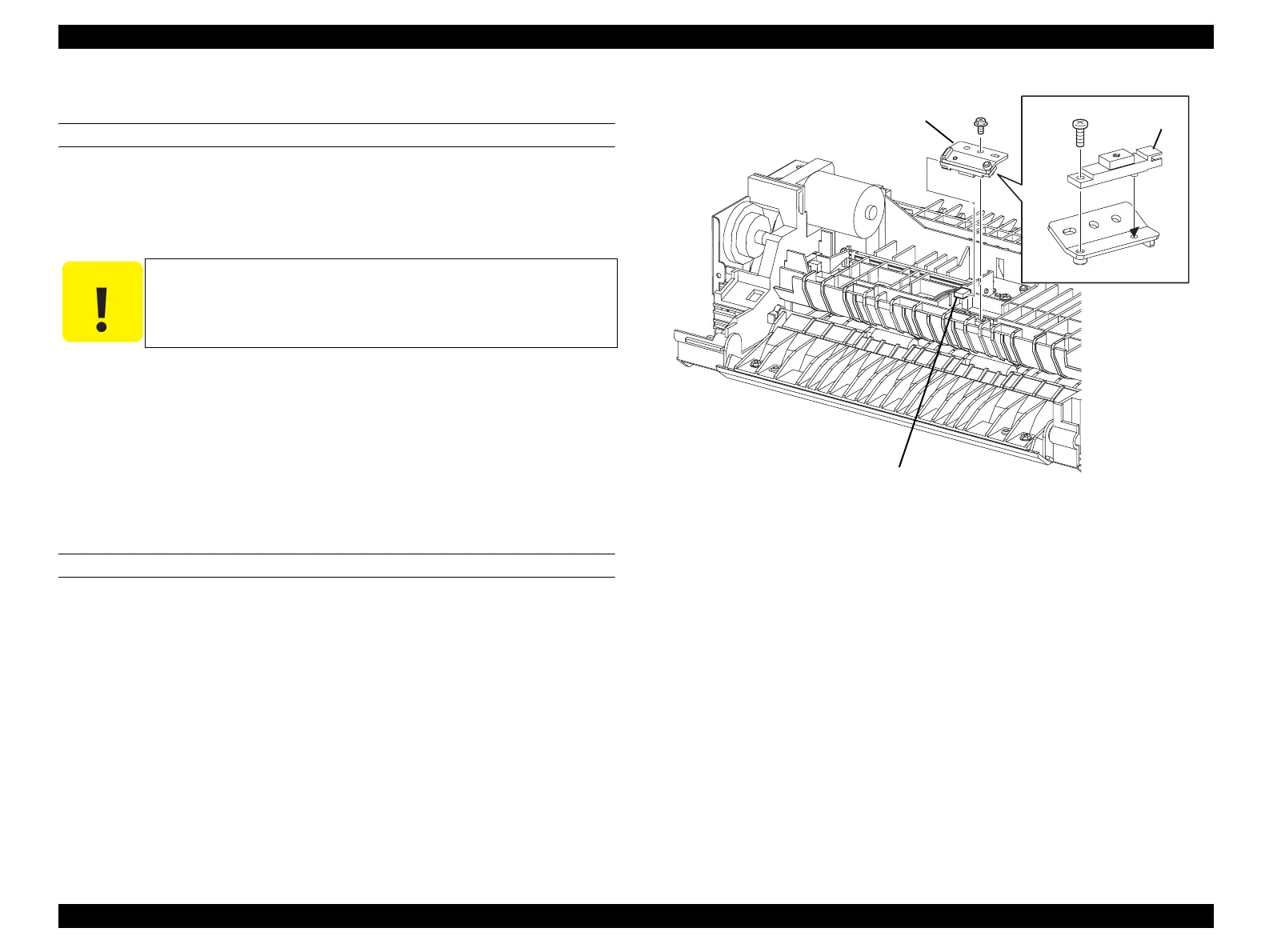

Figure 4-51. Removal of SENSOR OHP
C A U T I O N
When performing the following work, take care not to remove
FRAME ASSY-PH and BRACKET-SENSOR OHP too far as they
are connected by harnesses.
Leg_Sec03_062FA
3)
4)
2)
5)
6)
