EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 349
4.2.4 PH ASSY
4.2.4.1 COVER-PH
REMOVAL
1. Open COVER-PH.
2. Unhook the hooks on both the left and right sides fastening COVER-PH to
CHUTE ASSY-REAR, and remove COVER-PH.
REINSTALLATION
1. Match the two hooks under COVER-PH with CHUTE ASSY-REAR, attach
COVER-PH, and fasten with the hooks on both the left and right sides.
2. Close COVER-PH.

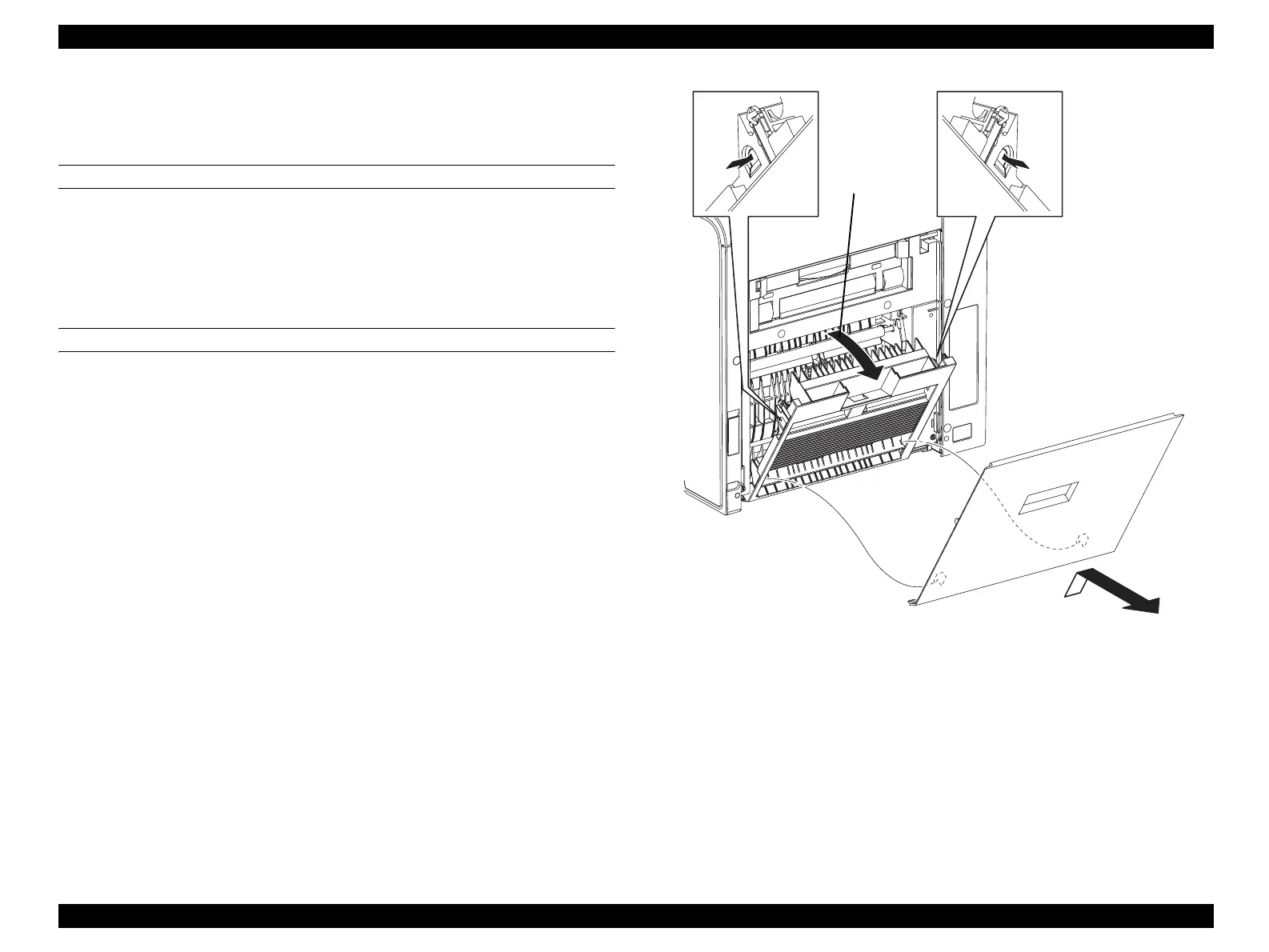

Figure 4-41. Removal of COVER-PH
Leg_Sec03_142EA
2)-1
2)-1
1)
2)-2
