EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 447
4.2.12.5 COVER FRONT CST 500
REMOVAL
1. Remove 500 PAPER CASSETTE ASSY. (p442)
2. Remove the 2 screws (silver, with flange, tapping, 8 mm) fastening COVER
FRONT CST 500 to 500 PAPER CASSETTE ASSY.
3. Unhook the hook on the base of COVER FRONT CST 500 using a small
screwdriver or a similar tool, pull down COVER FRONT CST 500 towards you to
release the three protrusions on the rear of COVER FRONT CST 500 from the
hole on the 500 PAPER CASSETTE ASSY, and remove COVER FRONT CST
500.
REINSTALLATION
1. Match the three protrusions on the rear of COVER FRONT CST 500 with the hole
on 500 PAPER CASSETTE ASSY, attach COVER FRONT CST 500, and fasten
the hook on the base of COVER FRONT CST 500.
2. Fasten COVER FRONT CST 500 to 500 PAPER CASSETTE ASSY with the 2
screws (silver, with flange, tapping, 8 mm).
3. Attach 500 PAPER CASSETTE ASSY. (p442)

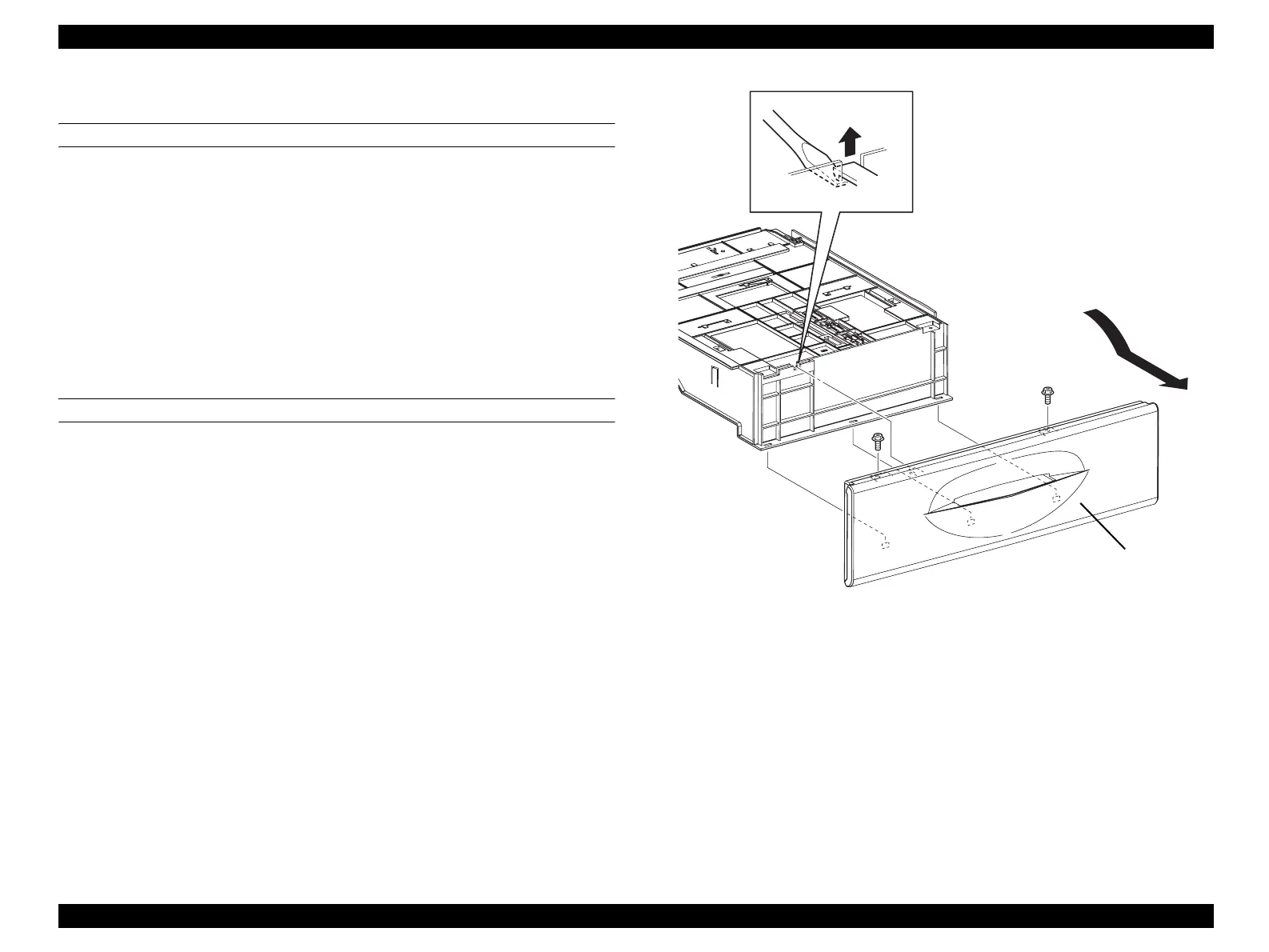

Figure 4-124. Removal of COVER FRONT CST 500
Leg_Sec03_018EA
3)-1
3)-2
2)
2)
3)-3
