DISASSEMBLY AND ASSEMBLY Printer 364
4.2.4.14 SWITCH-PH DOOR
REMOVAL
1. Remove FRAME ASSY-PH. (p352)
2. Disconnect connector (P/J100) from SWITCH-PH DOOR.
3. Open CHUTE ASSY-REAR.
4. Unhook the two hooks fastening SWITCH-PH DOOR to FRAME ASSY-PH, and
remove SWITCH-PH DOOR.
REINSTALLATION
1. Open CHUTE ASSY-REAR.
2. Match the hooks on SWITCH-PH DOOR with the attachment position, and attach
to FRAME ASSY-PH.
3. Connect connector (P/J100) to SWITCH-PH DOOR.
4. Attach FRAME ASSY-PH. (p352)

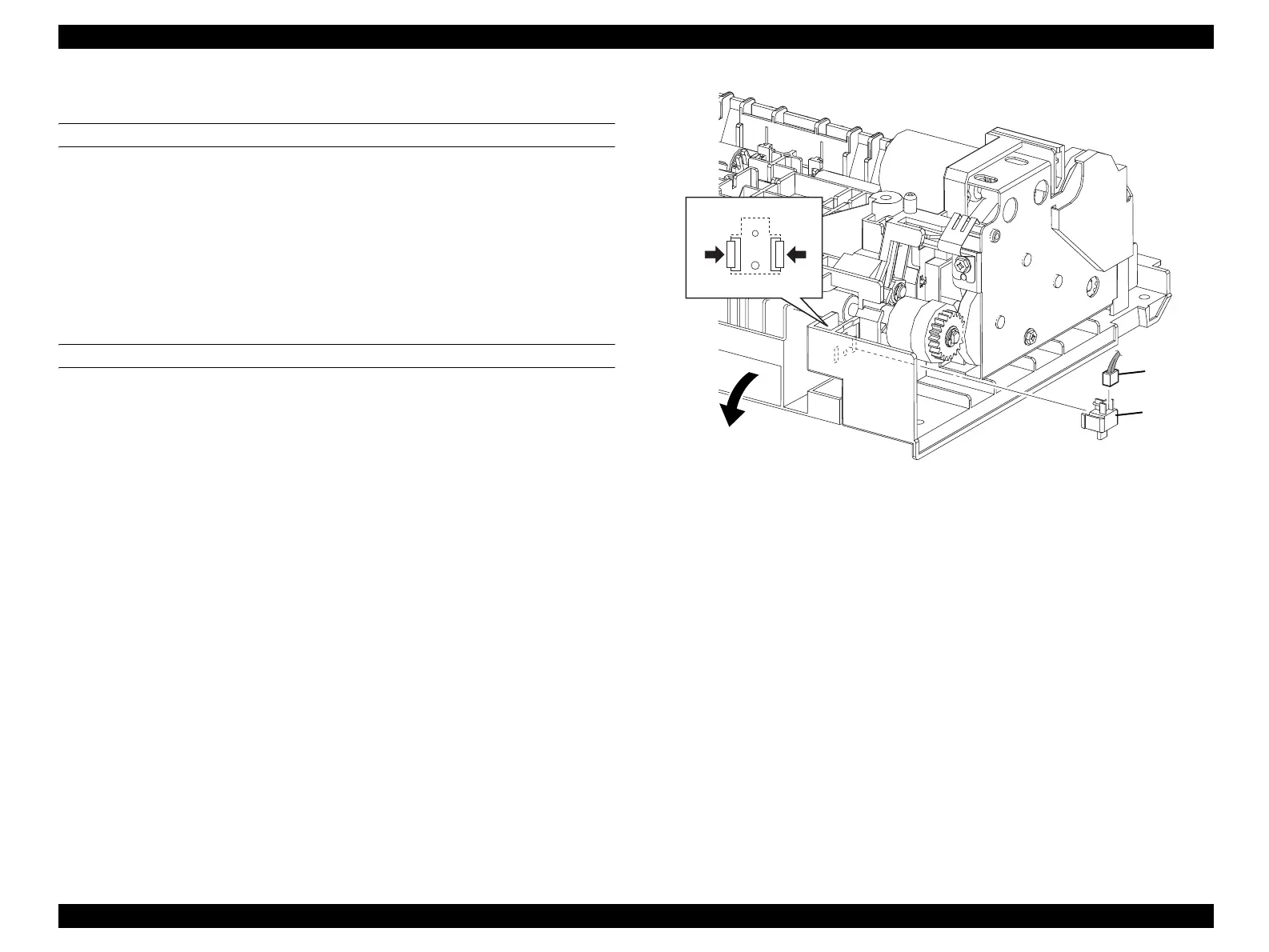

Figure 4-56. Removal of SWITCH-PH DOOR
Leg_Sec03_068FC
2)
4)-2
4)-1
3)
