EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 435
4.2.11.6 LV/HVPS
REMOVAL
1. Remove COVER ASSY LH. (p321)
2. Disconnect all connectors from the LV/HVPS.
3. Remove the 6 screws (silver, with flange, 6 mm) fastening LV/HVPS to the main
unit.
4. Remove the top part of LV/HVPS from the protrusion of the bracket attached to
the main unit while taking out the front side of LV/HVPS from between the main
unit and COVER FRONT L, and remove LV/HVPS.
REINSTALLATION
1. Put the top part of LV/HVPS inside the protrusion of the bracket while inserting
the front side of LV/HVPS in between the main unit frame and COVER FRONT L
to attach LV/HVPS.
2. Fasten LV/HVPS to the main unit with the 6 screws (silver, with flange, 6 mm).
3. Connect all connectors to the LV/HVPS.
4. Attach COVER ASSY LH. (p321)

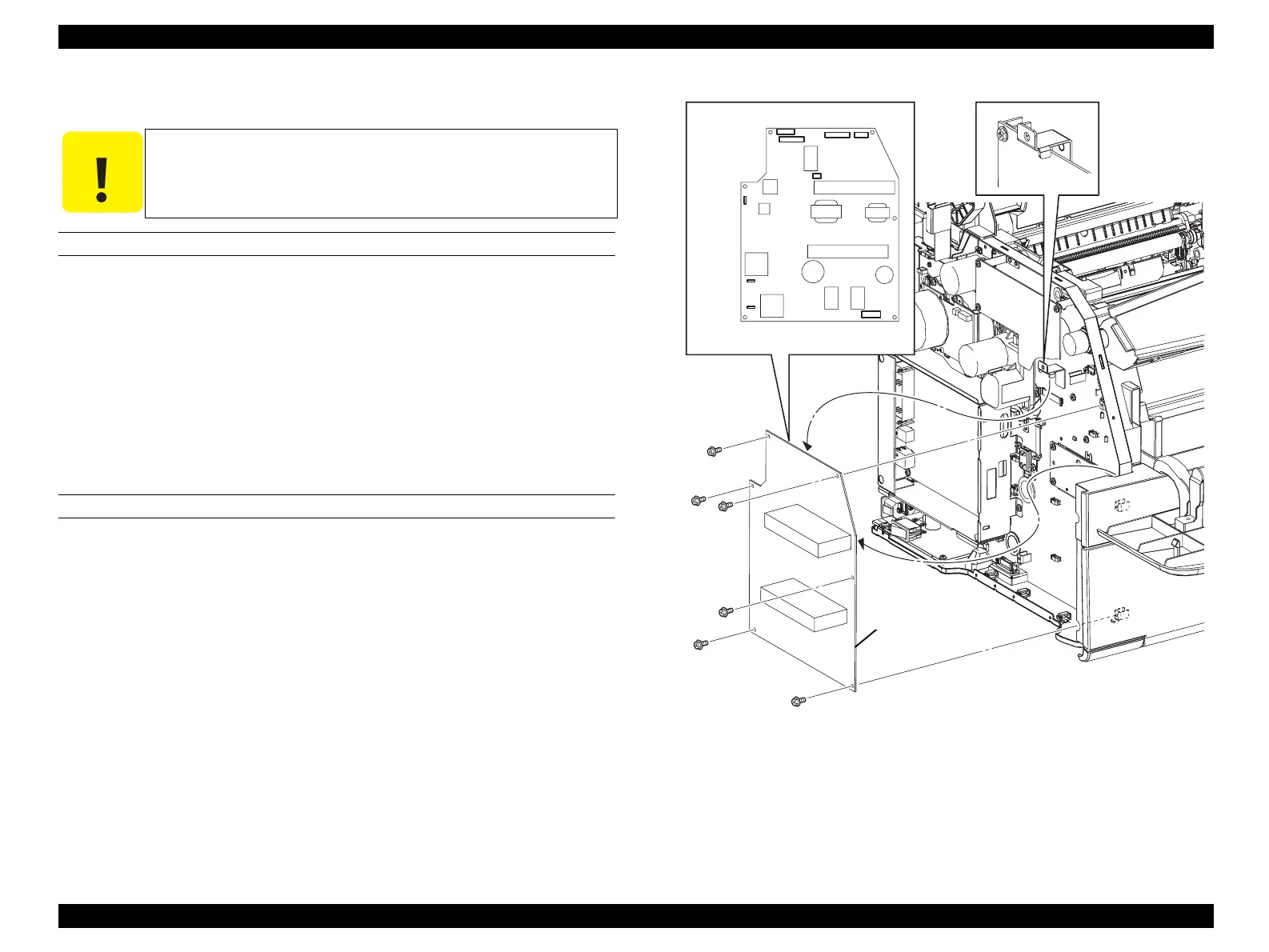

Figure 4-115. Removal of LV/HVPS
C A U T I O N
Avoid staticky places such as on a carpet especially when removing
or inserting a Board. Before starting work with the Board, make
sure to touch metallic portion of the printer connected to the earth
to let your body come out free of static electricity.
Leg_03_111RC
500
515
D
(1BTR)
A
(BCR)
C
(DEVE)
502 501
503
510
(Blue)
2)
3)
3)
3)
3)
3)
3)
4)-2
4)-1
To Next Page
