DISASSEMBLY AND ASSEMBLY Overview 304
 Scanner Section
4.1.4 Tools
Use only specified tools to avoid damaging the printer.

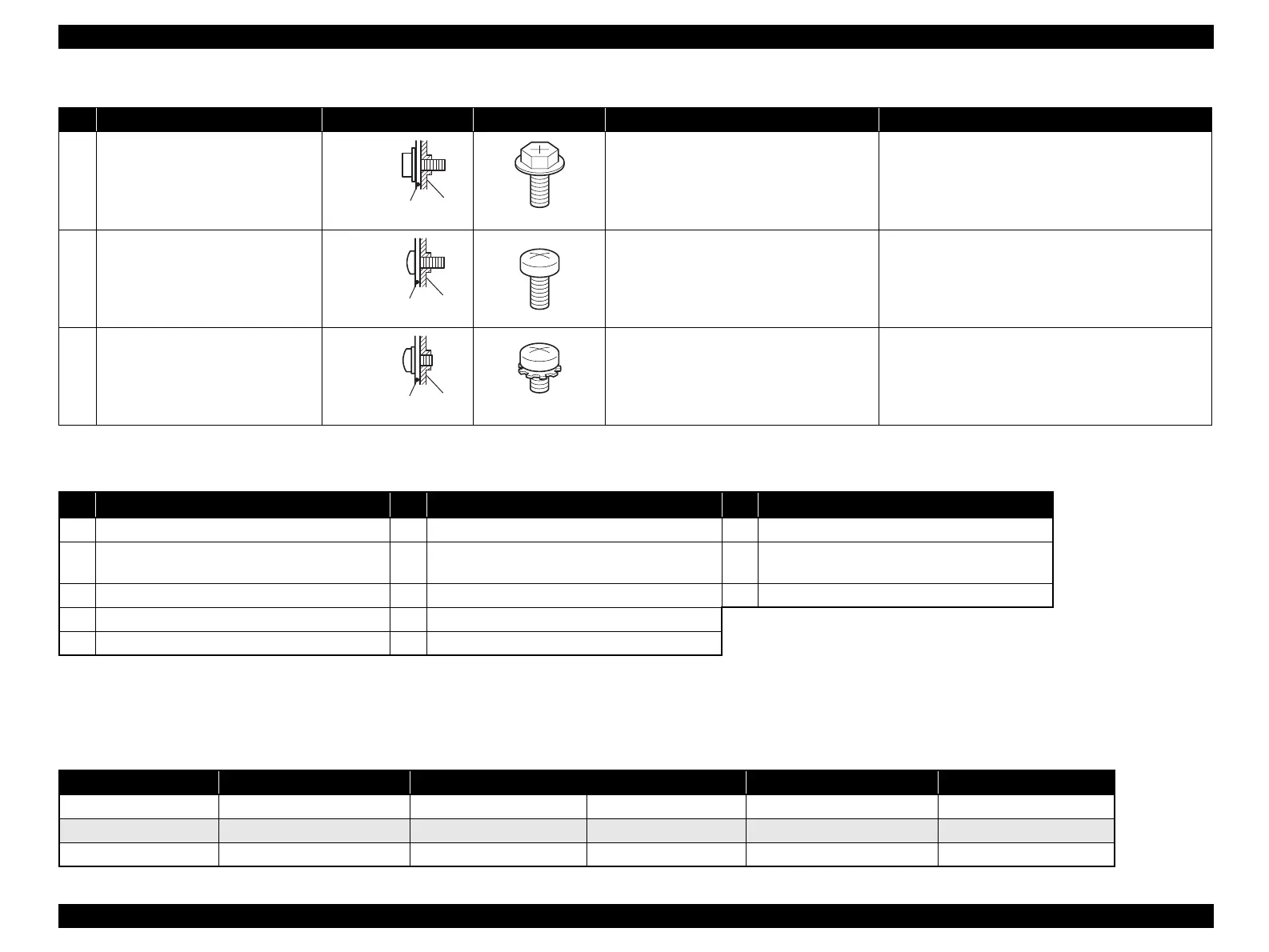

5 For metal plate Screw
Silver tapping with flange
Metal
plate
• Silver colored
• With flange
• Uniform screw diameter
6 For metal plate Screw
Silver
Metal
plate
• Silver colored
• Uniform screw diameter
7 For metal plate Screw
Silver with external toothed washer
Metal
plate
• Silver colored
• With external toothed washer
• Uniform screw diameter
Table 4-2. List of screws (Scanner, ADF)
No. Type No. Type No. Type
1 M3x6mm, S-type, A-head 6 M3x8mm, S-type, B-head 11 M2x10mm, G-type, P-head
2 M3x8mm, P-type, A-head 7 M3x6mm, G-type, C-head,
W/spring washer, W/ø5 flat washer
12 M3x12mm, P-type, P-head
3 M3x8mm, S-type, A-head 8 M3x10mm, B-type, F-head 13 M1.7x6mm, B-Type, F-head
4 M3x8mm, P-type, B-head 9 M2x8mm, B-type, P-head
5 M3x10mm, P-type, B-head 10 M3x6mm, B-type, P-head
Name Commercial Availability Code Name Commercial Availability Code
Phillips screwdriver No.1 Available B743800100 Cutting pliers Available B740400100
Phillips screwdriver No.2 Available B743800500 Tweezers Available ---
Slotted screwdriver Available B743000100 E-Ring holder Available ---
Table 4-1. List of screws (Printer)
No. Type Application Shape How to Recognize Screw Type Cautions
Part,
etc.
Metal
plate
Part,
etc.
Metal
plate
Part,
etc.
Metal
plate
