LCD DISPLAY AFTER THE SYSTEM START-UP
Moves to print mode initial screen after displaying start-up screen for 2 seconds.

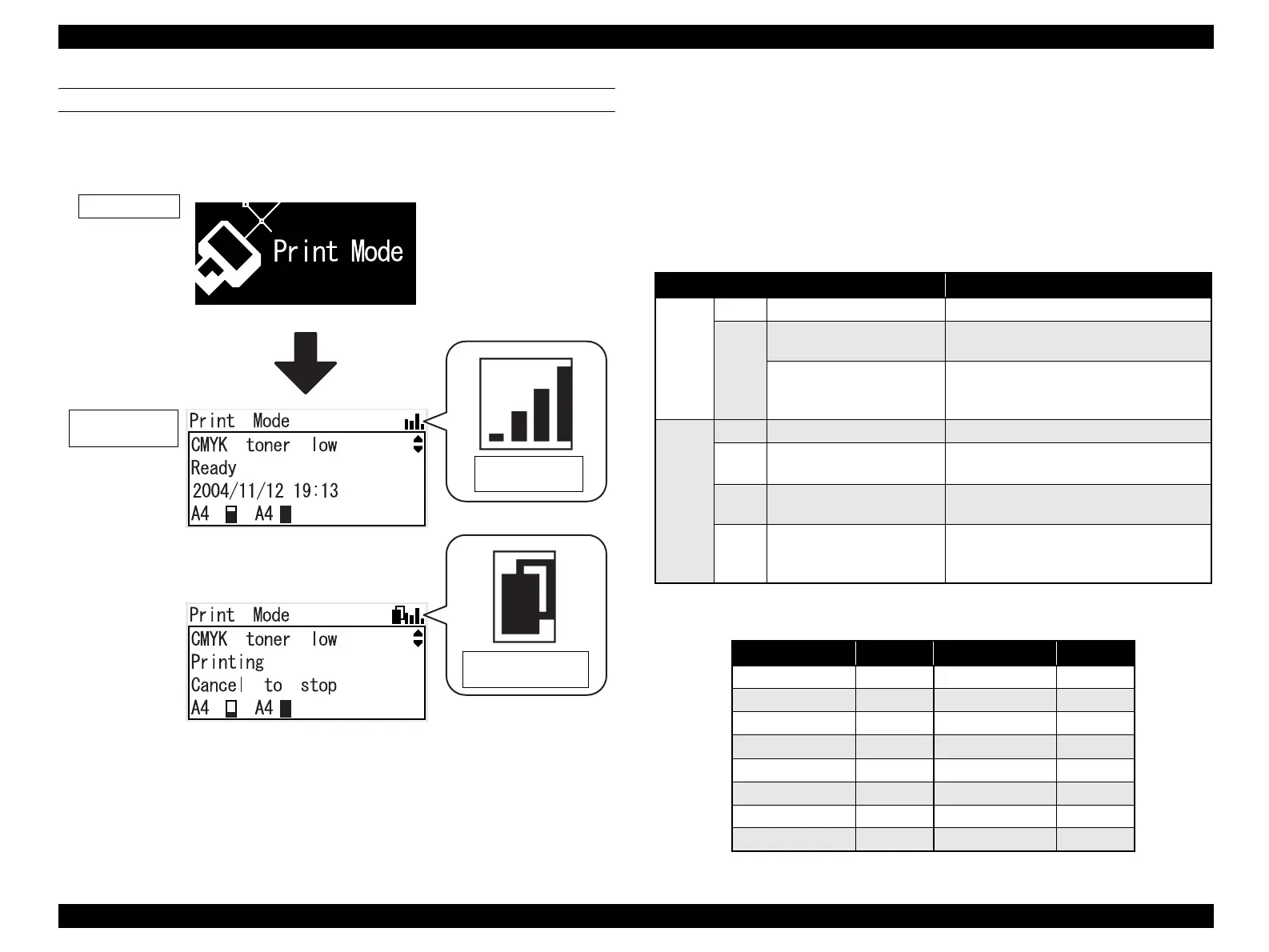

Figure 1-10. LCD Display after the System Start-up
 Contents of the Initial Screen
îš„ Top line: Status, Guidance
Upper right: toner remaining amount, fax reception data accumulation icon
îš„ Four lines from the bottom: Messages appears as follows
1st line : Warning message
2nd line : Operation, status message
3rd line : Operator guidance, time display
4th line : Paper size, paper remaining amount
îš„ Size of paper loaded on the paper feeder is displayed with two or three letters
as shown in the table below.
 Alert screen
An alert screen displays warning, guidance or any other message informing
restricted function.
Toner remaining
amount icon
Fax reception data
accumulation icon
After 2 Seconds
Start-up screen
Print mode initial
screen
Display Description
Top line Left status, guidance Displays mode and status
Right Toner remaining amount icon Displays 11 levels to indicate 0 to 100 % by
10% in the order of K, C, M, and Y.
Fax reception data
accumulation icon
Only displayed when there are received fax
jobs remaining unprinted in the memory. It is
not displayed for accumulated sending jobs.
Four
lines
from the
bottom
1st line Warning message Only displayed when warnings occurred.
2nd
line
Operation, status messages Statuses such as ready-to-print, unable to
print, or sleep mode are displayed.
3rd line Operator guidance, time
display
Only displayed when the time is set.
4th line Paper size, paper remaining
amount
Indicates four levels (0, 33, 66, 100 %) in the
order of MP tray and the cassette.
Only displayed when they are installed.
Paper size: Program Paper size: Program
A4 A4 Executive EXE
A5 A5 F4 F4
B5 B5 Monarch MON
Letter LT C10 C10
Half Letter HLT DL DL
Legal LGL C5 C5
Government Letter GLT C6 C6
Government Legal GLG ISO B5 IB5
