Epson AcuLaser CX11 - Technical Explanation of Print Process; Charging

EPSON AcuLaser CX11/CX11F Revision B
OPERATING PRINCIPLES Printer Section Operating Principle 86
2.2.1.3 Technical Explanation of Print Process
CHARGING
At the "Charging" process, BCR (Bias Charge Roll) applies a uniform negative
potential to the drum which rotates at a fixed speed.
 BCR keeps contact with the drum and moves together with it.
BCR is a conductive roller, that is negatively charged by HVPS, applies a negative
charge to the drum.
The drum surface is uniformly charged to a negative potential with DC bias
voltage.
 The drum is made of conductive material (aluminum cylinder) coated with a
photosensitive material which becomes insulating material in darkness and
becomes conductive when it is subjected to light.

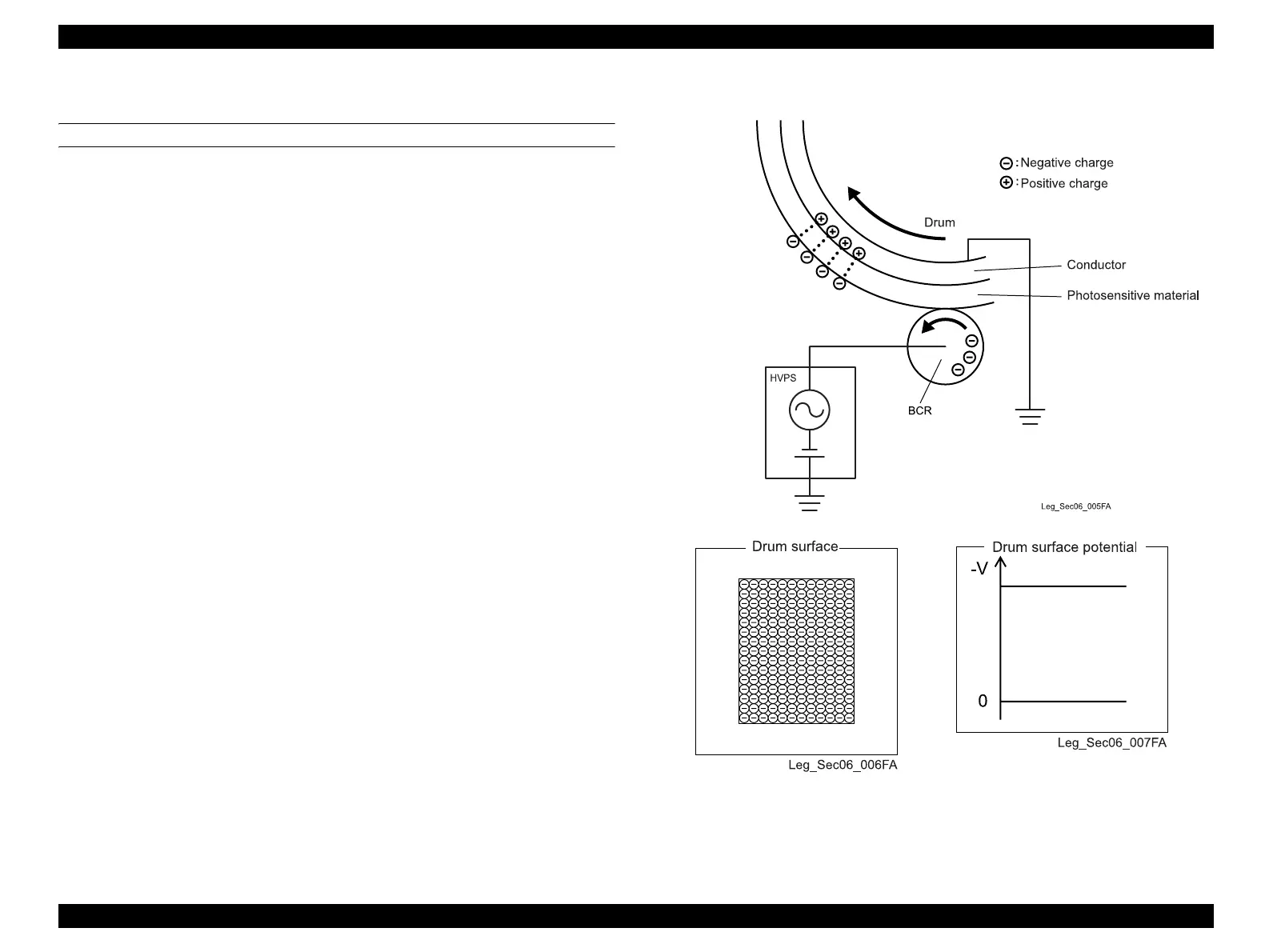

Figure 2-6. Charging Process
